7.5 Cu feet Vacuum Degassing Oven With Vacuum Pump For Lithium Battery Electrode Baking
SPECIFICATIONS
1 The TOB-DZF-6210 Vacuum Degassing Ovenis a larger volume designed vacuum oven for industrial use. It has a200 litres about 7.5 cubic feet volume.
2 The TOB-DZF-6210 Vacuum Degassing Oven for lithium battery field mainly used for lithium battery materials, electrode and battery core vacuum drying For production line.
3 Use Vacuum Oven for material heating drying under vacuum states has advantages :
3.1 Can reduce the drying temperature
3.2 Avoid some objects heating to oxidation
3.3 Avoid heating air to kill living cells
3.4 No dust damage
|
Model
|
Vacuum Degassing Oven TOB-DZF-6210
|
|
Source voltage
|
110V/AC or 220V/AC +/-10% selectable
|
|
Power
|
4500W
|
|
Warranty
|
One Year Limited Manufacture Warranty with Life Time Support
|
|
Temperature range
|
RT+10-250℃
|
|
Temperature fluctuation
|
±0.5℃
|
|
Vacuum degree
|
-0.1MPa, with Medical vacuum gauge pointer type
|
|
Inner box size(W*D*H)
|
560*640*600mm
|
|
Dimension(L*W*H)
|
720*820*1750mm
|
|
Temperature controller
|
1 High precision microcomputer temperature controller, accurate temperature control
2 Working temperature can be set and working time can be set for 0-9999min.
3 When time reach, sound alarm, and when any error, also alarm. function
|
|
Heating mode
|
Peripheral radiant heating.Electric heating tube is located in the tank
of the lateral walls, close to the tank
|
|
Inner box material
|
304 stainless steel
|
|
Outside shell material
|
High quality cold-rolled steel plate electrostatic spray
|
|
Box door
|
Toughened hulletproof double glass door
|
|
Safety device
|
With over temperature protection, grounding etc
|
|
Shelf
|
3pcs stainless steel mesh shelves
|
|
Vacuum pump
|
2XZ-4 Rotary vane vacuum pump, Vacuum flow 4L/S in bottom
|

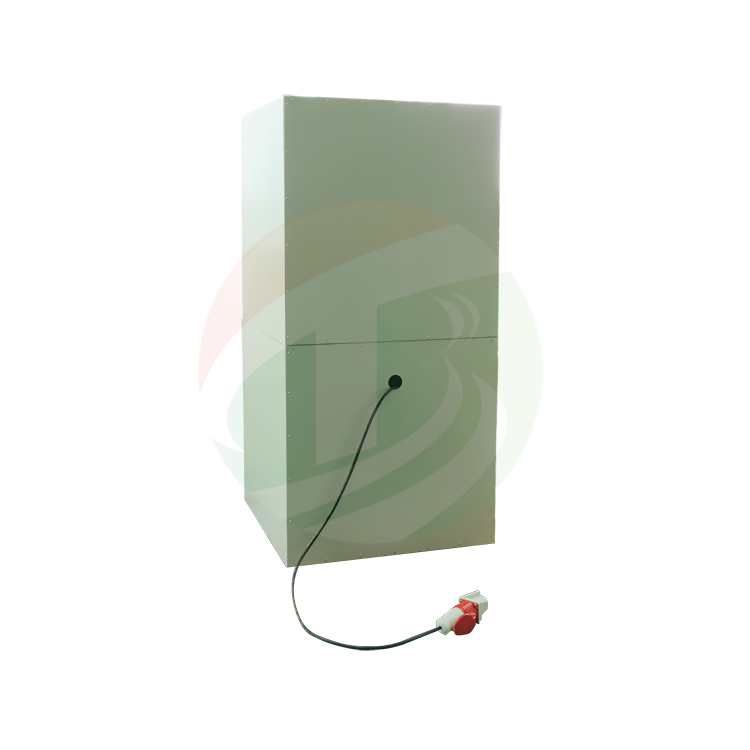

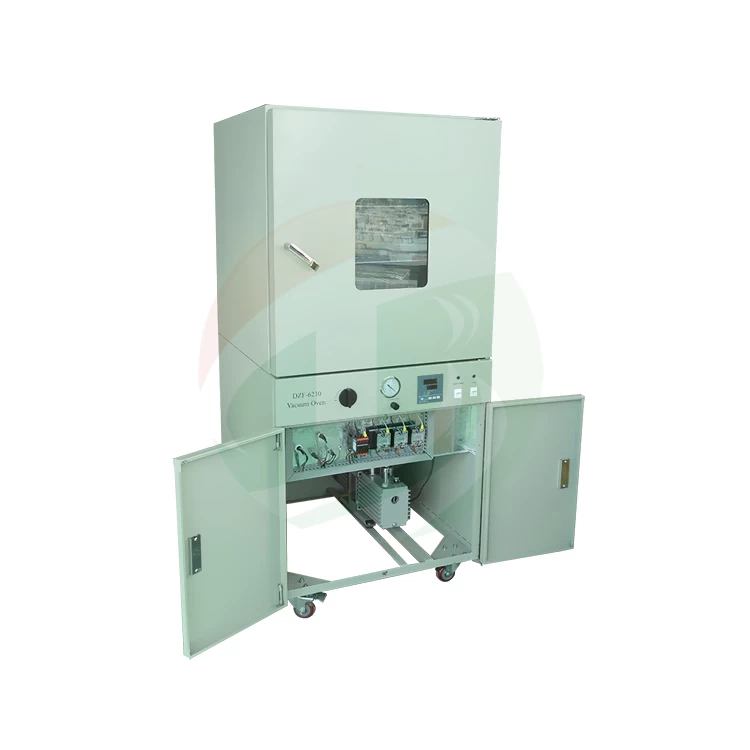

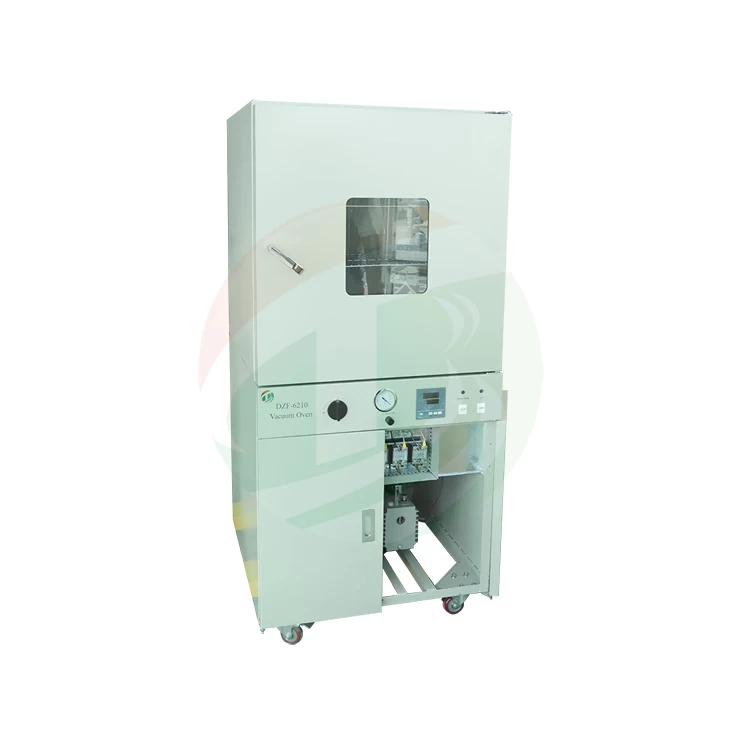

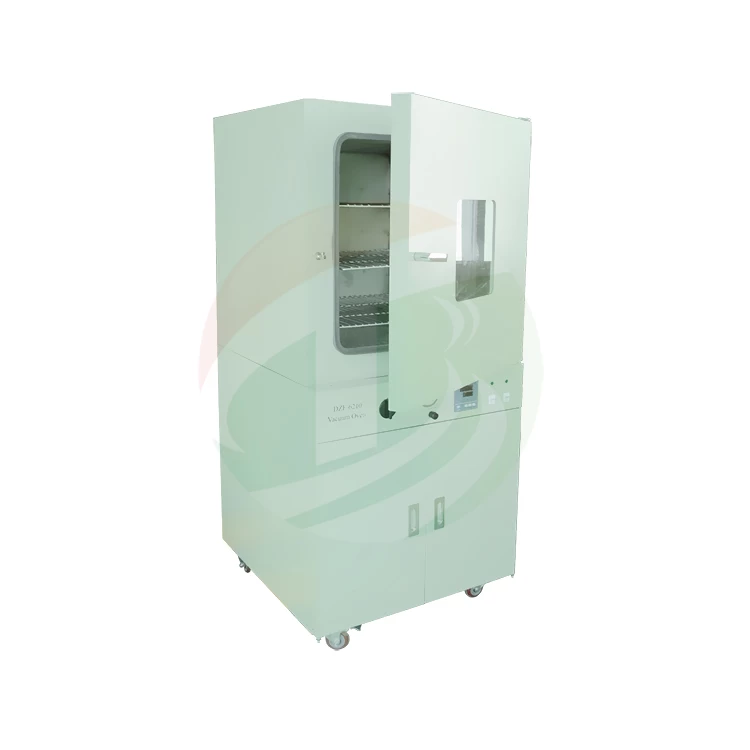

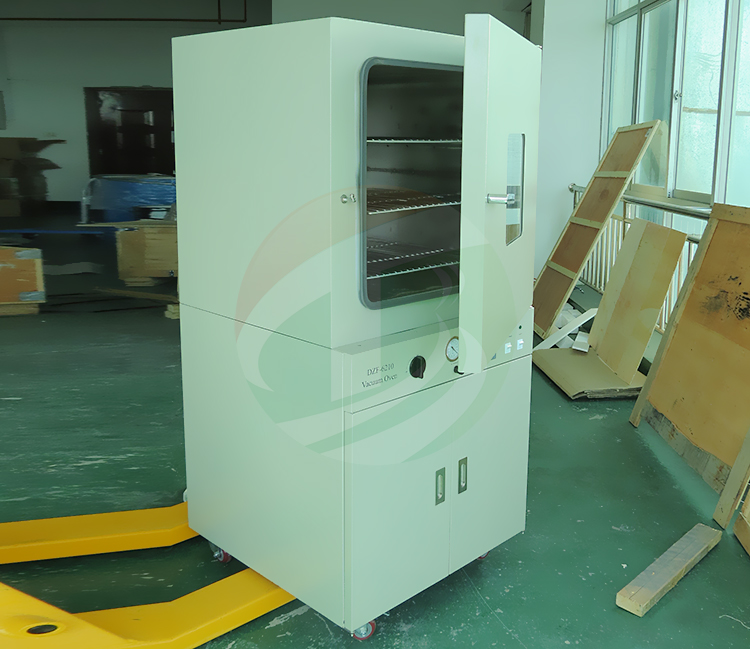

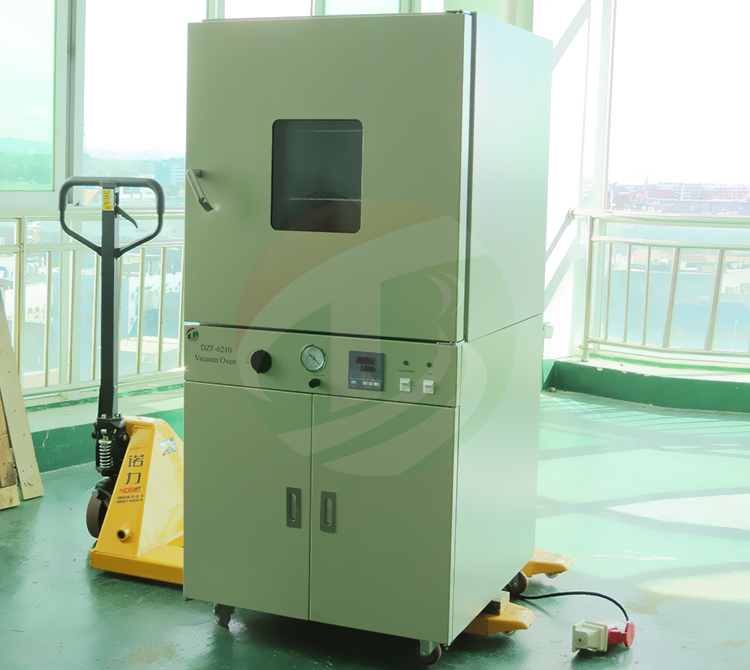

Product display

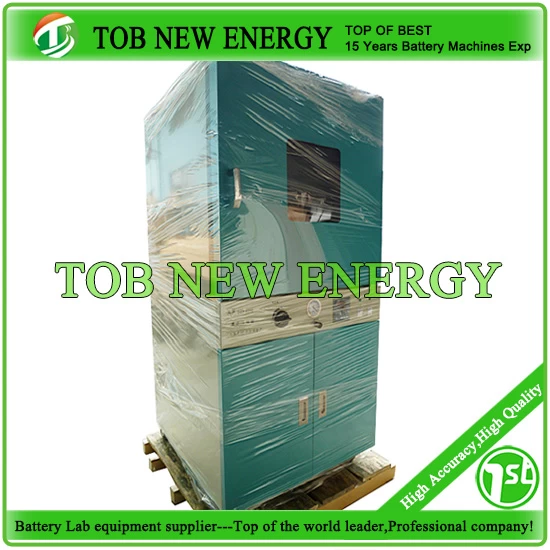

Packing
