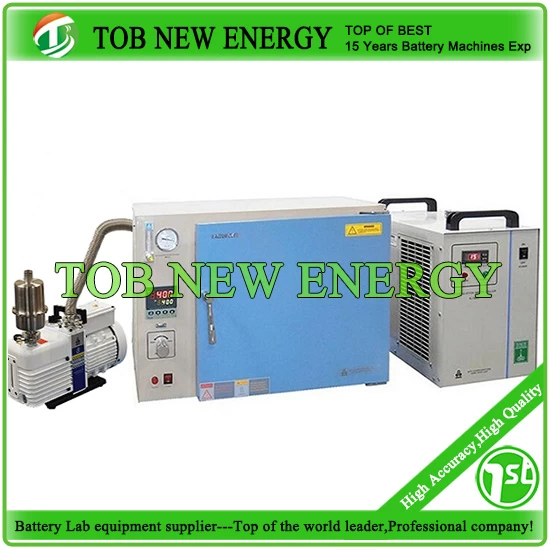

25L 500 Degree High Temperature Vacuum Oven With Gas Flow-meter, Chiller & Vacuum System
SPECIFICATIONS
The DZF-6020-HT series vacuum oven is CE certified vacuum oven with 30 segments precise temperature controller upto 500°C. Radiant wall heating system is employed to provide optional temperature uniformity. Its 25 liters vacuumable SS chamber allows adequate space for drying, curing, vacuum embedding, and plating applications.
|

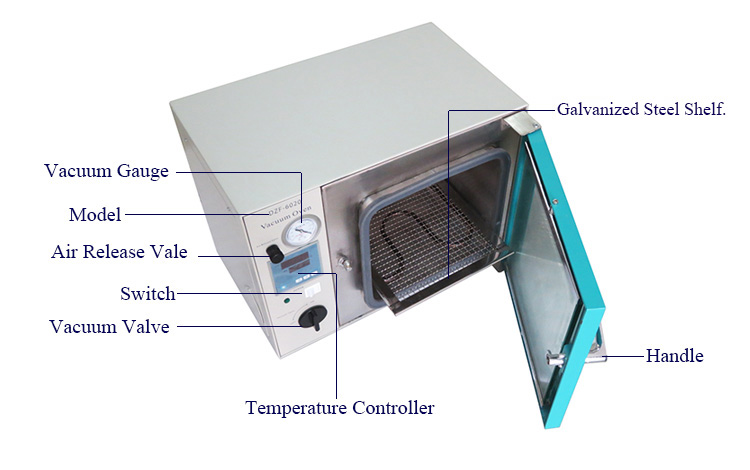

Chamber and Door
|
The chamber is structured by Stainless Steel (1Cr18Ni9Ti)
Inner Chamber size: 300mm(L) x 300mm(W) x 280mm(H);
(12 x 12 x 11, 25 Liter)
Aluminium Plate with thermal insulation.
A good vacuum seal is achieved by silicone door gasket and positive
latch door.
2 stainless steel shelves are included to facilitate processing efficiency.
|
|
Working Voltage
|
110 or 240VAC (20Amps circuit breaker is required)
|
|
Power Consumption
|
1400 W
|
|
Heating Rates
|
2C/min
|
|
Temperature Controller
|
30 segments programmable temp. controller
Built-in over-temperature protection, PID precise temperature control
Temperature Stability: +/-1°C
|
|
Float Meter
|
200~2000ml/min
|
|
Dimensions
|
700mm(L) x 500mm(W) x 525mm(H)
|
|
Shipping Weight Dimensions
|
48"(L) x 40"(W) x 31"(H);
310 Lbs after crating
|
|
Warranty
|
One year limited warranty with life time support
|
PACKAGE
PACKAGE AND SHIPPING
|
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
|
SERVICES
|
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.
|
