3000W Battery Welding Machine For Electrode Sheets 10-30 Layers

3000W Ultrasonic Metal Battery Welding Machine For Electrode Sheets 10-30 Layers



3000W Battery Welding Machine For Stacked Electrode Sheets 10-30 Layers with Tab Welding


SPECIFICATIONS




TOB-USW3000Wultrasonic metal welding machineis Designed for Lithiumbattery tab weldingwith touch-screen controller. It is designed for welding stacked electrode sheets (Copper & Aluminum) and tab onto current collectors to prepare Li-ion pouch cells in R&D laboratories and production line.

The 2600w Battery Welding Machine can weld stacked electrode with 10-30layers aluminum foil or copper foil with Al tab and Nickel tab, If with bigger battery with layer up to 30layers, can choose the TOB-USW-3000W model, and If need to weld up to 60 layers, please choose TOB-USW-4500W model.


Model

Battery Welding Machine    TOB-USW-3000W

Type

Ultrasonic spot welding machine

Welding ability:

1 10-30 sheets 0.09-0.012mm copper foil + 0.1-0.3mm Ni or Nickel-clad copper tab welding.

  Welding point : 4*6, 4*8, 4*10, 4*12 mm customized

2 10-30 sheets 0.09-0.012mm aluminum foil + 0.1-0.3mm Al tab welding.

  Welding point : 4*6, 4*8, 4*10, 4*12 mm customized

3 0.2mm Al belt +0.2mm Ni belt or Nickel-clad copper wrapping welding.

  Welding point : 4*6, 4*8, 4*10, 4*12mm customized

4 2-4 sheets 0.2mm Al tab or 2-4 sheets 0.2mm Ni tab weld.

  Welding point : 4*6, 4*12mm customized

Frequency

24KHZ

Max output power

3000W

Control mode

CPU control

Air supply

≥0.5MPa

Voltage source

110/ 220V 50HZ/60HZ

Humidity

≤48%

Temperature

≤45℃

Warranty

One year limited warranty with lifetime support


PRODUCT DISPLAY



 Ultrasonic spot welding machine

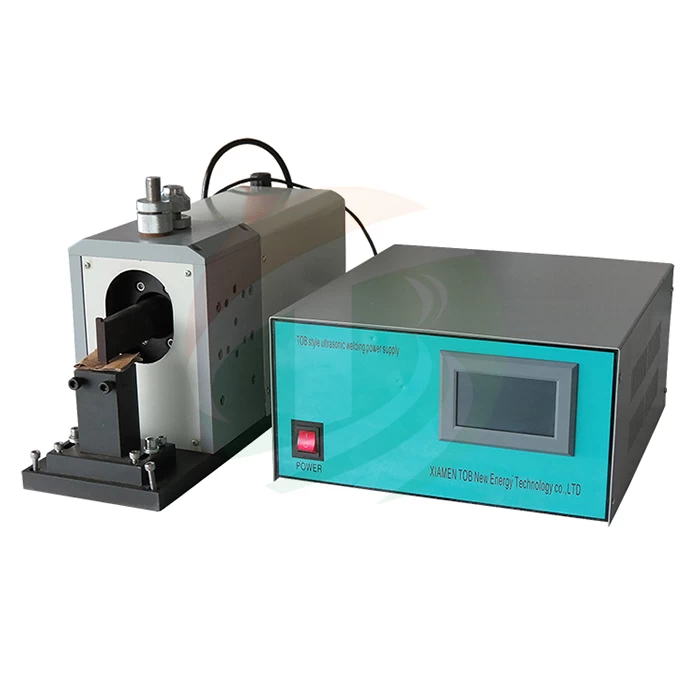

Ultrasonic spot welding machine

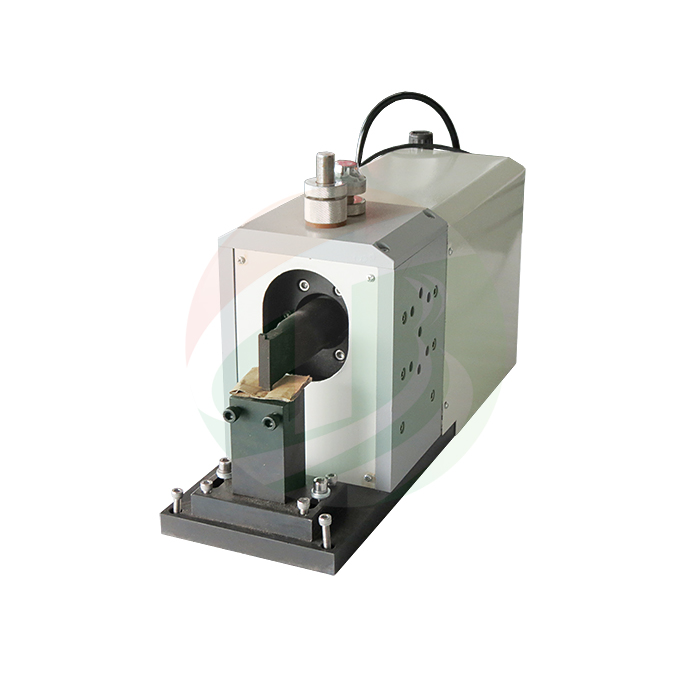

Weld head area can be customized according to customer's requirements

Ultrasonic spot welding machine weld area

Ni Tab welding with Multi-layers copper foil and Al Tab welding with multi-layers aluminum foil

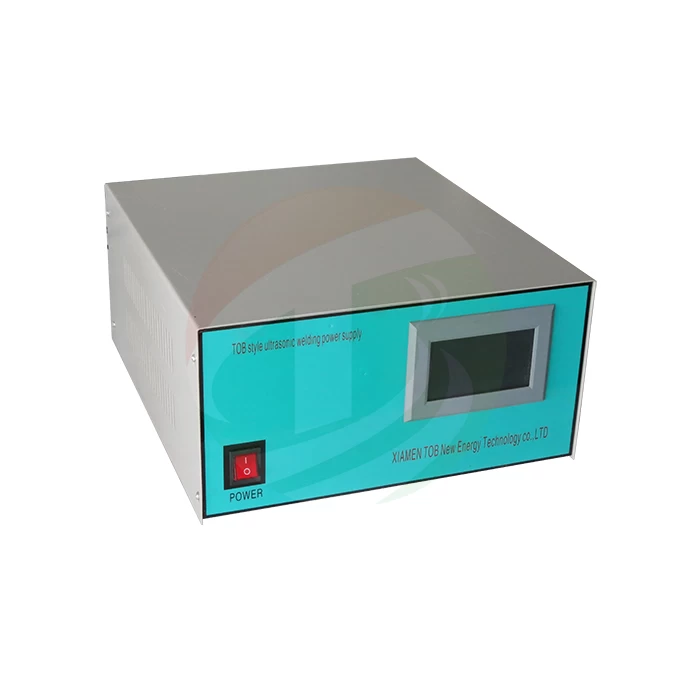

Touch-screen controller with setting parameters

Welding machine touch-screen
