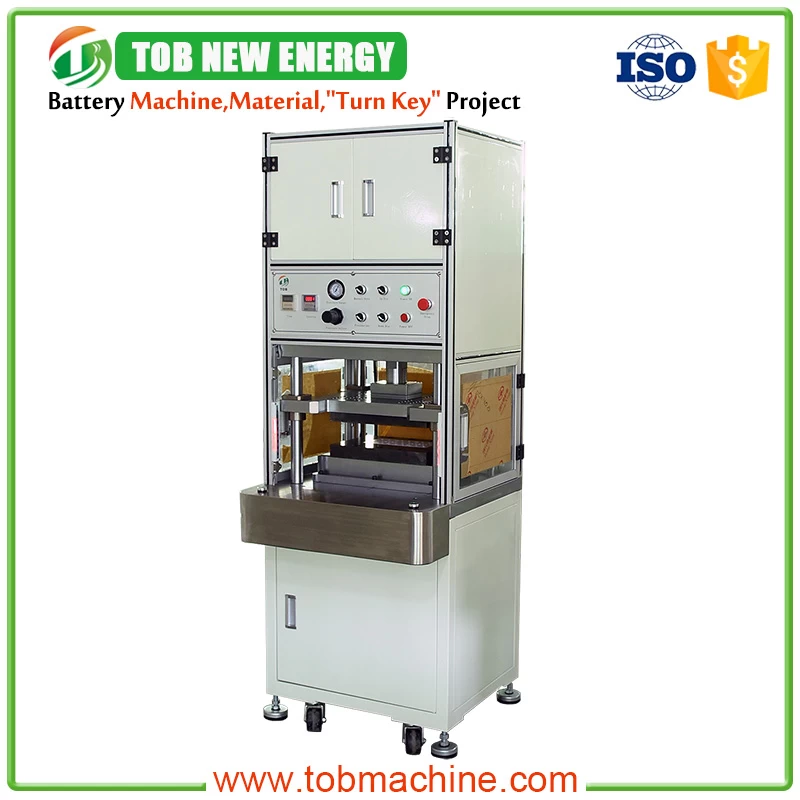

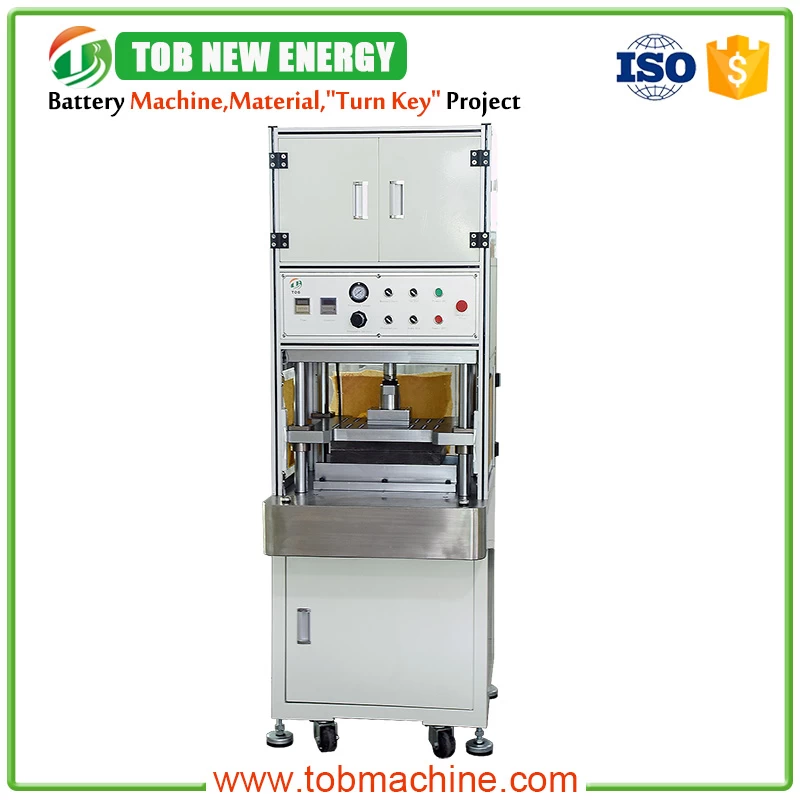

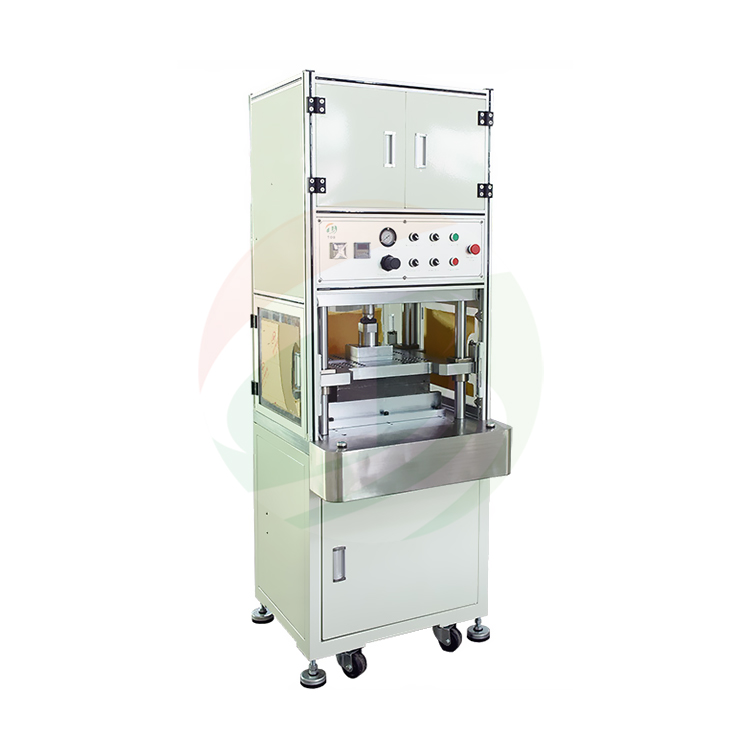

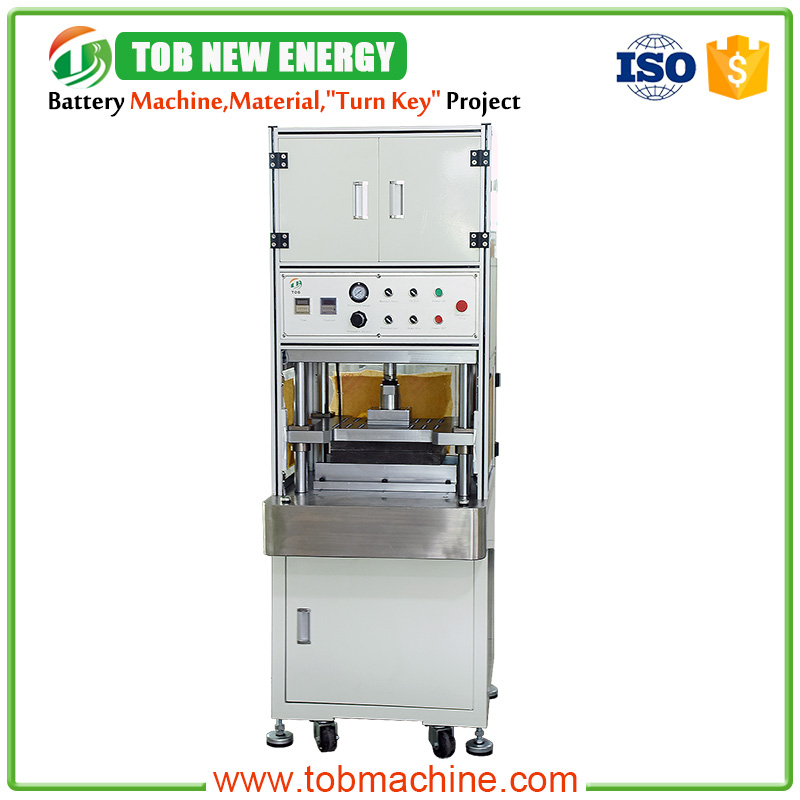

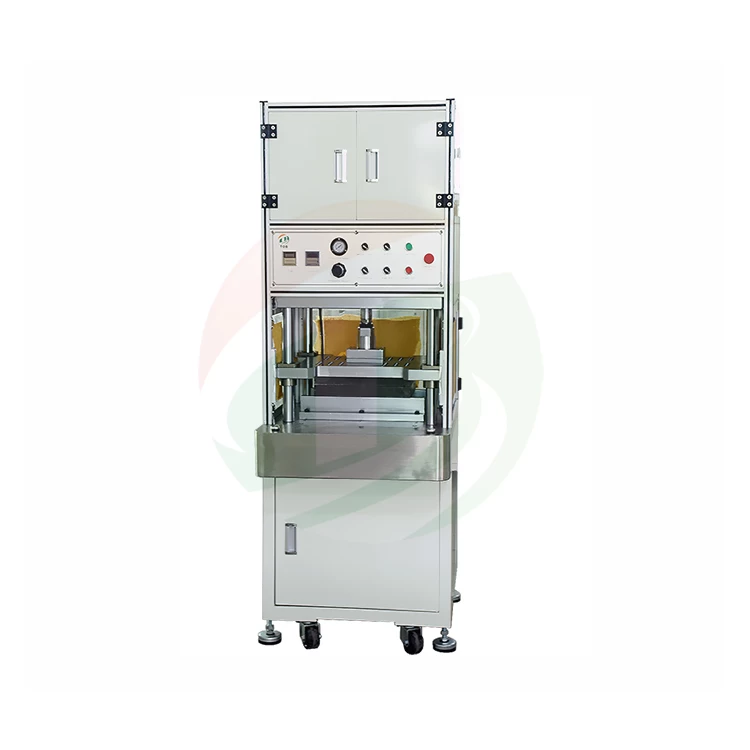

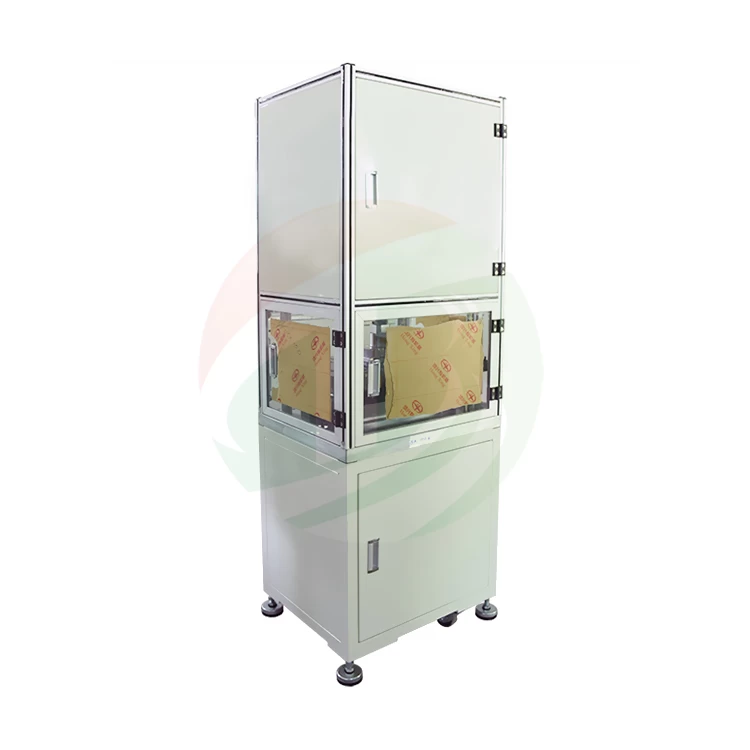

400*300mm Large Size Manual Pouch Cell Case Forming For Lithium Battery Making
SPECIFICATIONS
1 TOB-SCX-400 Manualpouch cell case forming machineis used for lithium polymer battery pouch cell cup forming in the production line of making pouch cell batteries.
2 The machine is used to prepare polymer cases made of Aluminum Laminated Films.
3 The machine can customize battery pouch within 400*300mm size according to customer’s requirements.
|
Model
|
Manual PouchCellCaseFormingMachine
TOB-SCX-400
|
|
Source voltage
|
AC 220V/110V, 50/60HZ
|
|
Power
|
500W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Suitable aluminum film thickness
|
0.1-0.2mm
|
|
Suitable aluminum film size
|
400*300mm(L*W), customized
|
|
Output
|
200-500EA/H
|
|
Output pressure
|
0-5T, Adjustable
|
|
Air source
|
0.5-0.7MPa
|
|
Mold materials
|
S136 Die steel
|
|
Dimension(L*W*H)
|
700*650*1900mm
|
|
Weight
|
About 500kg
|
|
Package Dimension(L*W*H)
|
800*750*2080mm
|
|
Package Weight
|
600kg
|

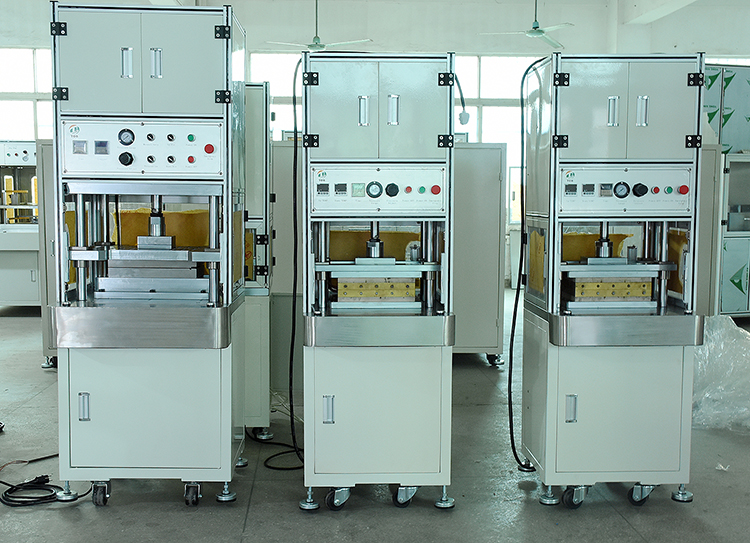

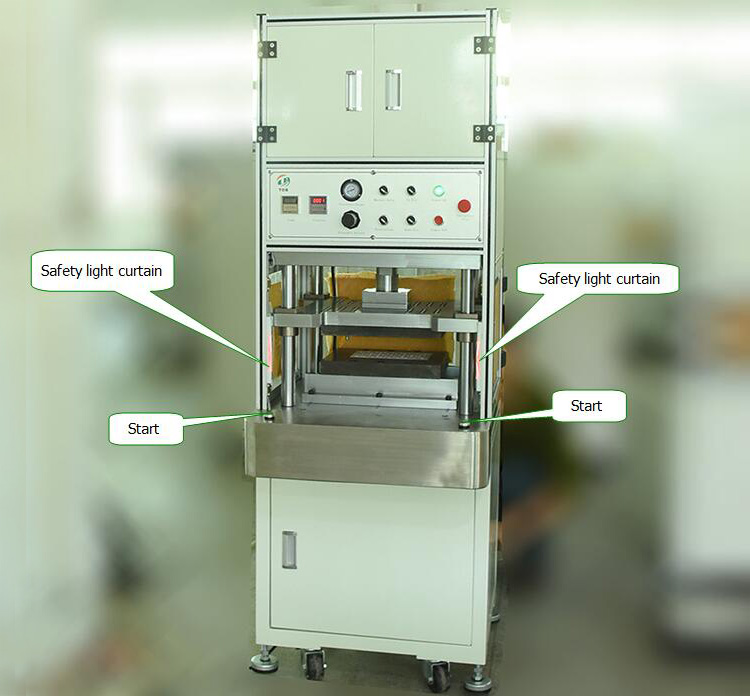

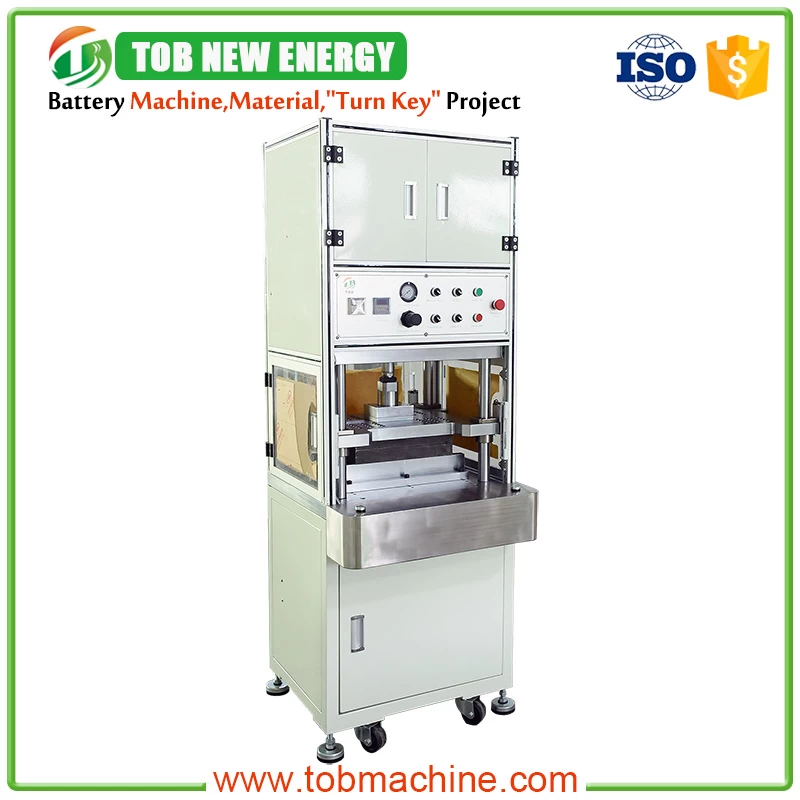

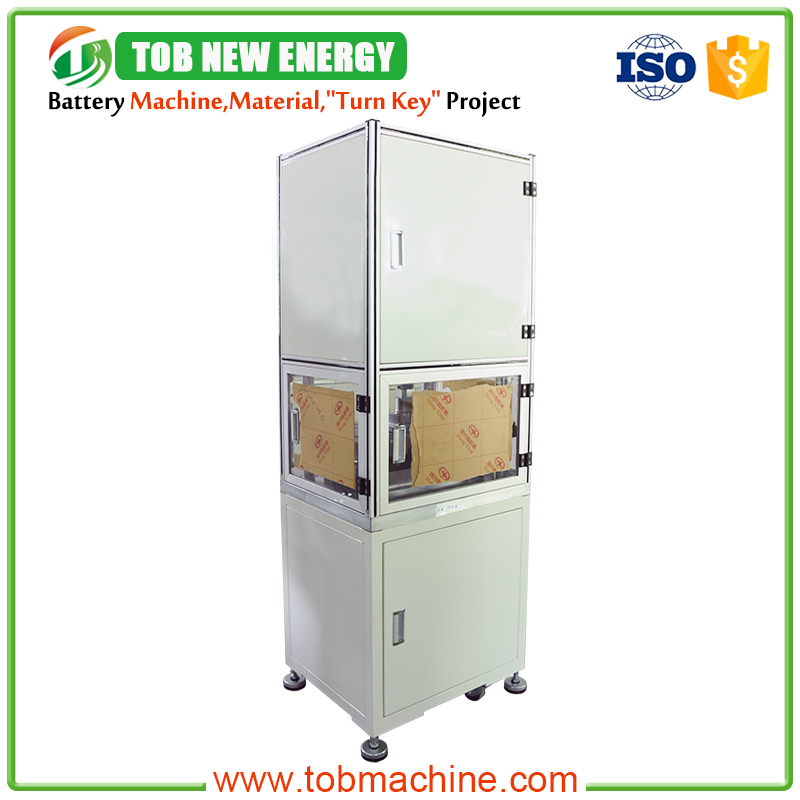

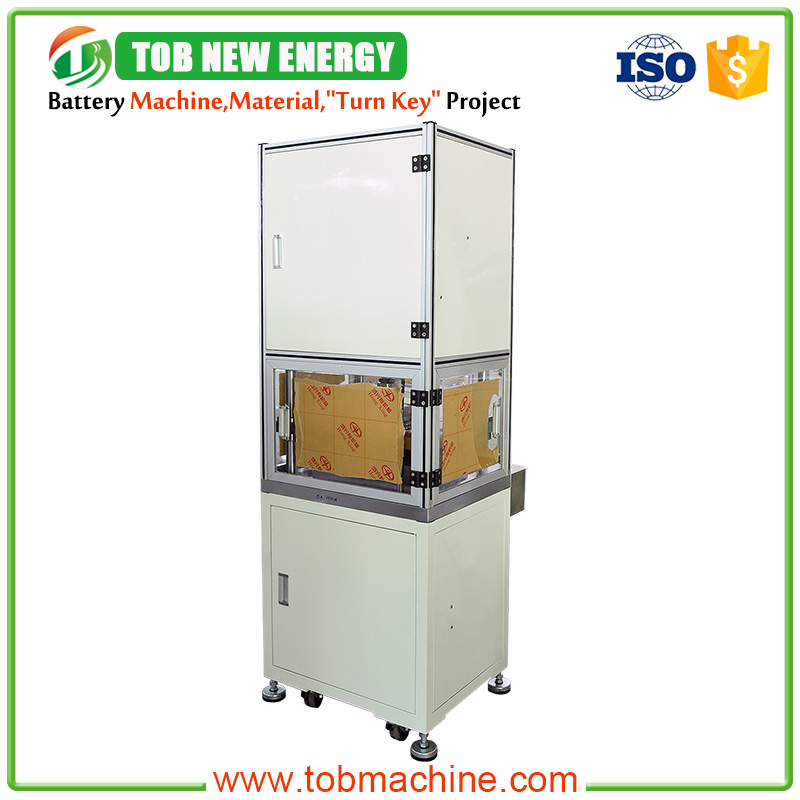

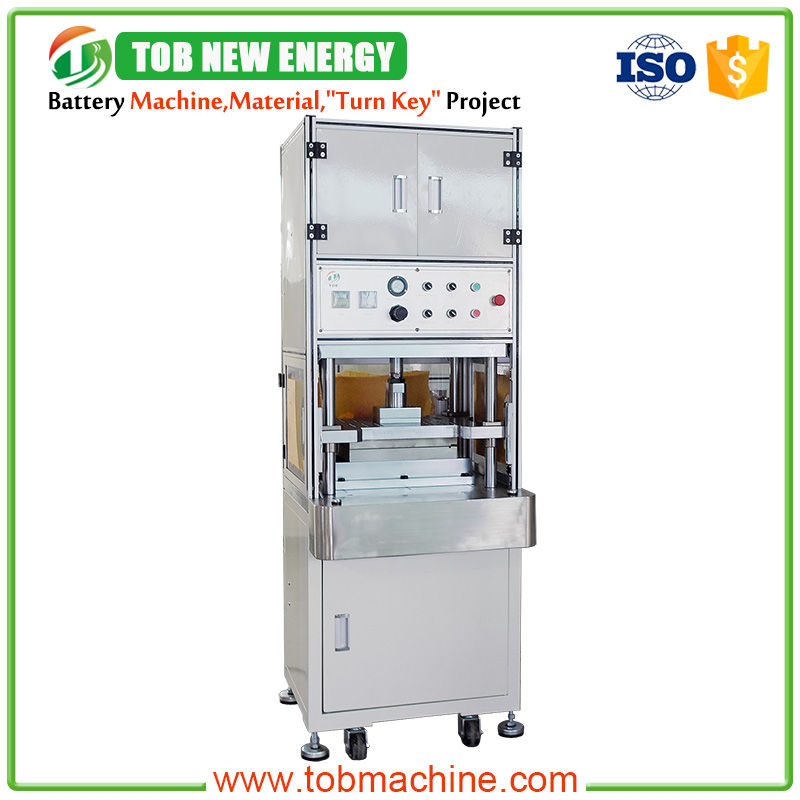

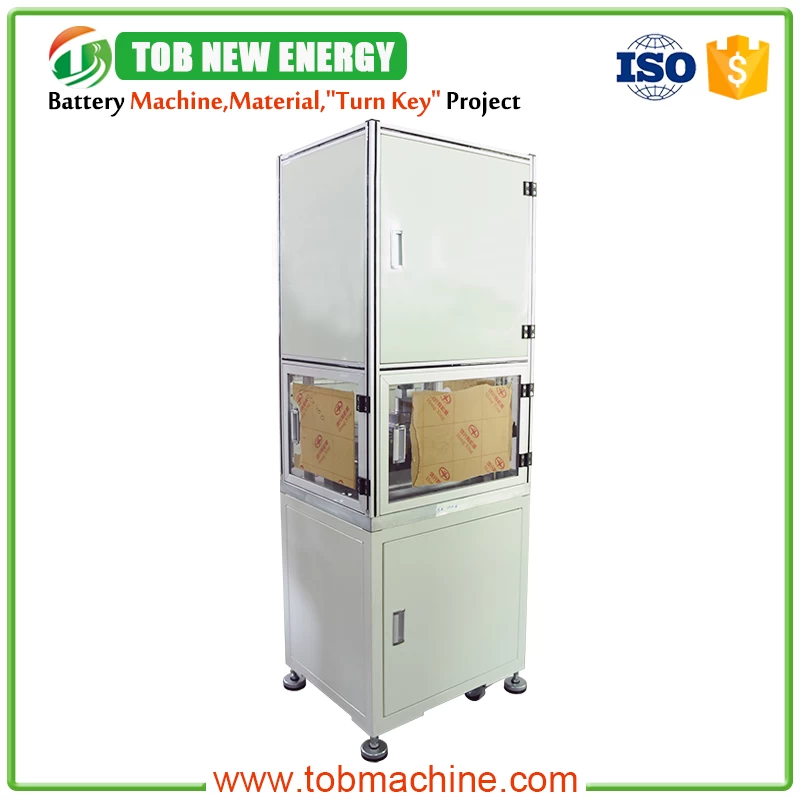

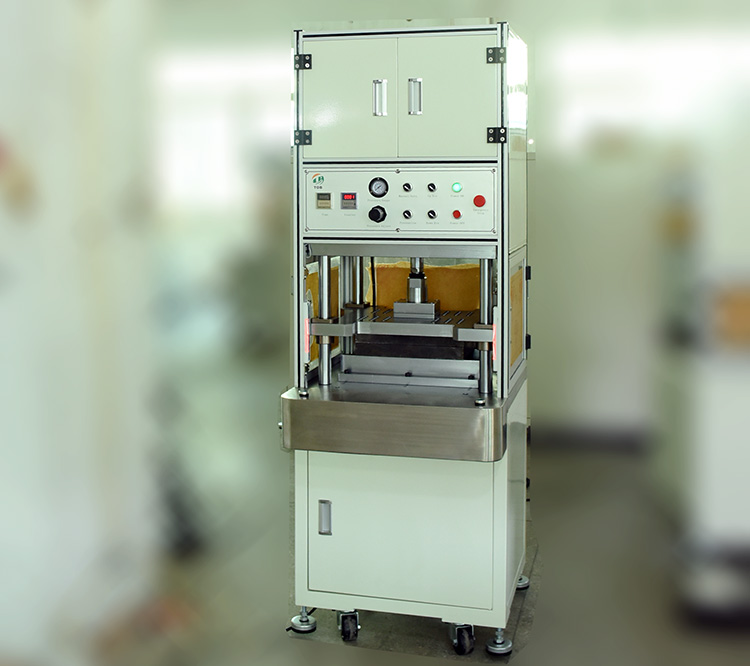

PRODUCT DISPLAY

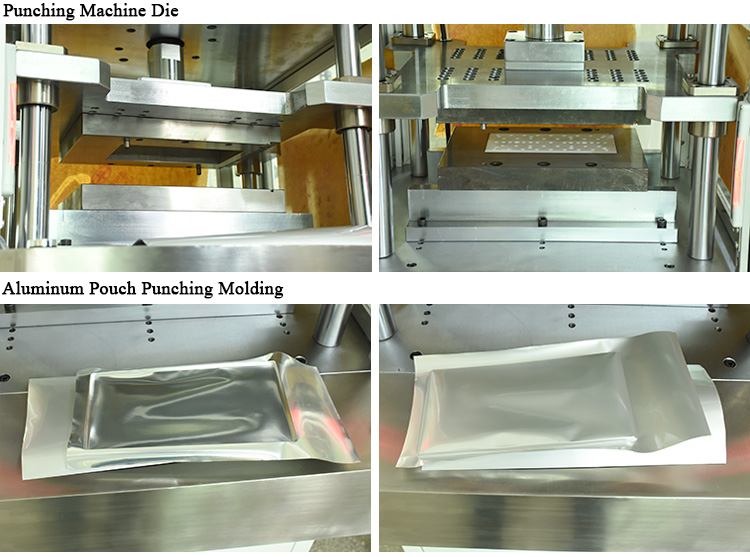

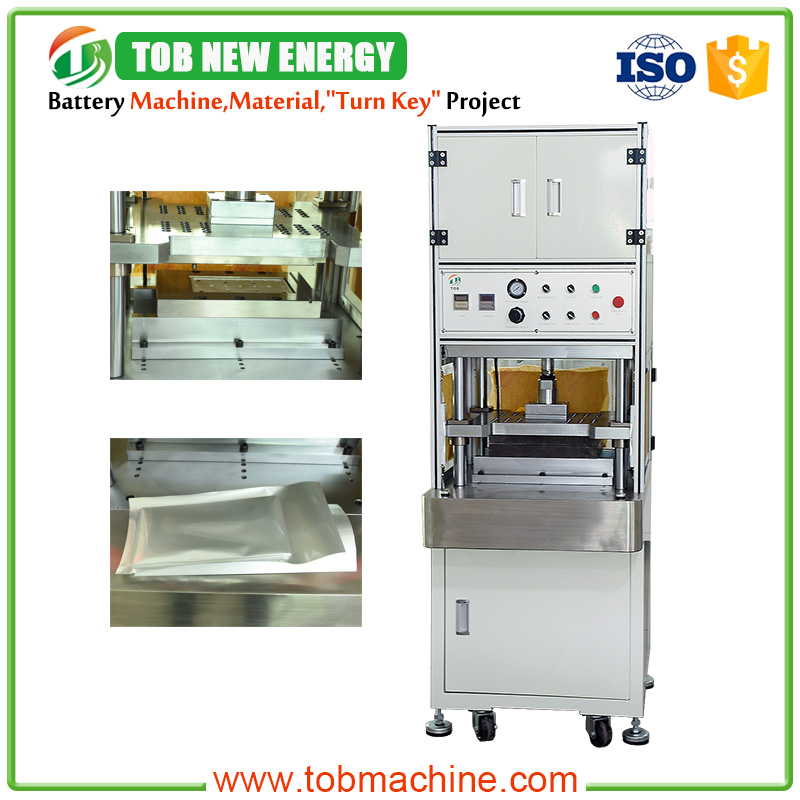

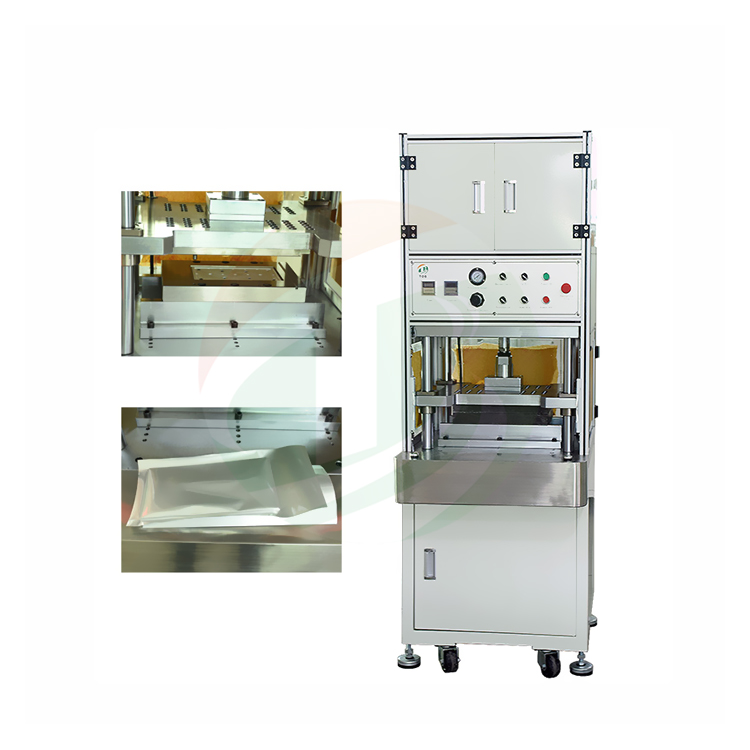

Customized Pouch Cell Die

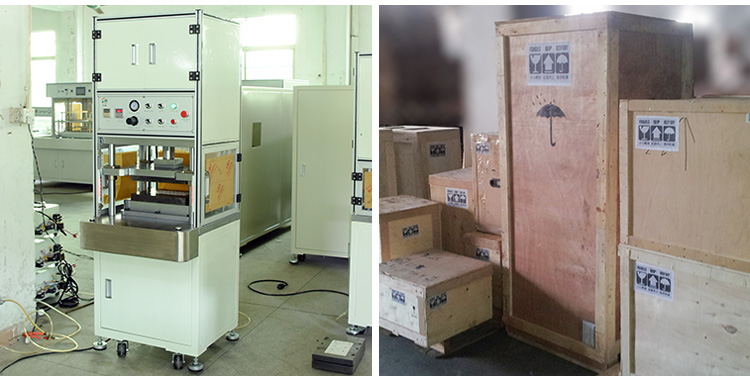

PACKAGE
