5 Liters Small Planetary Vacuum Mixer For Lithium Battery Paste Mixing
SPECIFICATIONS
1 This TOB-PVM-5LPlanetary vacuum mixermachine is a set of vacuum mixing, dispersion of efficient equipment, suitable for lithium electricity experiment process is anode paste mixing process, solder paste, silica gel, chemical industry, etc
2 Thislab planetary mixer Mixing motor adopts transmission frequency adjustment,
can choose different rotational speed and torque according to different process, different viscosity.
3 Thevacuum planetary mixer is excellent for preparing LiCoO3, LiFePO4, Phosphors and
ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity.
|
Model
|
Planetary Vacuum Mixer TOB-PVM-5L
|
|
Source voltage
|
AC 220V/110V, 50HZ/60HZ
|
|
Power
|
3500W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Rotation speed
|
0-1400 r/min, Through the inverter speed control
|
|
Revolution speed
|
0-70r/min
|
|
Effective volume
|
5L, 1-10 Liters Customized according request
|
|
Design volume
|
9L
|
|
Mixing barrel opening mode
|
Deceleration motor driven fill rises
|
|
Mixing barrel size
|
Φ260mm(Diameter)*180mm(Hight)
|
|
Mixing time set
|
0-99H can be set, auto stop when finish with vacuum
|
|
Weight
|
About 150kg
|
|
Dimension(H*L*W)
|
1300*1100*700mm, 51″*43″*27.5″
|
|
Advantage
|
5 liters 304 stainless steel container with high accuracy
Advanced soft sealing type to keep vacuum pressure maintain on -98kpa up to 24 hours.
Double Step Rotary Vane Vacuum Pump, 254L/m, is included for immediate operation
Programmable controller to set time, speed, rotation direction.
With time and temperature setting function
Double blade design, make the material up and down around, mixing battery paste rapidly
|

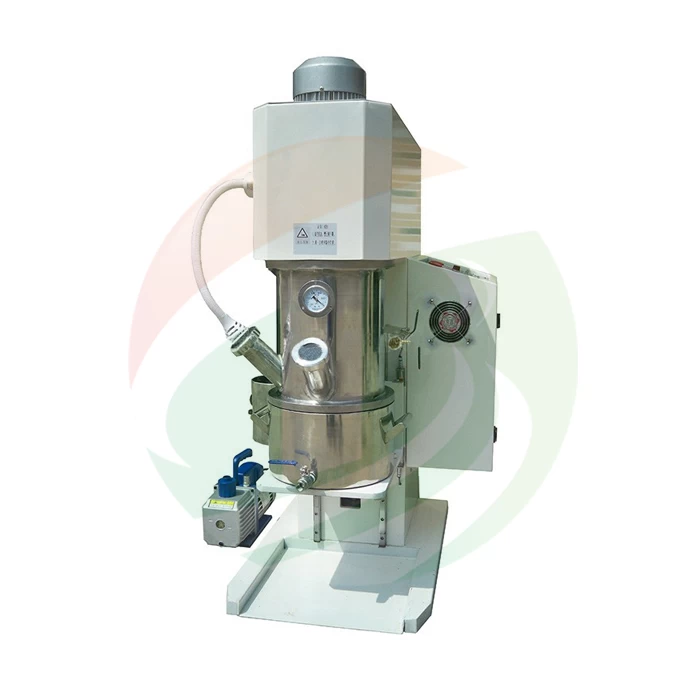

PRODUCT DISPLAY
