5V1mA Button Battery Tester

5V1ma button cell battery tester

8 Channel Battery Analyzer (0.002-1mA, up to 5V) with Laptop & Software for R&D Battery Materials

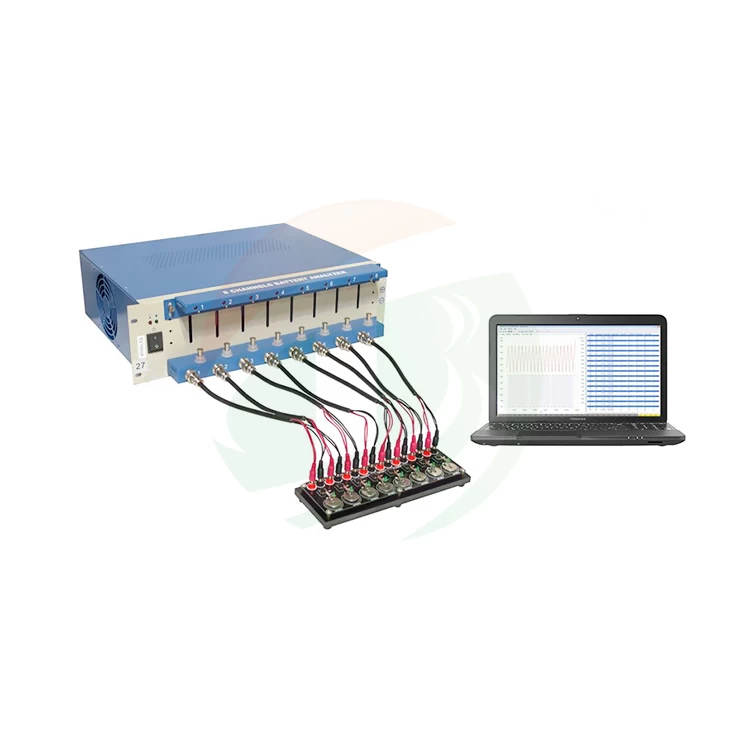

1 TOB-5V1mA Button Battery Tester is an eight-channel battery analyzer to analyze small

coin cells with a range current 0-50mah, voltage 0-5v. Each channel of the analyzer has

independent constant-current and constant-voltage source,

which can be programmed and controlled by computer software.

2 This Button Battery Tester provides most applications in battery testing fields such as

electrode materials research, battery performance test, small scale battery formation,

capability grading, battery pack testing, etc.

3 The Button Battery Tester is suitable for all kinds of coin cell battery such as lithium battery, NI-MH battery, Zn-Mn watch battery and so on.


 Button Battery Tester  TOB-BST8-5V1mA

Electricity requirement

110V AC or 220V AC selectable for universal use

Power Consumption



Range: 0.002mA - 1mA

Accuracy: ±(0.05% of reading + 0.1% of range)


Range: 0 - 5V programmable

Accuracy: ±(0.05% of reading + 0.1% of range)

Data register conditions

Time interval: 1 - 900s

Max. measurement


9999 cycles

Product Dimensions

245mm(L) x 197mm(W) x 60mm(H)


Eight independent programmable channels

Each channel can set different working modes and functions independently

Programs & Software

The testing software (TC5.3) is included to set various working modes

for measuring capacity and life cycle of all types of rechargeable batteries

Working modes Include constant current discharge,

constant current charge, constant voltage charge,rest, etc

Limited threshold conditions include voltage, current, time, capacility,

negative voltage slope, etcWith real-time monitoring interface and

integrated graph/data windows, the testing process can be observed more

directly and efficiently

During the test, the software will provide instructions and warnings for assistance

The calibration software can be used to calibrate the analyzer

Test Reports and

Curves for analysis

Different types of curves can be created by software base on user definition.

(Voltage-time curve, current-time curve, capacity-voltage curve, loops times-charge/discharge capacity curve,

loops times-charge/ discharge efficiency curve, etc)

Forms of data are created by software. User can easily compare the performance

of the batteries tested in channels both visually and statistically

Protection and Auto-recover

If power failure occurs during testing, the system will shutdown all

operating channels. Once power is recovered,

the system will automatically resume those stopped channels and ensure that

the test is normally conducted, so that no cases will lose any data.


Two Year limited warranty with lifetime support

Application Notes

New buyers can buy the software-installed laptop to avoid trouble

from installation.

If you like to run multiple battery analyzers on one Laptop,

you can just buy multiple analyzers with one laptop which is offered

at a discounted price.

Customer can easily combine up to 20 battery analyzers (0.002-1mA, 0.1-10mA,

6mA-3000mA) by using normal Ethernet cable connector via one computer.

Net Weight

11.5 kg (26 lbs)

Shipping Weight

18 kg (40 lbs)

Shipping Dimensions

610mm(H) x 510mm(W) x 356mm(H) (24" x 20" x 14")


1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.


1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.
