8 Channel Coin Cell Battery Test Analyzer 5V5mA-4008 With DCIR Testing
SPECIFICATIONS
1 TOB-CT-4008-5V5mA Button Battery Tester is an eight channel battery analyzer to analyze
small coin cells with a range current 0.025-5mah, voltage 0-5v. Each channel of the analyzer
has independent constant-current and constant-voltage source, which can be programmed and
controlled by computer software.
2 This Button Battery Tester provides most applications in battery testing fields such as electrode
materials research, battery performance test, small scale battery formation, capability grading,
battery pack testing, etc.
3 The Button Battery Tester is suitable for all kinds of coin cell battery such as lithium battery, NI-MH battery, Zn-Mn watch battery and so on.
4The 4 system tester is with more quicker testing speed and add DRIR testing.
|
Project index
|
Parameter index
|
|
Input Power
|
AC 110V/220V ±10% 50Hz/60Hz
|
|
resolution
|
AD：16bit；DA：16bit
|
|
Input Resistance
|
≥10 GΩ
|
|
Input Power
|
354mW
|
|
Channel Features
|
Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
|
|
Channel Control Mode
|
Independent Control
|
|
Voltage
|
Constant Voltage Range
|
25mV~5V
|
|
Discharge Min Voltage
|
0V
|
|
Accuracy
|
± 0.05% of FS
|
|
Stability
|
± 0.05% of FS
|
|
Current
|
Per Channel Current Range
|
0.025mA-5mA
|
|
Accuracy
|
± 0.05% of FS
|
|
Stability
|
± 0.05% of FS
|
|
Power
|
Per Channel Output Power
|
0.025W
|
|
Stability
|
± 0.1% of FS
|
|
Time
|
Current Response Time
|
1ms (0-Full Range)
|
|
Step Time Range
|
≤(365*24 )hour/step，
Time Form Support 00：00：00(h、min:s、ms)
|
|
Data Recording
|
Record Condition
|
Minimum Time Interval: 100ms
|
|
Minimum Voltage Interval: 10mV
|
|
Minimum Current Interval : 0.01mA
|
|
Record Frequency
|
10Hz
|
|
Charge
|
Charge Mode
|
Constant Current Charge、Constant Voltage Charge、
Constant Current and Constant Voltage Charge、CPC
|
|
End Conditon
|
Voltage、Current、Relative Time、Capacity
|
|
Discharge
|
Discharge Mode
|
CCD、CPD、CRD
|
|
End Condition
|
Voltage、Current、Relative Time、Capacity、
|
|
Pulse
|
charge
|
CCC, CPC
|
|
Discharge
|
CCD, CPC
|
|
Min Pulse Width
|
500ms
|
|
Automated Switch
|
Automated swith from charge to discharge for each pulse
|
|
End Condition
|
Voltage, Test Time
|
|
Cycle
|
Loop Measure Range
|
1~65535 times
|
|
Max Steps Per Loop
|
254
|
|
Nested Loop
|
Nested loop Function，Max Support 3 Layers
|
|
Protection
|
Software Protection
|
l Power-down Data Protection
|
|
l Off-line Testing Function
|
|
l Setting Protection Condition，Setting Parameter：Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time
|
|
Hardware Protection
|
Additional Anti-reverse Protection Model
|
|
DCIR testing
|
Support
|
|
Voltage and Current Testing Sample
|
4-wire connecting
|
|
Noise
|
<85dB
|
|
Database
|
MySQL Database
|
|
A Means of Communication of Upper Machine
|
TCP/IP Protocol
|
|
Data Output
|
EXCEL、TXT、Graph
|
|
Communication Interface
|
Ethernet Port
|
|
Per Unit Main Channels No.
|
8
|
|
Dimensions
|
250*200*60(mm)
|

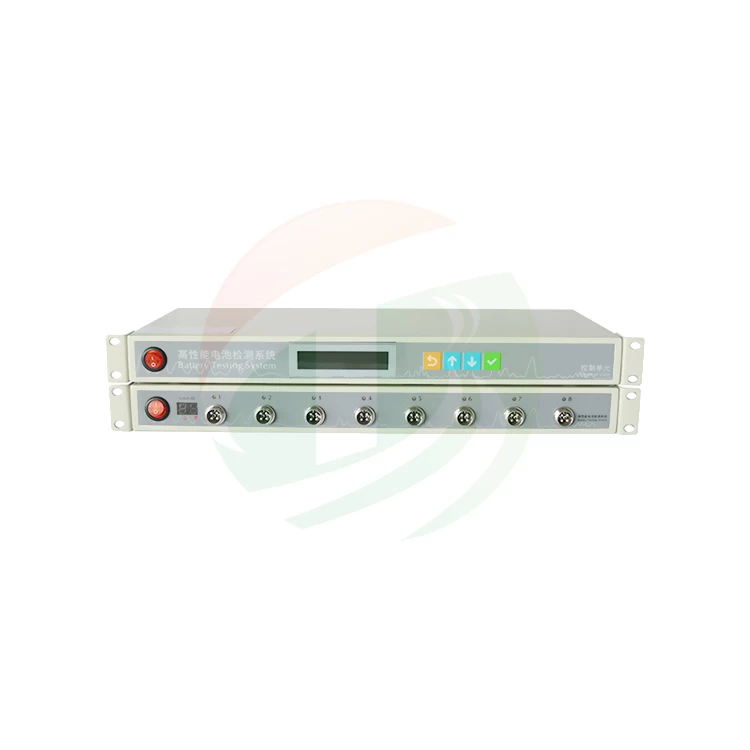

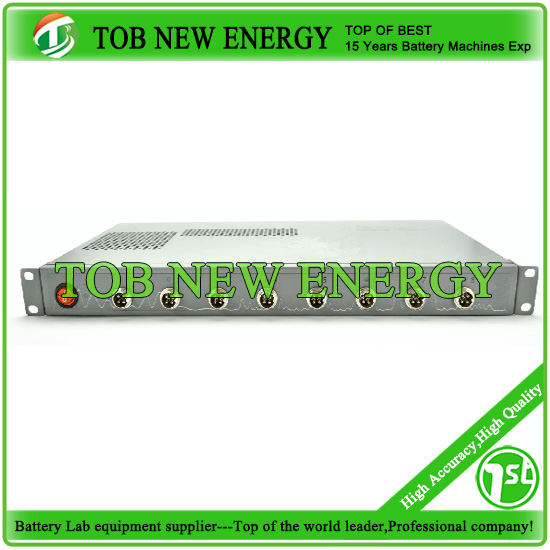

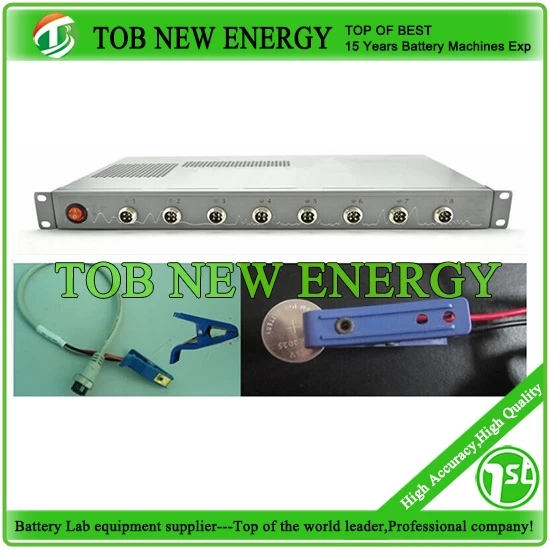

Product Display
