Automatic Winding Machine For Prismatic Battery

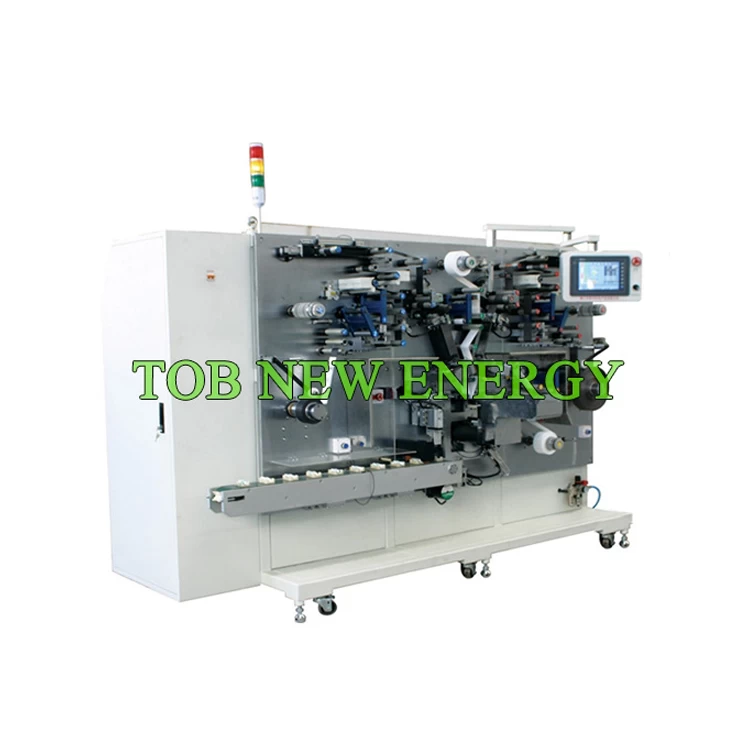

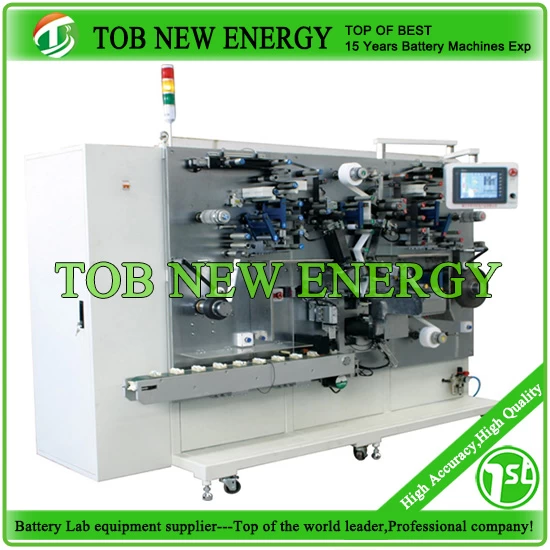

This machine is full automatic winding machine used for prismatic pouch cell continuous roller winding.



Full Automatic Winding Machine For Prismatic Battery Production Line


SPECIFICATIONS



1 This machine isfull automatic winding machineused forprismatic pouch cell continuous roller winding.

2 It includes cathode/anode electrode and battery separator auto volume-Dust, Iron and electrostatic remove-Auto winding-

Tape stick-Good products automatic delivery to collecting table, bad product out automatically.

3 The total winding process is full automatically.


Model

Automatic Winding Machine  TOB-AWM-P

Source voltage

AC220V/50Hz/Single phase. Customized according country request

Power

3.8KW

Warranty

One year limited warranty with lifetime support

Compressed air

0.4~0.6Mpa

Suitable battery size

According to customer’s requirement

Operating environment

Temperature : 20~35℃

Humidity : 5~55%HR

Material

Feeding mode

Material width

(mm)

Material thickness

(um)

Max outside

diameter

(mm)

Inner diameter

(mm)

Electrode

Roller

100-200

100-280

Ф360

ф76.2

Separator

100-200

16-25

Ф280

Tape

20-60

20-50

Ф150

Winding accuracy

0.5mm

Winding error

0.3mm

Separator tension

0.05-0.5kg

Electrode tension

0.05-0.5kg

Output

4-7PPm

Dimension (L*W*H)

2400*1300*2000mm

Weight

1200kg
