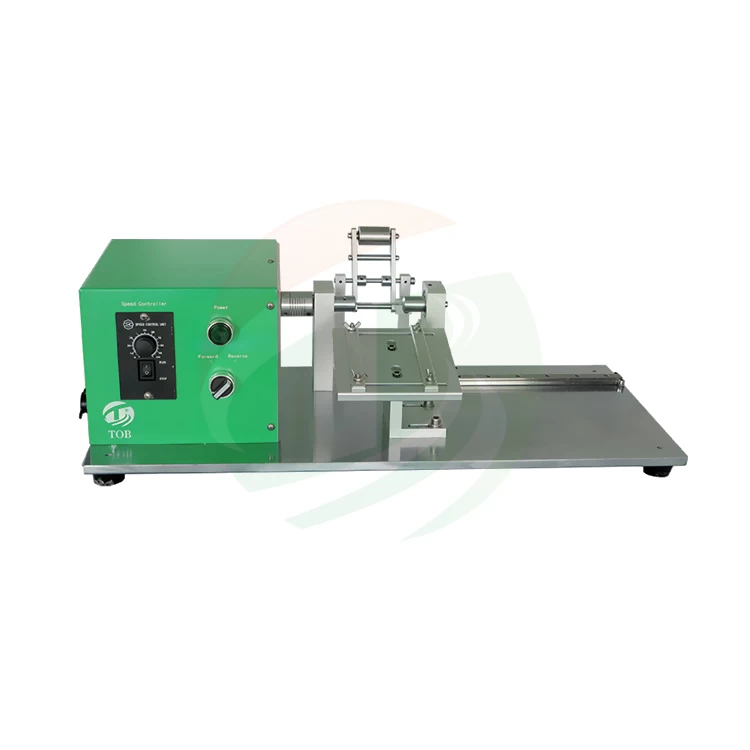

Semi-Automatic Winding Machine for Electrodes of Pouch Cell
SPECIFICATIONS
TOB-JR135-Prismatic semi-automatic winder machineis used for winding battery anode/cathode electrodes with separator together in the research of Li-ion Pouch cell batteries.
|
Model
|
Semi-Automatic Winding Machine TOB-JR135-P
|
|
Working Voltage
|
AC110V/220V, 50/60HZ
|
|
Power
|
40W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Winding Speed
|
0 - 170 RPM Adjustable
|
|
Winding blade
|
The winding width depends on the width of the winding blade
Customized square winding blade according to battery model
|
|
Winding Mode
|
Switchable between clockwise and counterclockwise
|
|
Output
|
70-100EA/h, according to battery size and maunal
|
|
Product Dimensions
(L*W*H)
|
360*310*280mm
|
|
Net weight
|
About 20kg (45 lbs)
|
|
Application Notes
|
This machine can be used for prismatic battery with square winding shaft,
and you can also choose the round winding shaft for cylinder cell core winding,
We will supply with the suitable winding accessories according to your battery model
|

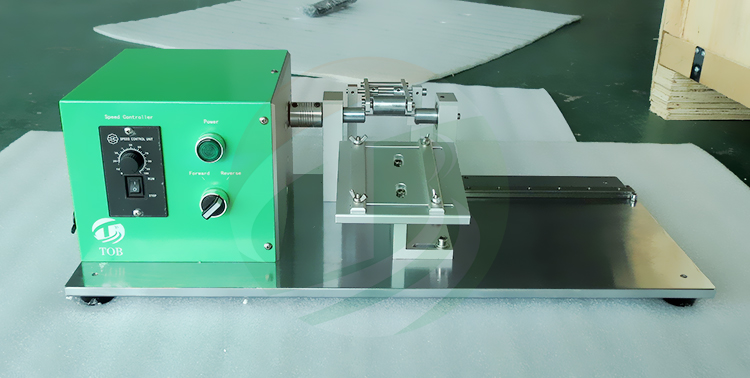

PRODUCT DISPLAY
Pouch cell winding blade

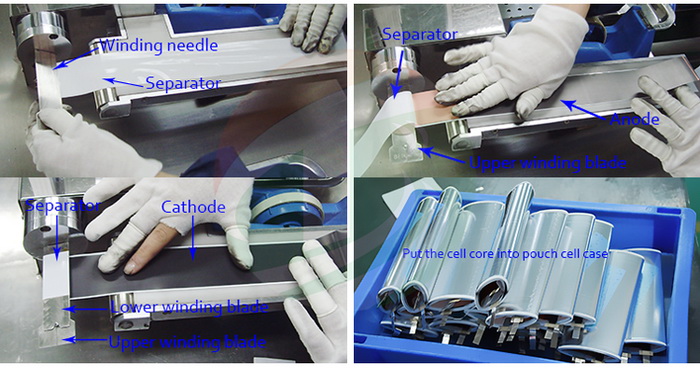

Winding machine winding process
