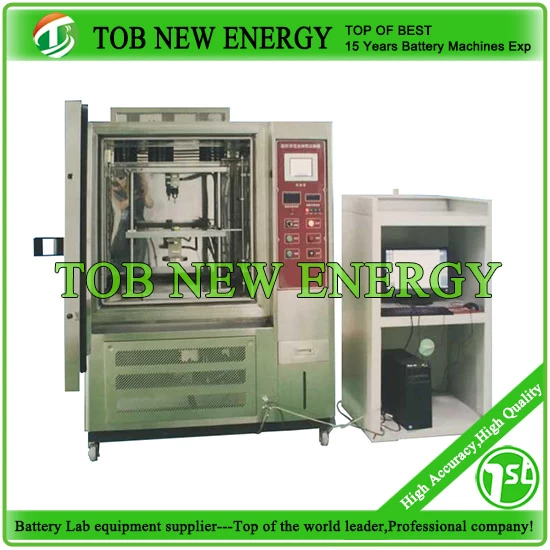

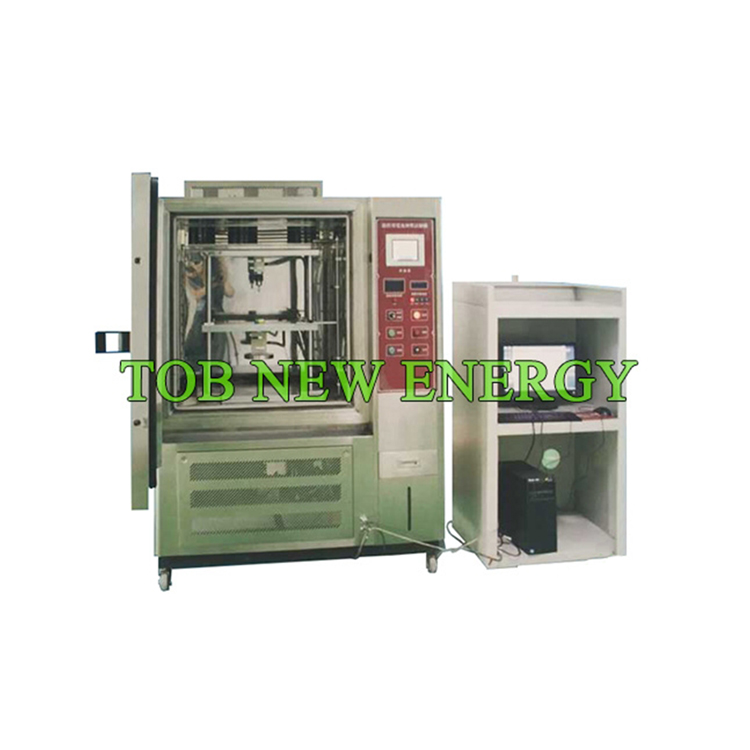

Battery internal short-circuit integrated testing machine For lithium battery safety performance testing
SPECIFICATIONS
1.Temperature
control box technical specifications
|
Temperature range
|
0℃~+100℃
|
|
Analytical precision
|
0.01℃
|
|
Temperature fluctuation
|
±0.5℃
|
|
Temperature uniformity
|
±2.0℃
|
|
Temperature rising rate
|
Average 3℃/min（from 0℃ to 100℃、Nonlinear load）
|
|
Temperature falling rate
|
Average 1℃/min（from 1000℃ to 0℃、Nonlinear load）
|
|
Within the box size
|
W600*H750*D500MM
|
|
Within the box material
|
Mirror stainless steel plate,the bottom reinforcement
|
|
Carton size
|
W1500*H1750*D1000MM
|
|
Carton Material
|
Stainless steel or cold rolled steel paint treatment
|
2.Shield
prick test specifications
|
Max load
|
200kg
|
|
Force value resolution
|
1/10000
|
|
Force accuracy
|
≤0.5%
|
|
Force value magnification
|
1/1000
|
|
Displacement resolution
|
7-speed automatic switch
|
|
Displacement accuracy
|
≤0.5%
|
|
Shield thorn
|
10*10MM
|
|
Speed Range
|
0.01~20MM/S
|
|
Effective stroke
|
150MM（Without holder）
|
|
Test largest plane
|
300*300MM(Customized)
|
3.Voltage
data collection
|
Voltage data collection range
|
0~20V，Acquisition frequency 100HZ/S
|
|
Voltage resolution
|
1MV
|
|
Stop voltage range can be set
|
0~20V
|
