Battery shell manual punch machine
SPECIFICATIONS
Overview of functions
1. For lithium batteries aluminum plastic composite film monolithic manually stamping molding;
2. stamping molding time and pressure display is adjustable, easy to operate;
3. The two-button start-up mode, equipped with safety light barriers and door switch protection,safe and reliable operation;
4. The liquid pressurized cylinder high output pressure;
5. Touch screen display operation, plc operation.
Technical parameters
|
Can be fitted mold area L* W
|
300 * 460mm
|
|
Maximum pressing force
|
10t
|
|
Punch adjustable stroke
|
10mm
|
|
Forming speed
|
300 ~ 600 times / hour
|
|
Configure Power
|
220V/ 50HZ
|
|
Dimensions (L * W * H）
|
720 * 780 * 1680mm
|

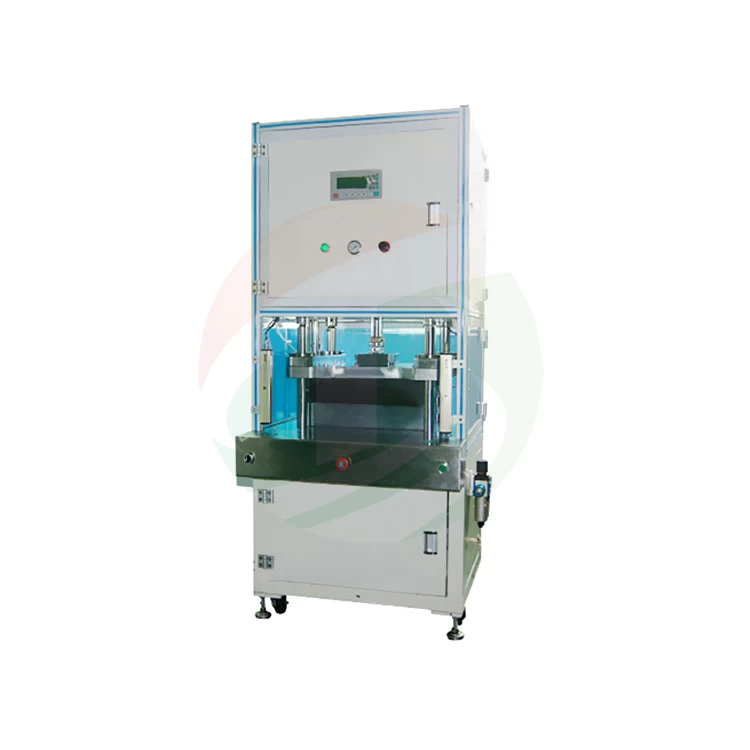

PRODUCT DISPLAY
