Automatic 18650 Battery Sorter Grading Sorting Machine For Battery Pack Preparing
SPECIFICATIONS
The Battery Automatic Sorting Machine is a must equipment for Battery Pack
Manufacturer for voltage and resistance testing and sorting.
1. 10 Channel automatic cell sorter is designed
to sort cylindrical 18650 or 26650 ,26700 cells
2. Sort by cell's voltage and impedance up to up
to 10 groups
3. Automatic sorting control
4. Fast sorting speed (3600 batteries/hr)
5. Easy to refill cells during the process
6. wheels design, easy to move the machine to any
operating place
|
Model
|
TOB-BT-1810B
|
|
Voltage
supply
|
220V/50HZ(or
can be customized)
|
|
Power
|
1.6kw
|
|
Air Pressure
|
0.4-0.8Mpa
|
|
Display screen
|
7.5 inch touch screen, 3-axis PLC programmer
|
|
Suitable for
|
18650 battery
|
|
Receiving channel
|
11 channel,10 sorting and matching channel,1 unqualified
channel
|
|
Internal resistance setting
|
0mΩ-999.9 mΩ
|
|
Voltage setting
|
0-6V
|
|
Weight
|
<200KG
|
|
Code sweeping function
|
No, can be customized
|
|
Production efficiency
|
Without code sweeping, about 5000pcs/h
|
|
With code sweeping, about 3000pcs/h
|
|
Feeding
|
By hopper,
500pcs cells one time
|
|
External
connection
|
Customizable
automatic connection padding machine
|
|
Tester
|
Standard tester: HOPETECH HK3560
|
|
High speed tester
|
|
Voltage accuracy 0.00005V
|
|
Internal resistance precision 0.01 mΩ
|
|
Motion device
|
Step shifting using closed-loop stepper motor, and the positioning
is accurate.
|
|
The synchronous belt conveys the cell to prevent the cell surface
damaged
|
|
Advantage
|
Automatic collection the
production quantity to show current production efficiency
|
|
Test data
can be stored in U disk
|
|
Customizable
scan code and database data docking
|
|
Optional
cell dynamic tester, Practical embodiment the quality and load performance of
cell
|
|
The
equipment debugging is simple, easy to learn and easy to understand, with
fault alarm
|
|
Package size
|
L1650*W1250*H1690mm
|
|
Weight
|
About 350kg
|

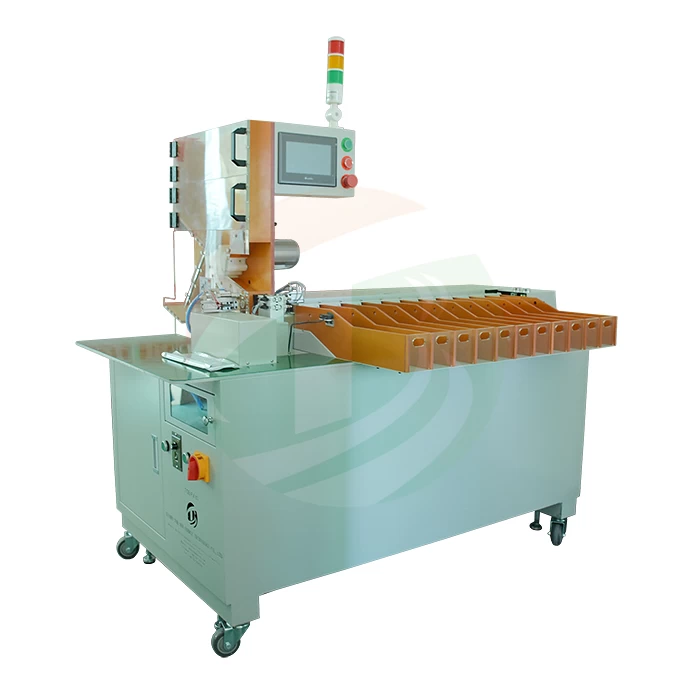

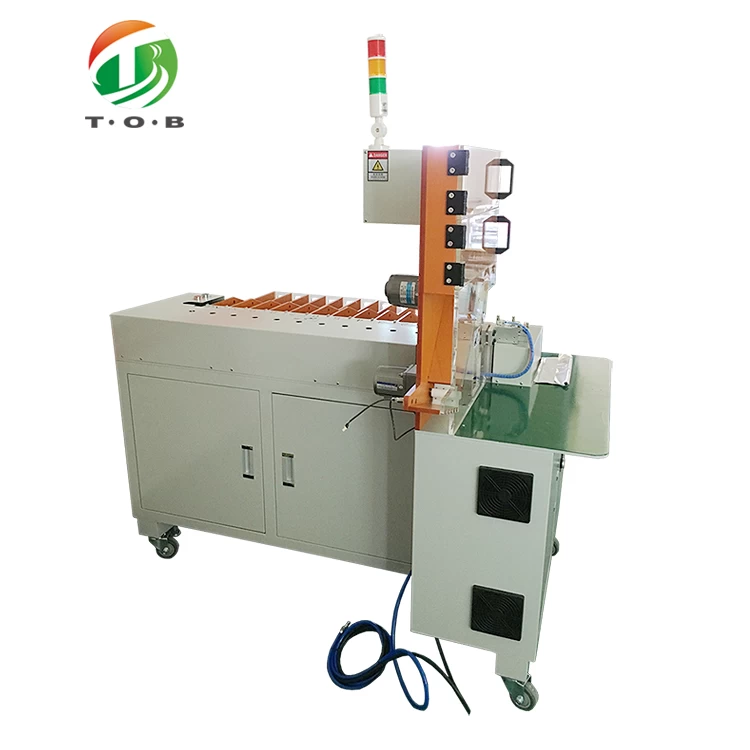

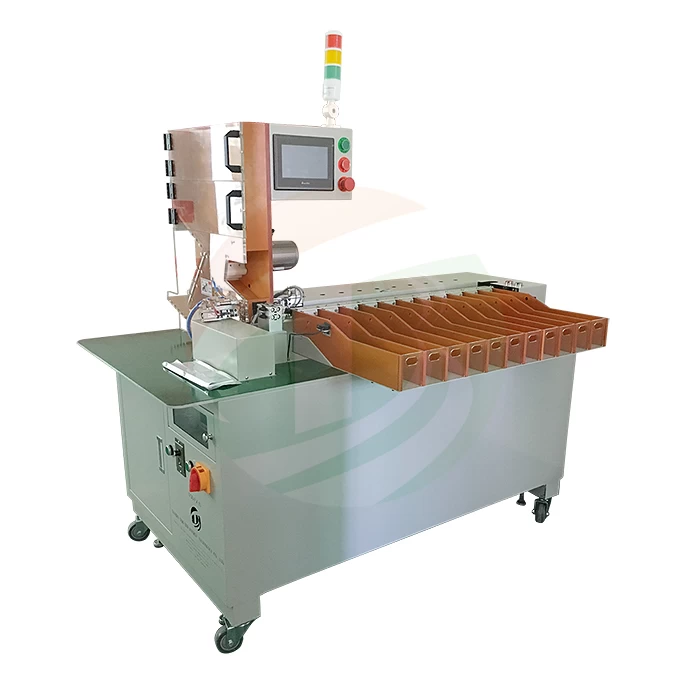

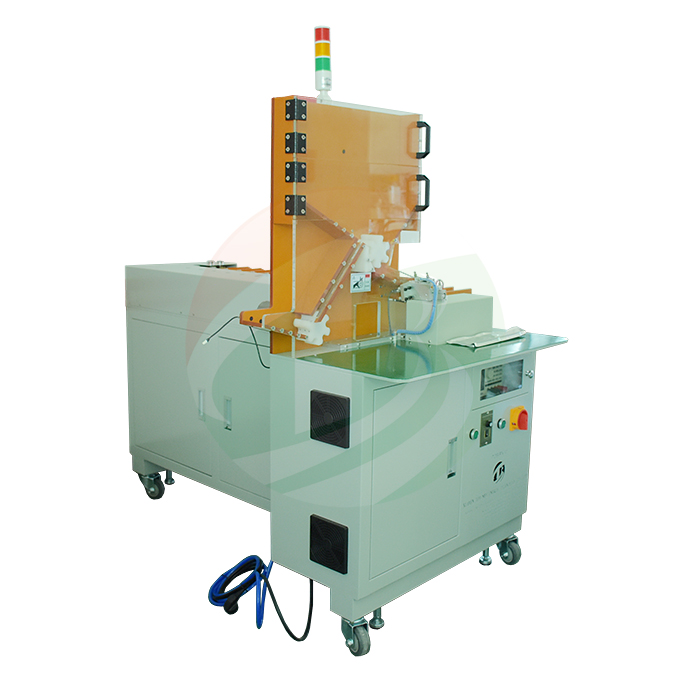

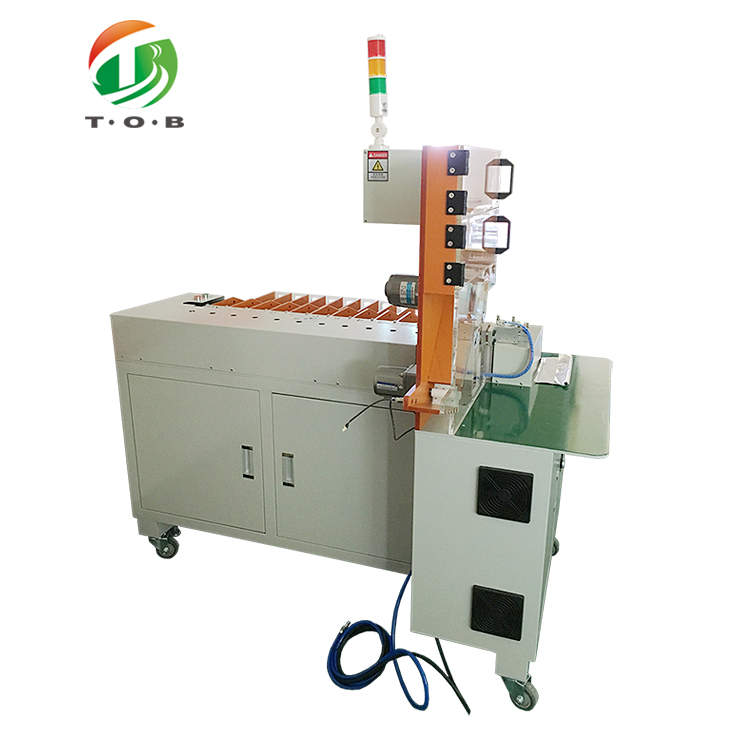

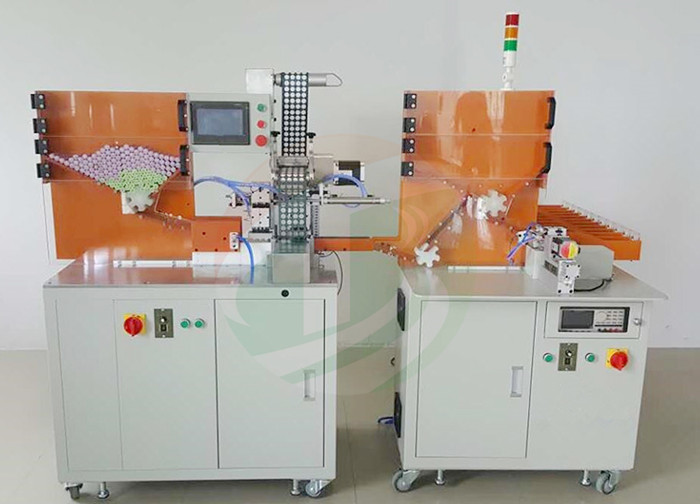

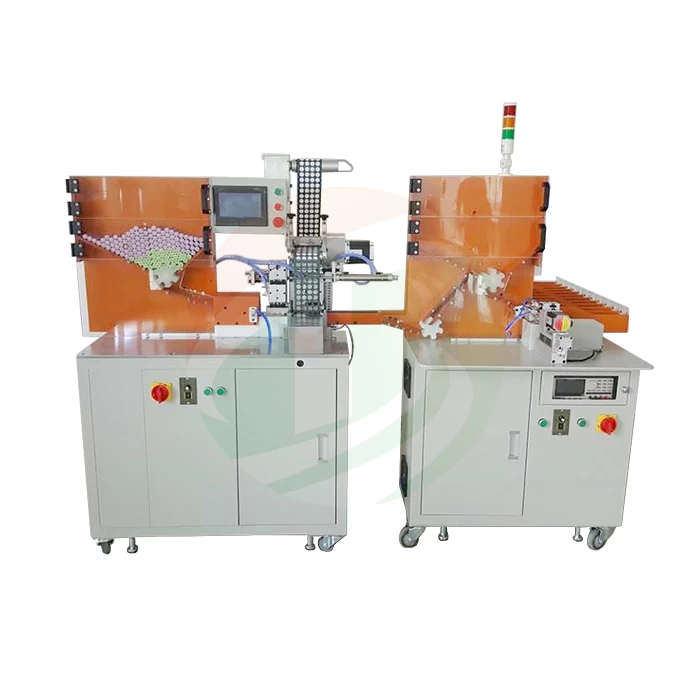

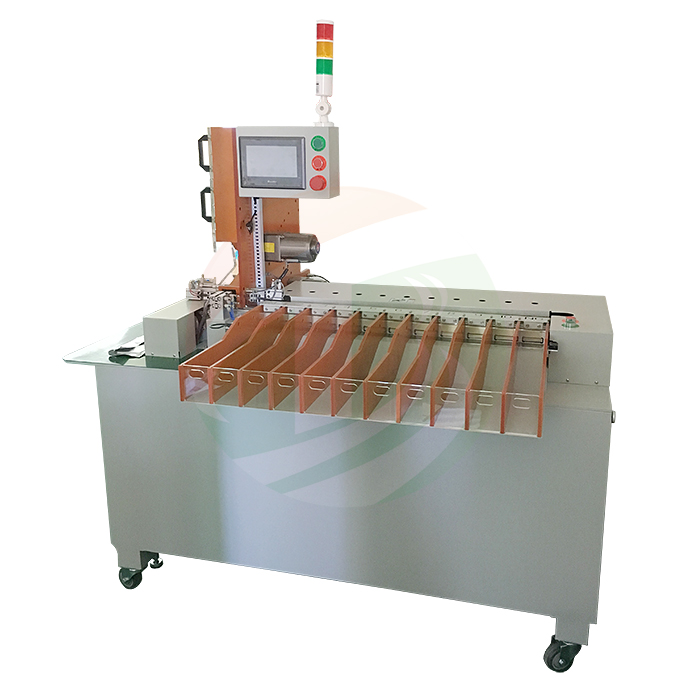

PRODUCT DISPLAY
PACKAGE
