90L 250°C laboratory Line dzf Vacuum Oven with Vacuum Pump
SPECIFICATIONS
1 The DZF-6090Vacuum OvenIs mainly used For scientific research units, specialty universities, laboratories, industrial mining enterprises etc and production field for materials drying and heat treatment under the vacuum state.
2 Use Vacuum drying oven for material heating drying under vacuum states has advantages :
2.1 Can reduce the drying temperature
2.2 Avoid some objects heating to oxidation
2.3 Avoid heating air to kill living cells
2.4 No dust damage
|
Model
|
TOB-DZF-6090Vacuum Oven
|
|
Source voltage
|
220V 50HZ
|
|
Power
|
1500W
|
|
Warranty
|
One Year Limited Manufacture Warranty with Life Time Support
|
|
Temperature range
|
RT+10～250℃
|
|
Temperature control accuracy
|
0.1℃
|
|
Temperature fluctuation
|
±0.5℃
|
|
Operating ambient temperature
|
+5~40℃
|
|
Vacuum degree
|
-0.1Mpa（≤133Pa）
|
|
Vacuum display
|
Pointer type medical vacuum meter
|
|
Workingsize
(L*W*H)
|
450*450*450（mm）
|
|
Dimension
(L*W*H)
|
650*600*1550（mm）
|
|
Heating mode
|
The external radiation heating. The electric heating pipe is located in the inner lateral walls, close to the liner
|
|
Temperature
controller
|
1 High precision microcomputer temperature controller, accurate temperature control
2 Working temperature can be set and working time can be set.
3 When time reach, sound alarm, and when any error, also alarm. function
|
|
Inner box material
|
304 stainless steel
|
|
Outside shell material
|
High quality cold-rolled steel plate electrostatic spray
|
|
Box door
|
Toughened bulletproof double glass door
|
|
Safety device
|
With over temperature protection, grounding etc
|
|
Shelf
|
2pcs
|
|
Vacuum pump
|

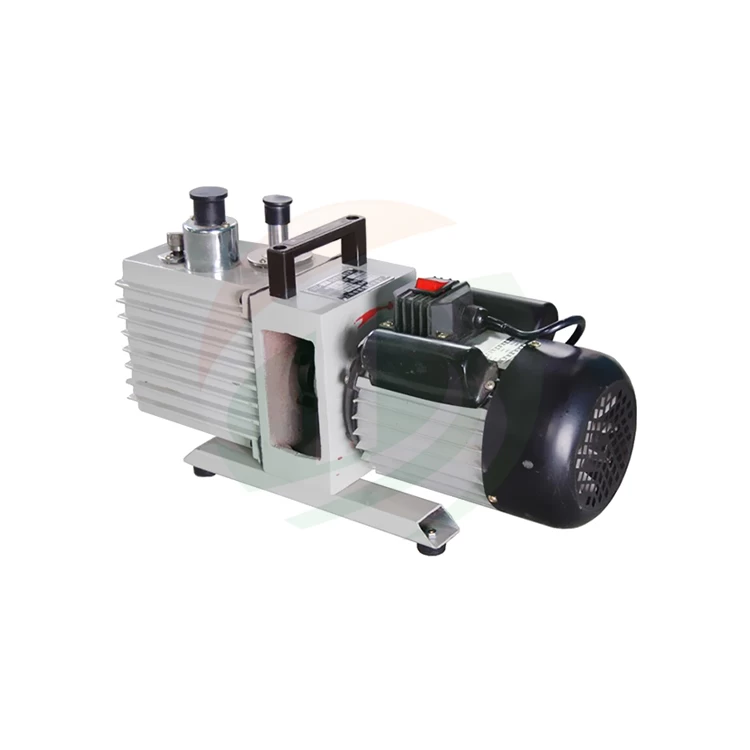

2XZ-2 rotary vane vacuum pump (suction: 2 L / sec), vacuum pump is located in the box body
|
|
Packing Size
|
770*690*1800mm
|
|
Packing Weight
|
210KG
|

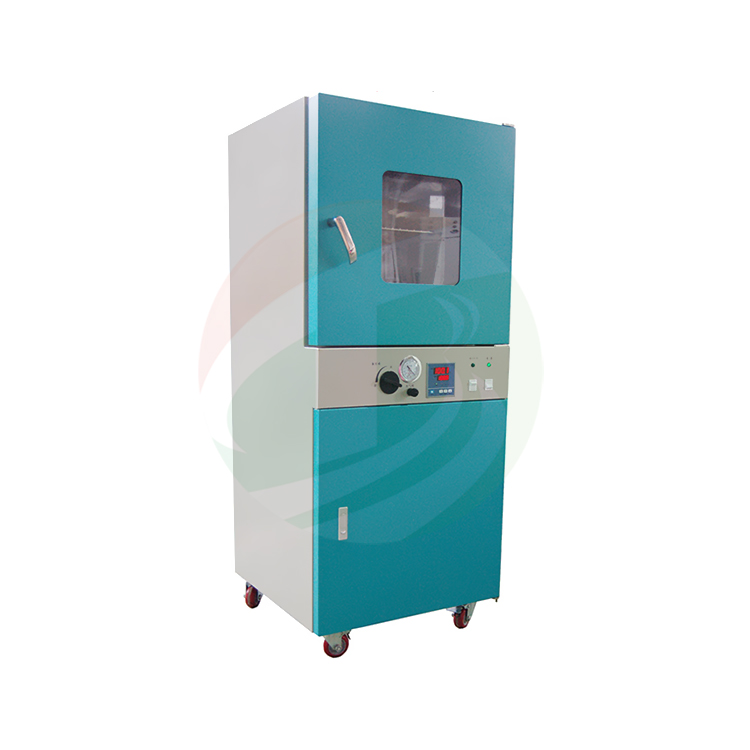

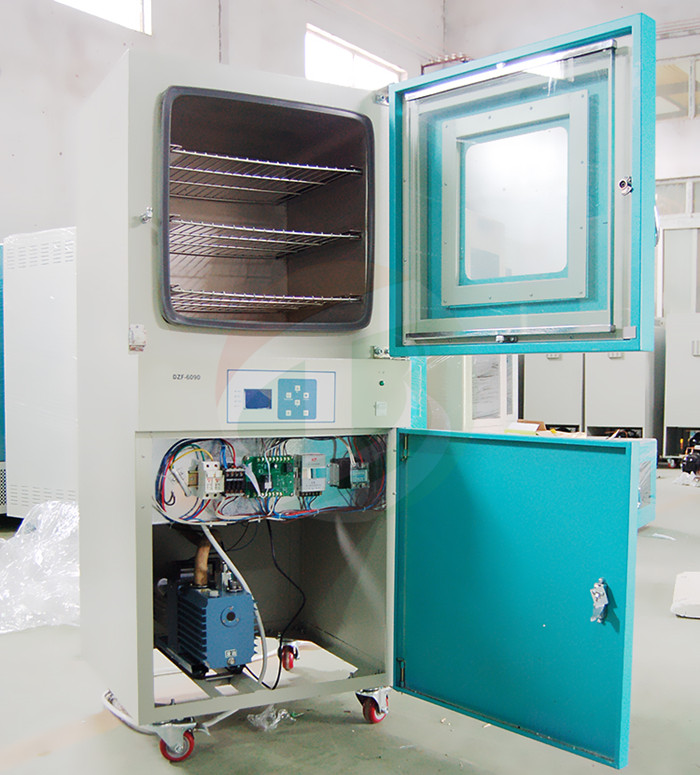

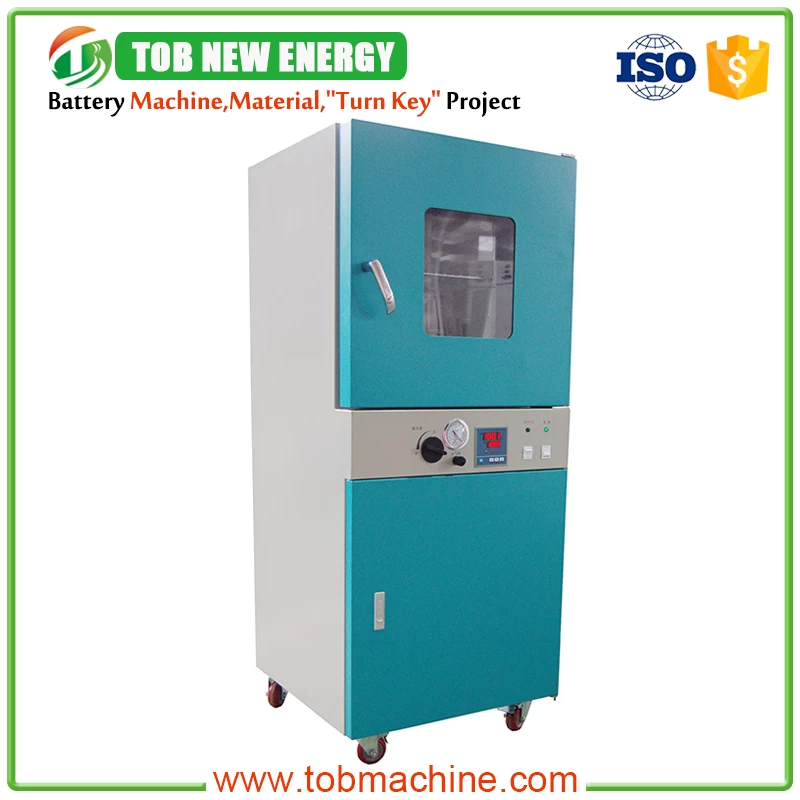

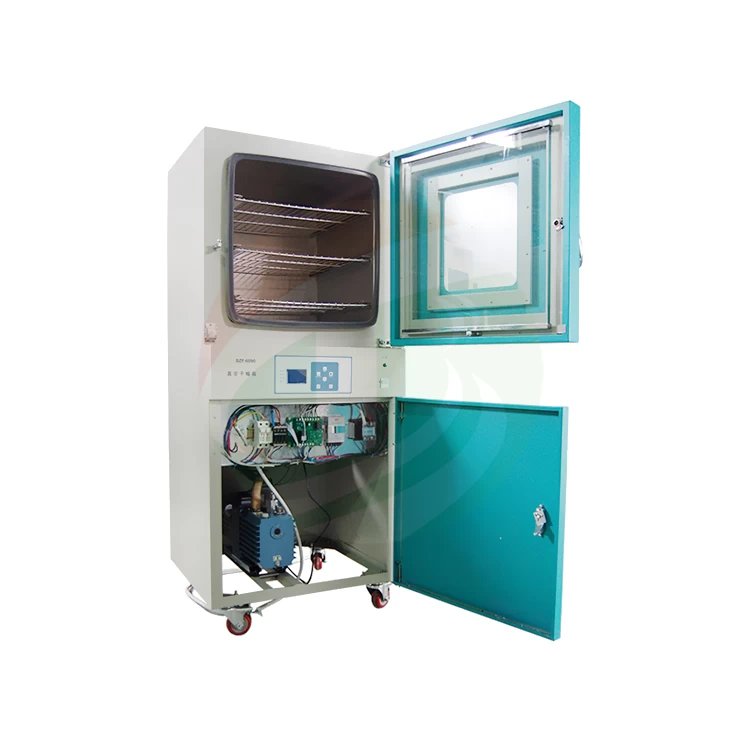

PRODUCT DISPLAY
