340*280mm Laboratory Automatic Die Cutting Machine for Lithium Battery Anode & Cathode Electrode Cutting
SPECIFICATIONS
1.The die cutting machine is used for Lithium battery anode and cathode die cutting.
2.The device is composed of an automatic discharging device, an electrode limiting device, an electrode punching cutting device, a driving traction device, and an automatic waste collecting device.
Equipment technical parameters
Product specification range (electrode size) that the equipment can produce
|
After the electrode is cut, the size range
|
|
No
|
Name
|
Size（mm）
|
|
1
|
Electrode width W
|
50～280
|
|
2
|
Electrode height H
|
50～320
|
|
3
|
Tab height Ht
|
10～20
|
|
4
|
Tab edge D
|
5～20
|
|
5
|
Tab width Wt
|
30～60
|
Main technical parameters of the equipment
|
No
|
Equipment parameter index
|
Parameter
|
|
1
|
Maximum feed width
|
350mm
|
|
2
|
Maximum processing area
|
Automatic punching 340*280mm
(manual punching 350*350mm）
|
|
3
|
Equipment running speed
|
1000-9000 times/h
|
|
4
|
Die thickness requirements
|
thickness > 8mm
|
|
5
|
Feed control
|
Feeding speed and step adjustment
|
|
6
|
Shipping distance accuracy
|
±0.1mm
|
|
7
|
Safety equipment
|
Infrared grating protection and safety shield
|
|
8
|
Feed step accuracy
|
＜0.1mm
|
|
9
|
Operation interface
|
Intelligent human machine interface
|
|
10
|
Roll material weight
|
＜50kg
|
|
11
|
Roll material outer diameter
|
＜400mm
|
|
12
|
Punching knife life
|
1-5 million times
(depending on the quality of the die and the accuracy of the machine）
|
|
13
|
Burr degrees
|
<0.02
|
|
14
|
Feed roll diameter
|
3 inches (inside diameter)
|
|
15
|
Waste recycling
|
Automatic waste separation and recovery device
|
|
16
|
Operating mode
|
Auto/manual mode
|
|
17
|
Control System
|
Intelligent microcomputer control
|
|
18
|
Total power
|
3.6KW
|
|
19
|
Power voltage
|
AC220V
|
|
20
|
Machine weight
|
1500kg
|

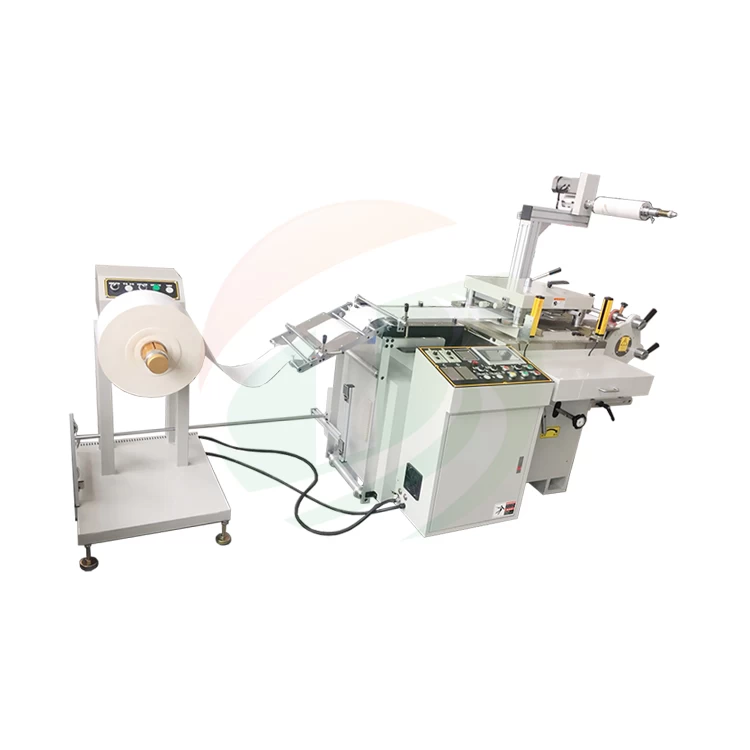

PRODUCT DISPLAY
