Semi-auto Lithium Ion Battery Electrode Stacking Machine
SPECIFICATIONS
The device is suitable for
lithium battery Z-type lamination process. The device is equipped with
correction device, diaphragm release tension control device and auxiliary
positioning device, PLC control panel. Only need to manually feeding the
electrodes, through the control button to control the cylinder to complete the
stack. Simple operation and high efficiency.
|
Model
|
Semi-auto
stacking machine TOB-S-DP200-B
|
|
Warranty
|
One year limited
and list time support
|
|
Maximum Separator
diameter
|
φ220mm
|
|
Applicable
electrode size
|
L(0 ~ 210) mm,
W(55~ 260) mm
|
|
Separator width
|
200mm
|
|
Correction
accuracy
|
0.05mm
|
|
Power supply
|
AC220V / 50Hz
|
|
Compressed air
source
|
0.5MPa ~ 0.7MPa
|
|
Dimension
|
58 *58 *69 cm
|
|
Net Weight
|
77 kg
|
|
Packing size
|
75*75*93cm
|

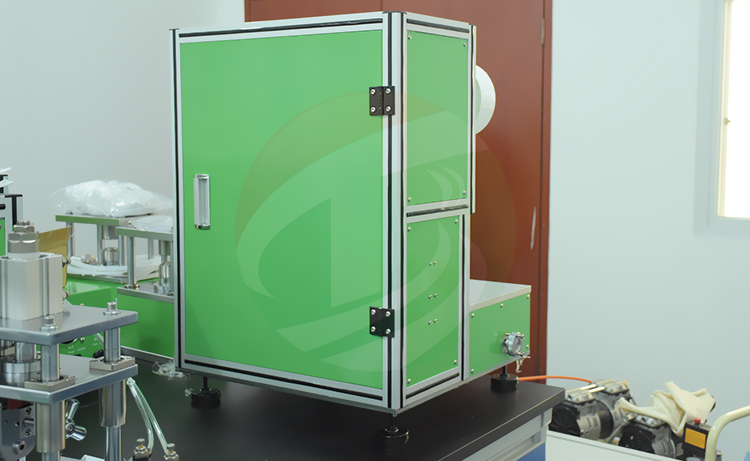

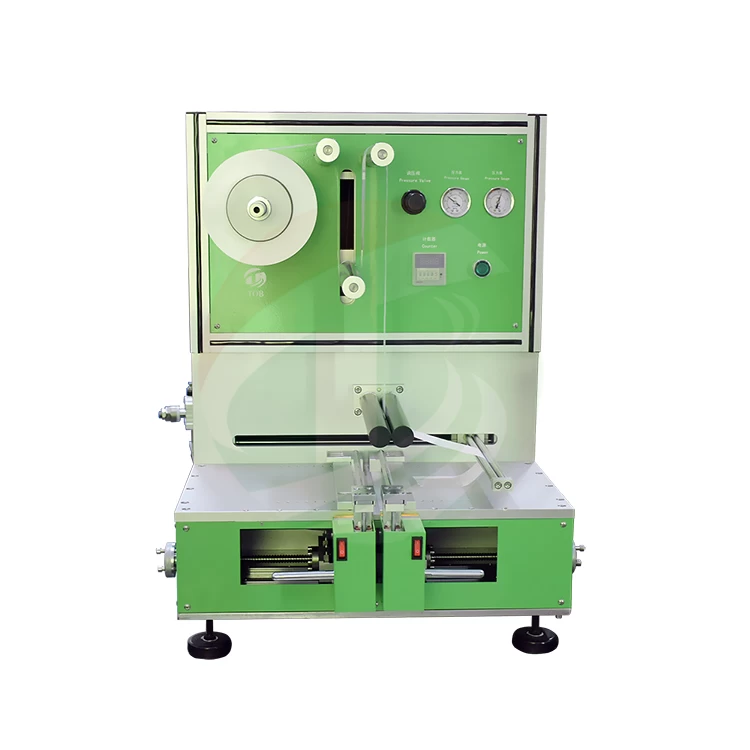

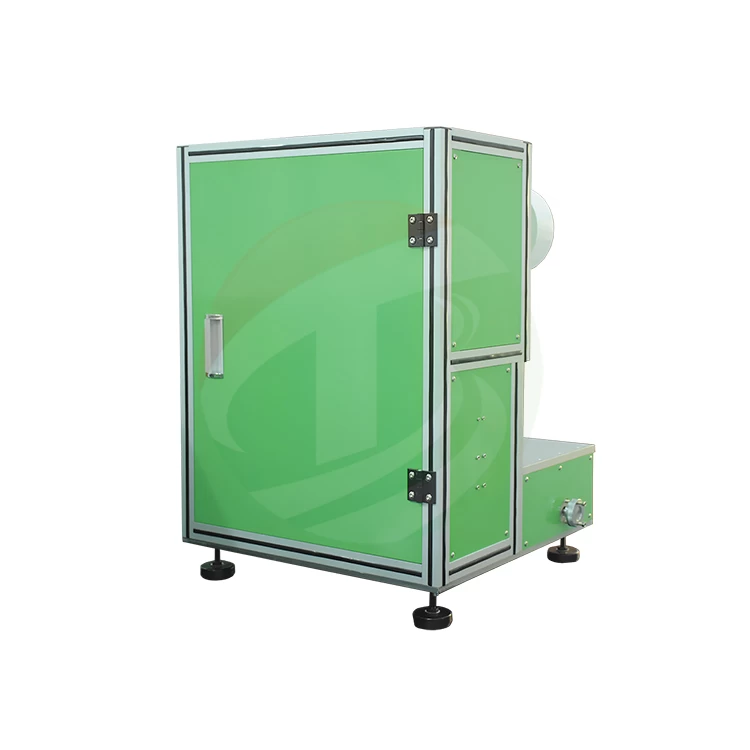

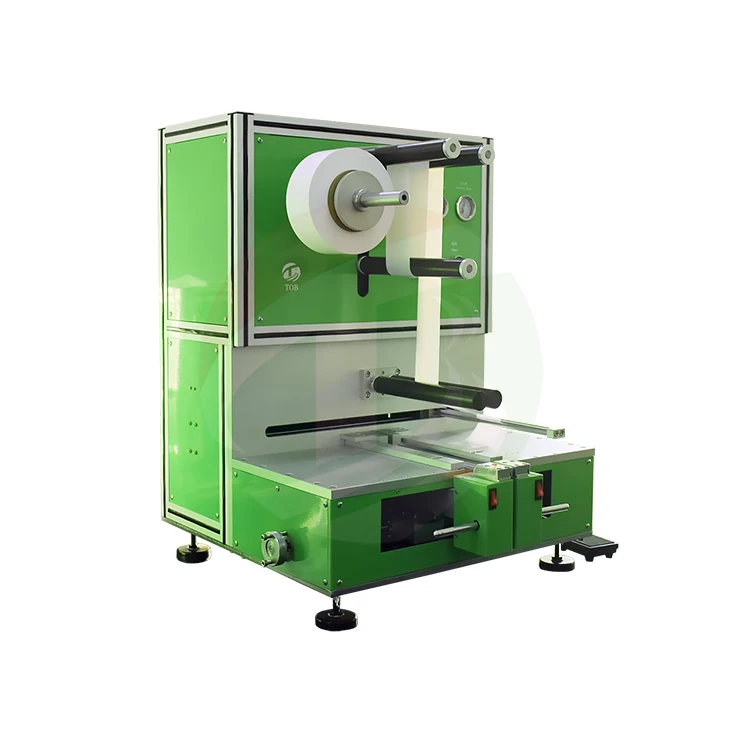

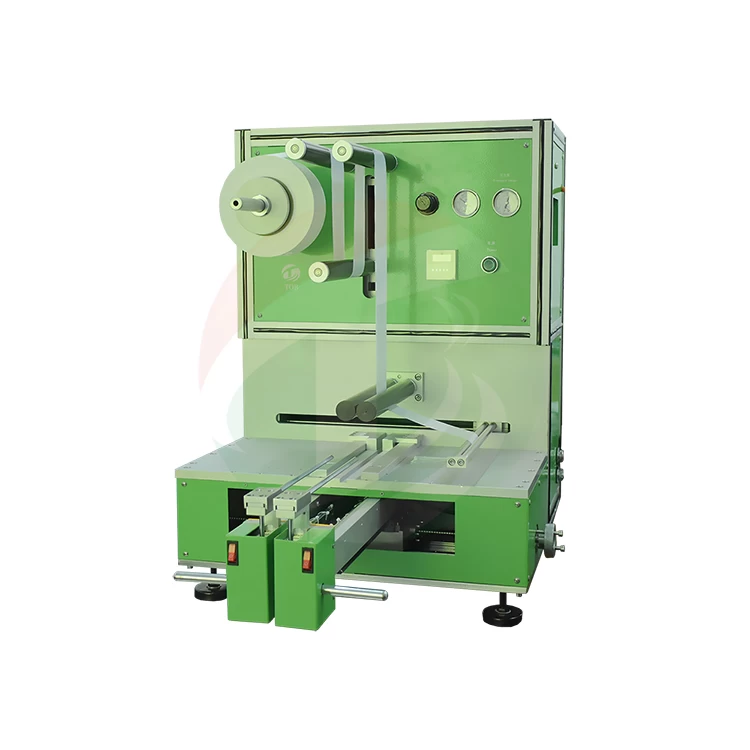

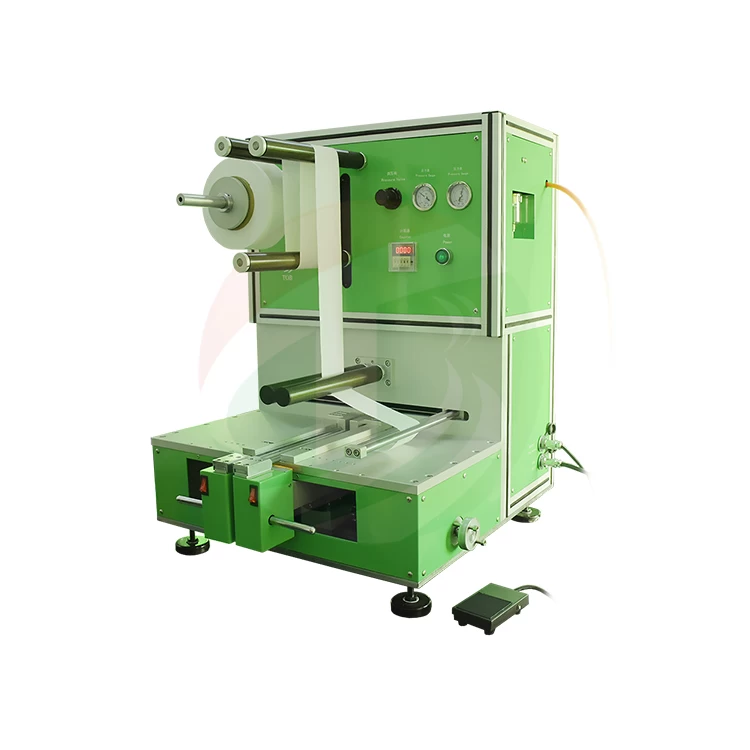

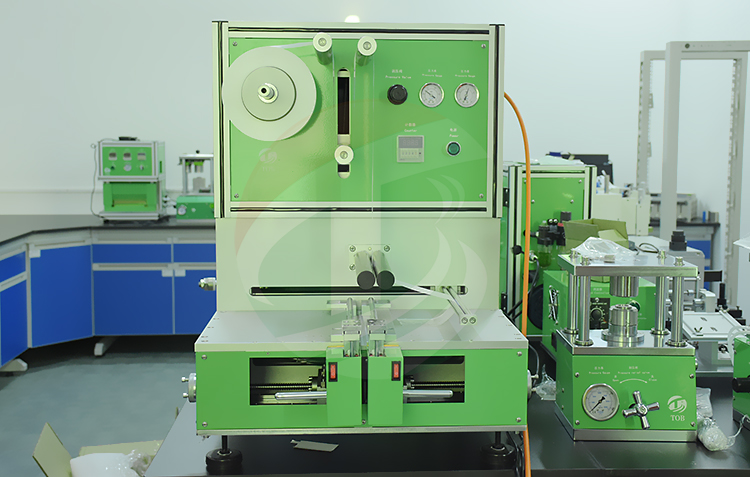

PRODUCT DISPLAY
PACKAGE
