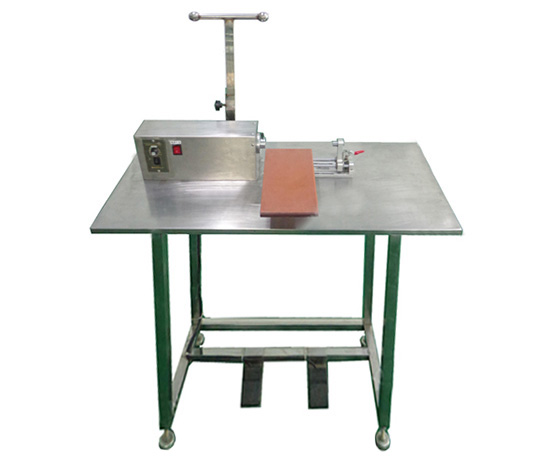

Manual winding machine
Specifications
① Overview of functions
1. For square and cylindrical battery cells winding molding;
2. Winding core speed can be adjusted, reversing foot switch control, easy to operate;
3. High-precision bearing, improve the precision winding batteries;
4.The operating table is stainless steel, beautiful appearance, overall appearance.
5 .Machine is small, the operation is simple and easy to adjust.
②The technical parameters
|
Winding speed
|
200~300 r / min (adjustable)
|
|
For square batteries size
|
20 ~ 135) * (5 ~ 120) * (5 ~ 10) mm
|
|
For cylindrical cells
|
φ30mm or less
|
|
Configure Power
|
220V / 50HZ
|
|
Dimensions (L*W*H)
|
1500 * 800 * 1200mm
|

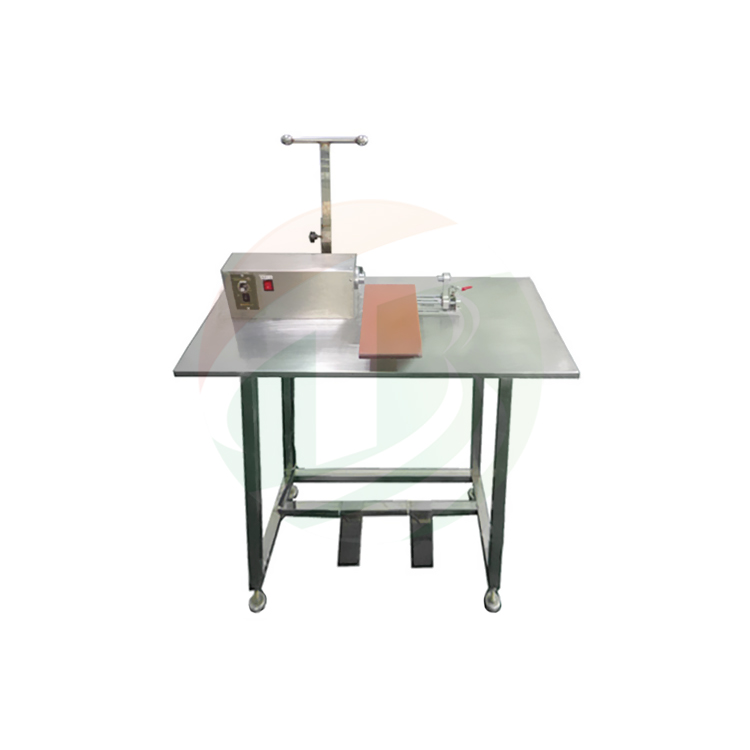

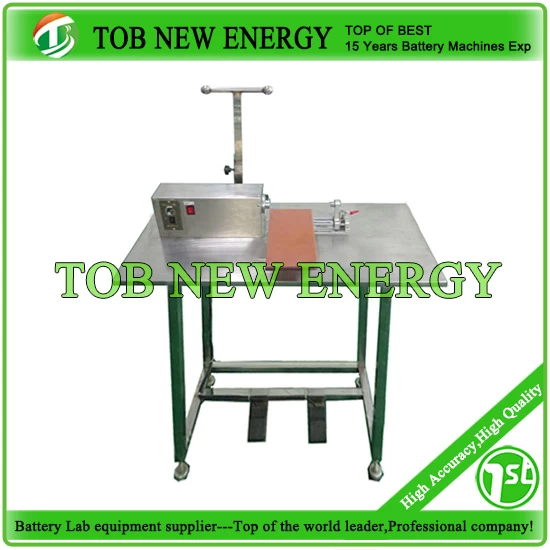

PRODUCT DISPLAY
