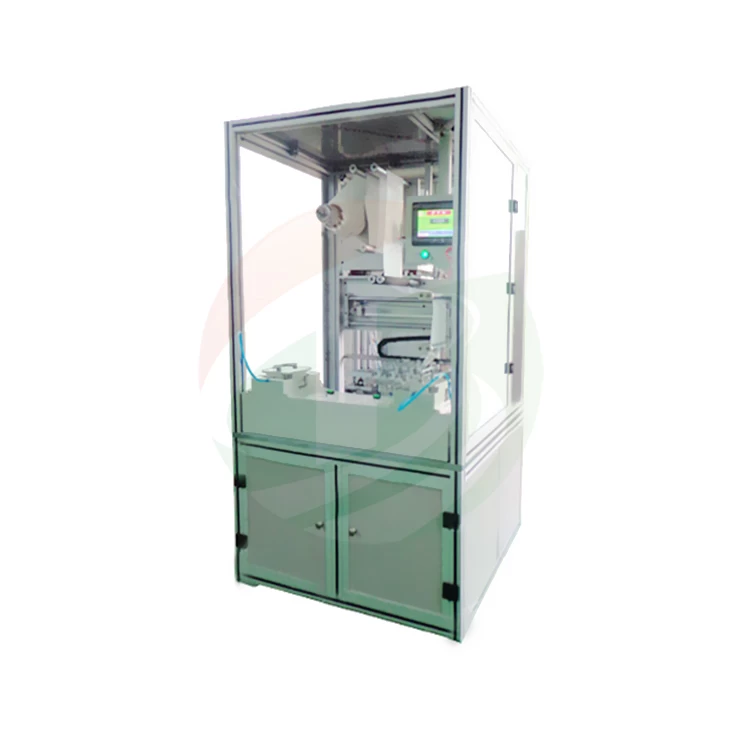

Semi-automatic lamination machine
Specifications
1.Overview of functions
Suitable for battery core lamination process, the positive and negative electrodes and a separator stacked together.When manually laminated positive and negative film to be placed on the stack pod,separator automatic unwinding, correction, precision rodless cylinder transverse movement around the separator,2 sets of loop pressure needle pressed around the pole piece, insulating film, laminate floors can be freely set. plc HMI system to achieve human-computer dialogue, easy to operate.
2.The technical parameters
|
Application pole piece length
|
100~350mm
|
|
Application pole piece width
|
100~250mm
|
|
Laminations accuracy
|
Between the pole pieces and the diaphragm ±0.4mm
|
|
Correction Accuracy
|
0.05mm
|
|
Configure Power
|
220V / 50Hz, 0.5kw
|
|
Dimensions (L*W* H)
|
960 * 900 * 1800mm
|
|
Weight
|
350kg
|
PRODUCT DISPLAY
