DeskTop Ultrasonic Spot Welding Machine For Al Tab And Aluminum Foil Welding
SPECIFICATIONS
1 TOB-VS-25Ultrasonic Spot Welding Machineis an ultrasonic metal welder designed for welding Li ion battery cathode electrode sheets aluminum foil and Al tab onto current collectors to prepare Li-Ion pouch cells and cylinder cell in R&D laboratories and production line.
2 TOB-VS-25 Ultrasonic welding machine is with semi-auto frequency tracking function, you don’t need to setting frequency always, simple operation.
|
Model
|
TOB-VS-25
|
|
Source voltage
|
AC220V, 50HZ, can be customized
|
|
Power
|
1500W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Type
|
Ultrasonic spot welding machine
|
|
Frequency
|
25KHZ
|
|
Welding time
|
0.05-9.99s
|
|
Air supply
|
0.2-0.8MPa
|
|
Welding effect
|
Single layer of aluminum foil and aluminum strip welding ,aluminum foil and aluminum belt melt, welding firmly
|
|
Welding ability
|
1 Materials : Battery cathode electrode. (single layer aluminum foil and single piece aluminum strip)
2 Aluminum foil thickness : 10-20um
3 Aluminum strip thickness : 0.08-0.12mm
4 Welding mode : according to your requirements
5 Welding area : can be customized
|
|
Dimension (L*W*H)
|
Power box : 400*170*300mm
Welding machine : 300*200*270mm
|

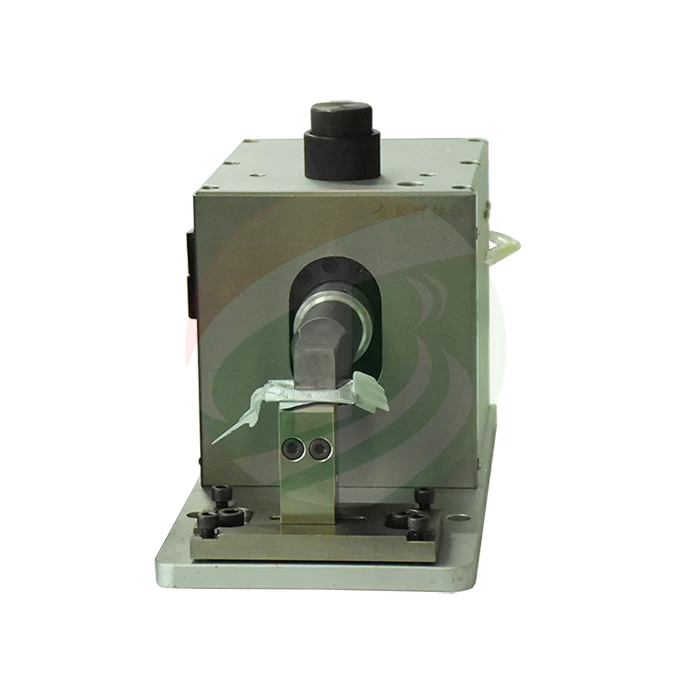

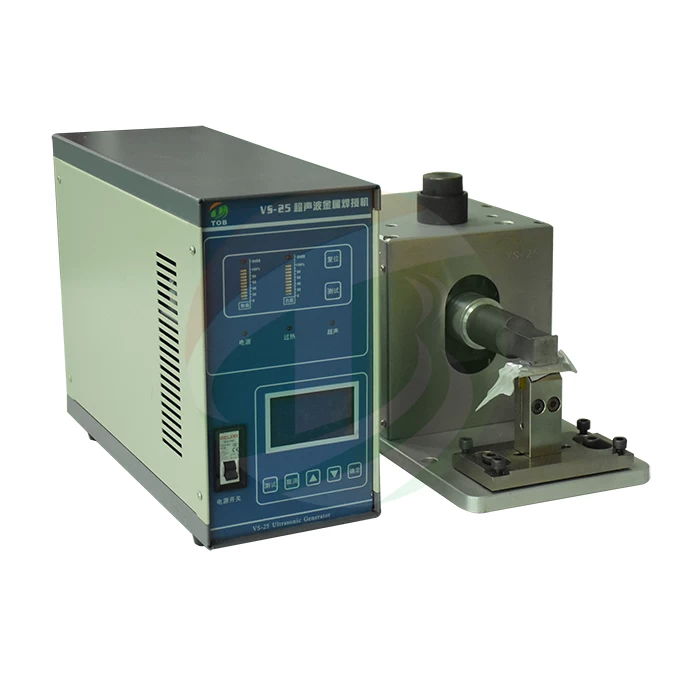

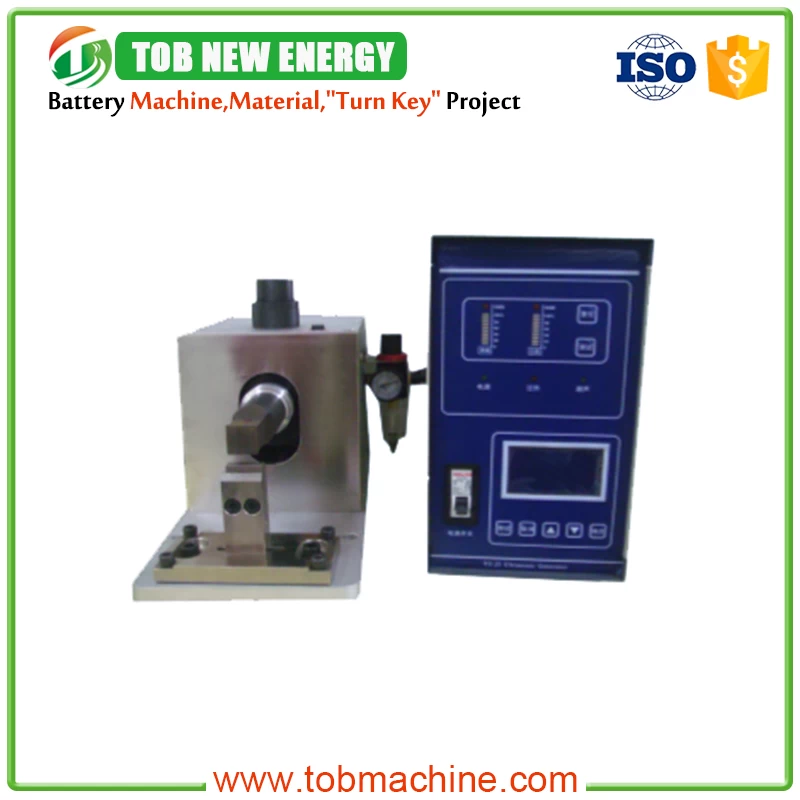

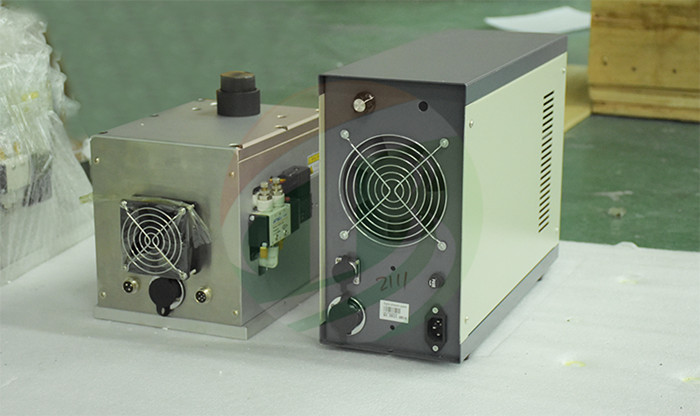

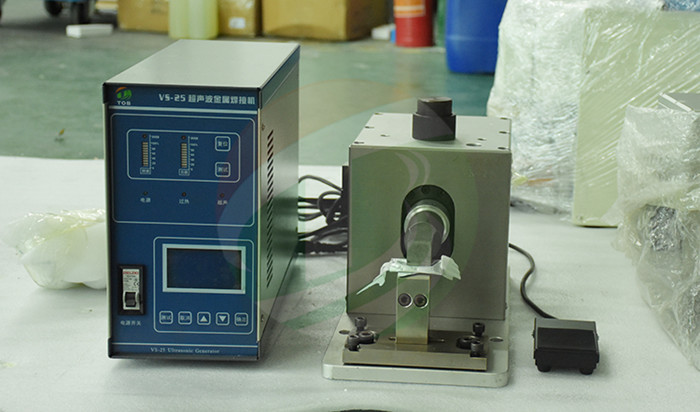

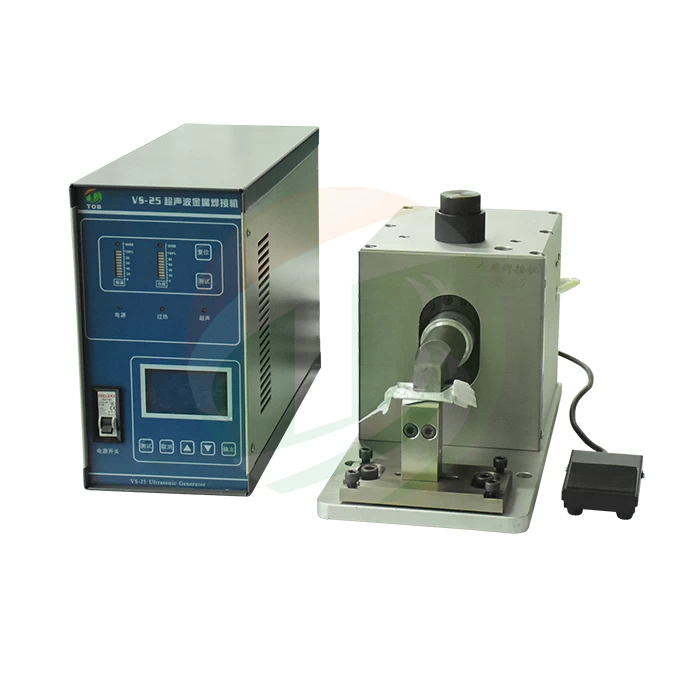

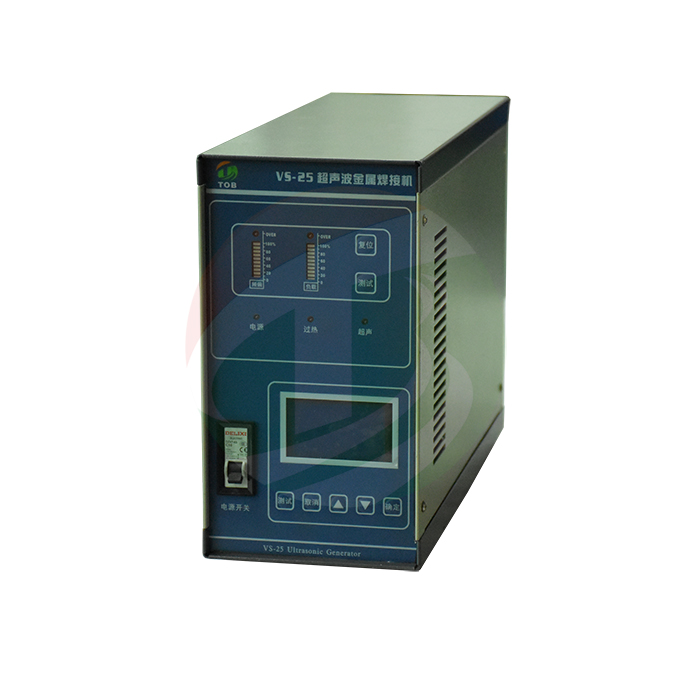

PRODUCT DISPLAY
18650 battery weling head
