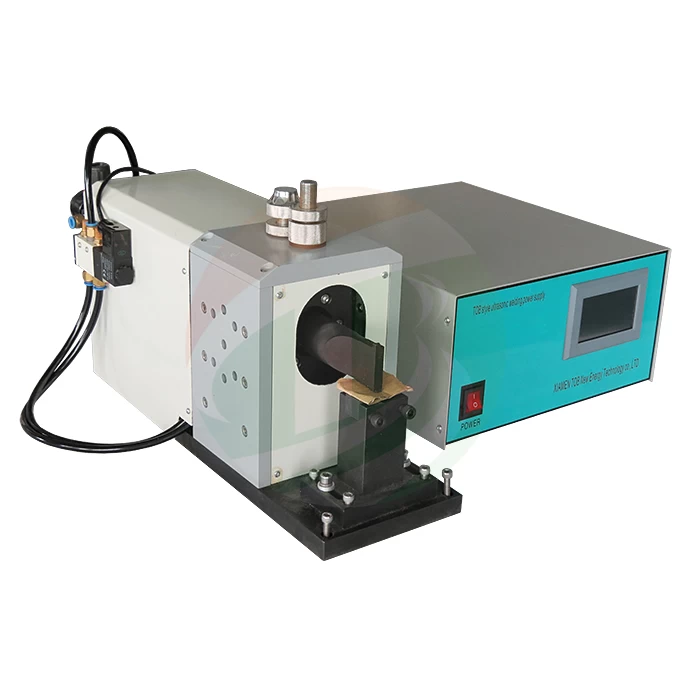

Desk-Top 40KHZ Ultrasonic Metal Welding Machine For Lithium Battery Anode Electrode Nickel Tab Welding With Copper foil
SPECIFICATIONS
TOB-USW-40KHZ Ultrasonic Metal Welding Machine is an ultrasonic metal welder designed for welding li ion battery anode electrode sheets aluminum and Ni tab onto current collectors to prepare Li-Ion pouch cells in R&D laboratories and production line.
|
Model
|
Battery Spot Welding Machine For Anode TOB-USW-40KHZ
|
|
Source voltage
|
110V AC or 220V AC 50/60Hz
|
|
Power
|
800W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Type
|
Ultrasonic metal welding machine
|
|
Frequency
|
40KHZ
|
|
Control mode
|
Pneumatic, with air supply 0.5-0.7Mpa
|
|
Welding thickness
|
0.09mm～0.012mm copper foil+0.1mm nickel tab
|
|
Welding size
|
Standard size is 3*3mm*3, can also customized according request
|
|
Working humidity
|
35%-85%
|
|
Working temperature
|
0℃-40℃
|
|
Structure
|
Adopt the solid crystal type, with functions of automatic frequency
trackingWith overcurrent, overheating, mismatch alarm
|
|
Dimension
|
Controller: 380mm(L) * 340mm(W) *250mm(H)
Welder: 490mm(L) *170mm(W) *240mm(H)
|
|
Weight
|
Welder : 40kg, Controller : 10kg
|
