Vacuum Mixing Machine 1-5 Litres

Vacuum Mixing Machine 1-5 Litres



5L Electric Vacuum Mixing Machine Used For Lithium Cathode/Anode Slurry Mixing Process For Lab

SPECIFICATIONS


1 TOB-SFM-6Evacuum mixing machineis designed for making large batch of chemical compound via blending and mixing in single container under vacuum driven by electricity only.

2 Thevacuum mixing machineis programmable in speed, time, and rotating direction, and water cold stainless steel tank promise high efficient in mixing.

3 The TOB-SFM-6Evacuum mixing machineis excellent for preparing LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity.

Model

Vacuum mixing machine  TOB-SFM-6E


Features

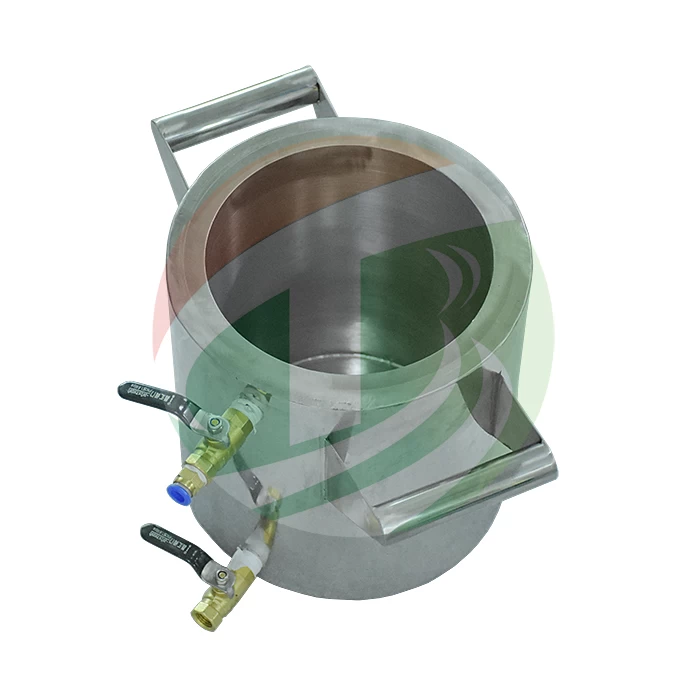

5 liter 304 stainless steel container with double layer water cooling jacket.

Advanced T type sealing to keep vacuum pressure up to 12 hours.

Double Step Rotary Vane Vacuum Pump, is included for immediate operation

Container is opened or closed by electric motor (no air pump is required any more)

Programmable controller to set time, speed, rotation direction.

Voltage

110-240V AC single Phase, 50/60Hz

 (build-in frequency converter to ensure the mixer can be used under 50 or 60 Hz)

Rate Power

750 W

Rotor Rod Speed

0 -1400 RPM variable

Lifting

Electric motor ( no compress are pump required any more )

Water Requirement

16 L/min water flow required to cool mixing tank

Cooling water 1/4'' Inlet and outlet on the back of the mixing tank (with build-in cooling jacket)

Suggest you order recirculating water chiller by click picture picture left to save water

(water chiller is not included)

Vacuum Pump

Double Step Rotary Vane Vacuum Pump, is included

Vacuum gauge is built in with minimum vacuum level -0.1 MPa

304SS Container Size

270mm O.D. x 210mm I.D. x 230mm H

Dimensions

580mm(L) x 320mm(W) x 1340mm(H)

Net Weight

119 kg (262 lbs)

Warranty

One year limited warranty with lifetime support


PRODUCT DISPLAY

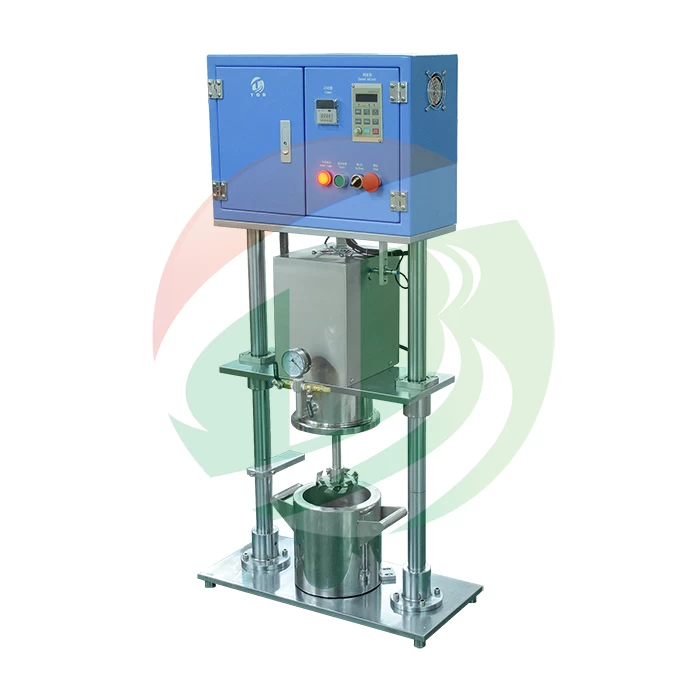

mixer machine

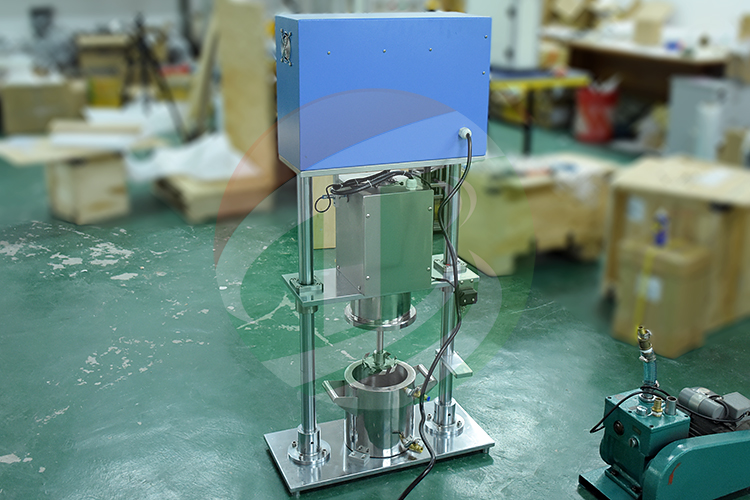

mixer machine

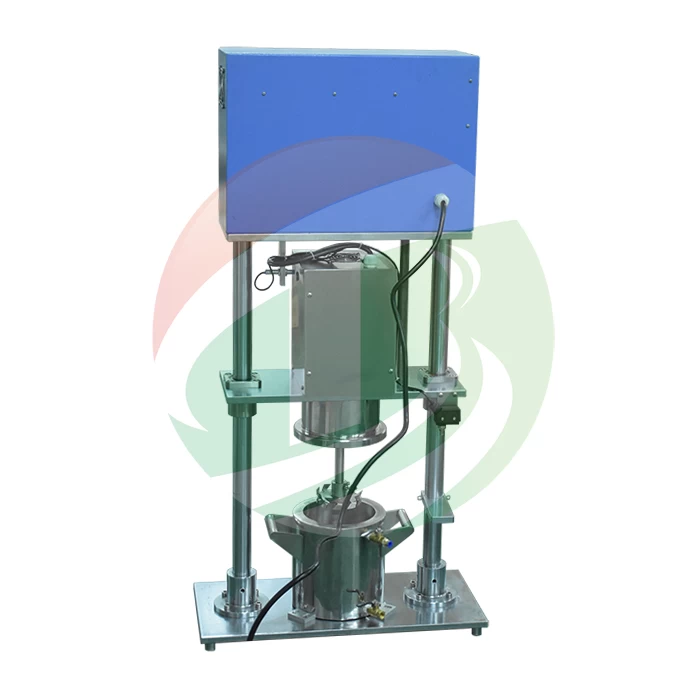

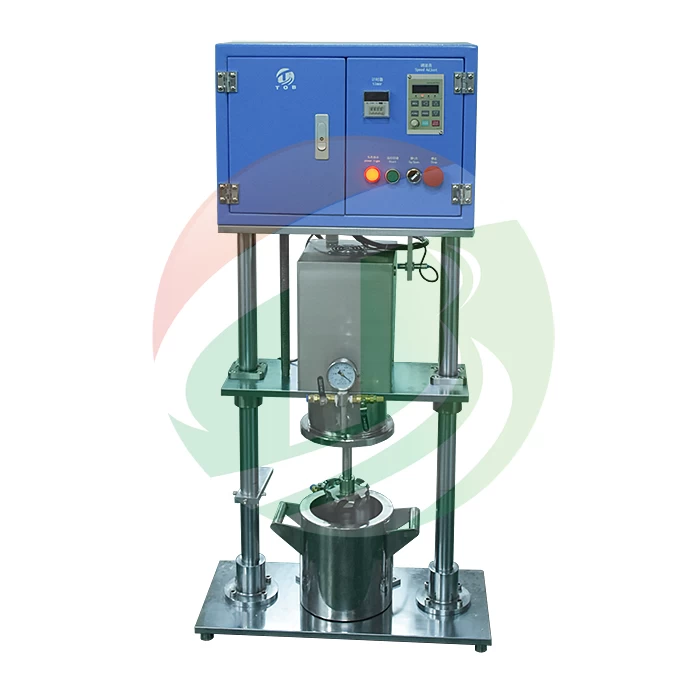

mixer machine


PACKING


mixer machine
