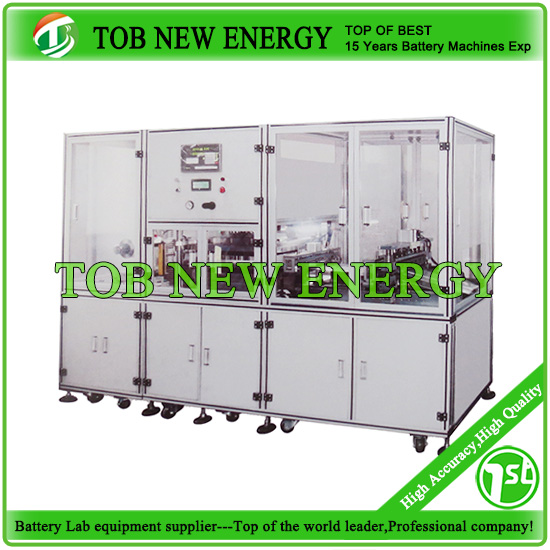

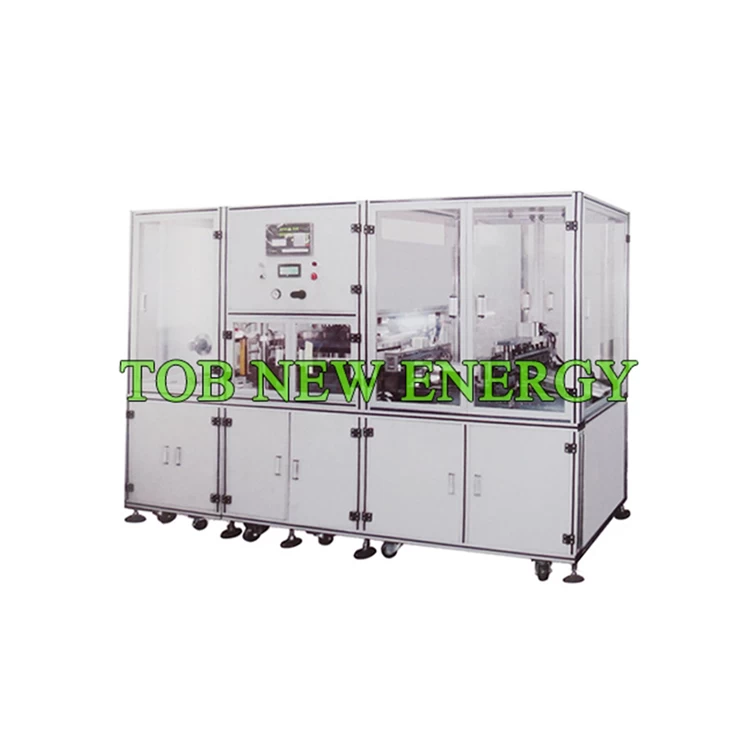

Automatic Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films
SPECIFICATIONS
1 This machine is used for lithium polymer battery pouch continuous and automatic punching forming.
2 Working process :
|
Model
|
TOB-05-200-AFCF
|
|
Source voltage
|
AC 220V, 50HZ
|
|
Power
|
1000W
|
|
Air compression
|
≥0.6MPa, 15L/S
|
|
Operating platform size
|
400*300mm
|
|
Feeding width
|
Max : 300mm
|
|
Cutting length
|
Adjustable
|
|
Aluminum laminated film thickness
|
0.11-0.2mm
|
|
Cylinder pressure
|
10T
|
|
Material roller diameter
|
Max : 250mm
|
|
Dimension
|
1950*950*1860mm
|
|
Weight
|
1T
|
|
Depth of parallelism
|
0.02mm
|
|
Aluminum film stretching force
|
0-5N, adjustable
|
|
Punching depth
|
0-6mm
|
|
Knife lift
|
5 000 000 times
|
|
Output
|
400-800EA/H
|
PACKAGE AND SHIPPING
|
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
|
SERVICES
|
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.
|
