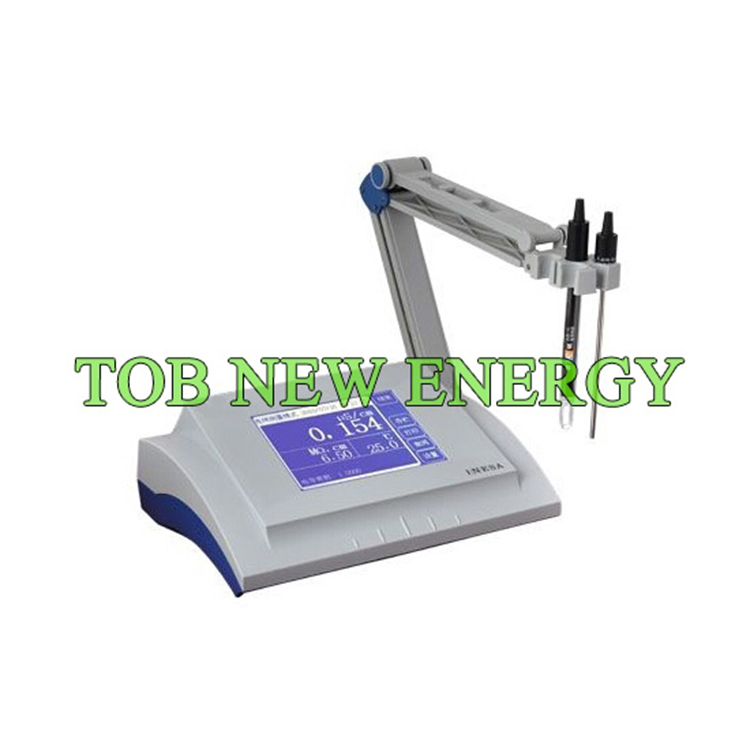

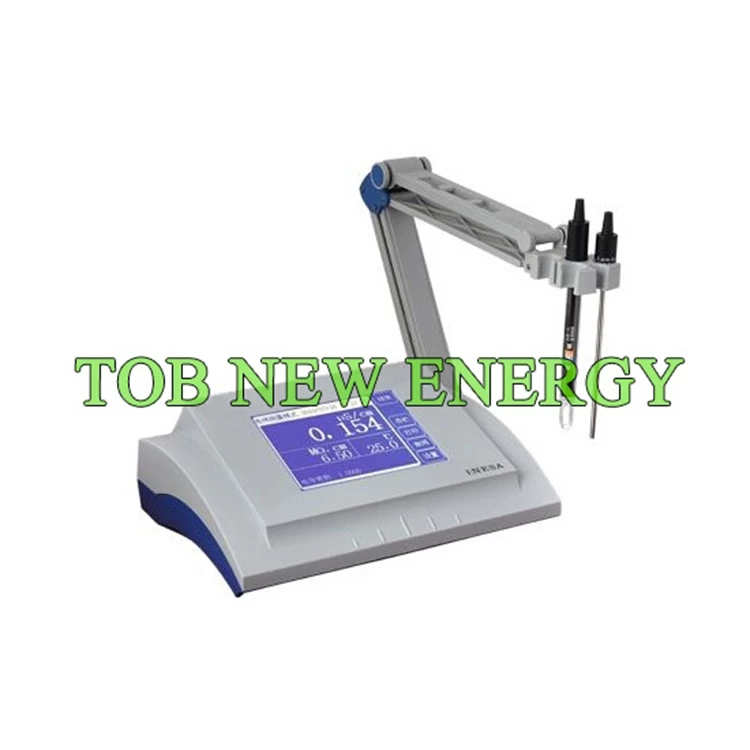

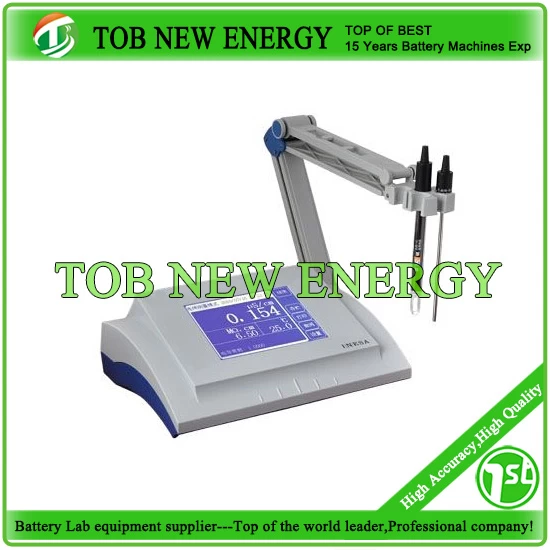

Electrical Conductivity Meter With Temperature Compensation Function（-5.0～135.0）℃
SPECIFICATIONS
This TOB-DDSJ-318 electrical conductivity meter Can test Electrical conductivity, Electrical resistivity, TDS, Salinity, Temperature for （-5.0～135.0）℃
|
Model
|
Conductivity Meter With Temperature Compensation TOB-DDSJ-318
|
|
Source voltage
|
AC 220V/110V, 50/60HZ
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Advantages
|
1 Can test Electrical conductivity, Electrical resistivity, TDS, Salinity, Temperature
2 Adopt microprocessor technology, with automatic temperature
compensation, automatic calibration, automatic switch range, etc
3 Big screen, blue backlight, double digital display LCD
4 With standard RS - 232 and USB interface, can connect with PC
|
|
Testing range
|
Electrical conductivity : 0.000μS/cm～199.9ｍS/cm
Electrical resistivity : 5.00Ω.cm～20MΩ.cm
TDS : 0.000 mg/L～19.99g/L
Salinity : (0.0～8.00)%
Temperature :（-5.0～135.0）℃
|
|
Resolution ratio
|
Electrical conductivity : 0.001μS/cm、0.1ｍS/cm
Electrical resistivity : 0.1Ω.cm
TDS : 0.001 mg/L
Salinity :0.01%
Temperature : 0.1℃
|
|
Testing error
|
Electrical conductivity : ±0.5％FS
Electrical resistivity : ±0.5％FS
TDS : ±0.5％FS
Salinity :±0.1%
Temperature : ±0.3℃
|
|
Constant conductance pool with
best conductivity measurement range
|
|
Electrode constant
(cm-1)
|
0.01
|
0.1
|
1
|
10
|
|
Test range
(μS/cm)
|
0.-19.99μS/cm
|
2-199.9μS/cm
|
20.0μS/cm-
19.9ms/cm
|
200μS/cm-
199.9ms/cm
|
|
|
Temperature compensation scope
|
（-5.0～135.0）℃
|
|
Dimension(L*W*H)
|
250×195×100mm
|
|
Weight
|
About 2kg
|
