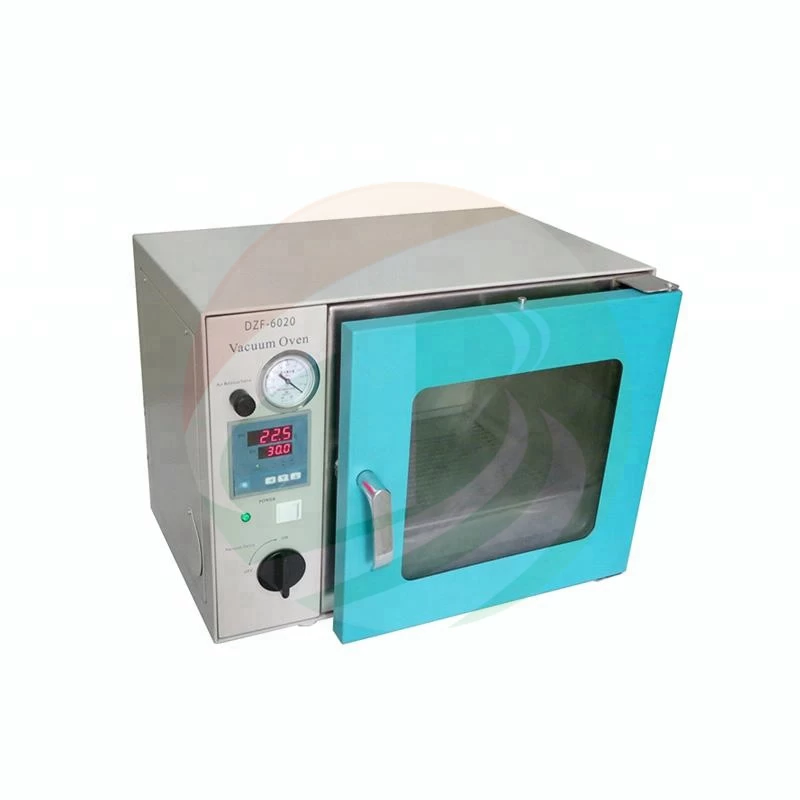

25L 250°C DZF-6020(1) Vacuum Lab Oven With Optional Vacuum Pump And 30 Segment Programmable Temperature Controller
SPECIFICATIONS
1 The Vacuum Oven dzf 6020(1) Is a laboratory vacuum oven mainly used For scientific research units, specialty universities, laboratories, industrial mining enterprises etc and production field for materials drying and heat treatment under the vacuum state.
2 The Vacuum Oven dzf 6020(1) for lithium battery field mainly used for lithium battery materials, electrode and battery core vacuum drying.
3 Use Vacuum Oven dzf 6020(1) for material heating drying under vacuum states has advantages :
3.1 Can reduce the drying temperature
3.2 Avoid some objects heating to oxidation
3.3 Avoid heating air to kill living cells
3.4 No dust damage
|
Model
|
Vacuum oven DZF 6020 TOB-DZF-6020(1)
|
|
Source voltage
|
AC 220V/110V, 50HZ
|
|
Power
|
500W
|
|
Warranty
|
One Year Limited Manufacture Warranty with Life Time Support
|
|
Temperature range
|
RT+10-250℃, with 30 segment programmable temperature controller
|
|
Temperature fluctuation
|
±0.5℃
|
|
Vacuum degree
|
-0.1MPa
|
|
Inner box size(L*W*H)
|
300*300*270mm
|
|
Dimension(L*W*H)
|
580*450*450mm
|
|
Temperature controller
|
High precision microcomputer temperature controller,
accurate temperature control, working temperature can be set,
error alarm function
|
|
Inner box material
|
304 stainless steel
|
|
Outside shell material
|
High quality cold-rolled steel plate electrostatic spray
|
|
Box door
|
Toughened hulletproof double glass door
|
|
Safety device
|
With over temperature protection, grounding etc
|
|
Shelf
|
1pcs
1 Solid stainless steel shelf, guarantee the oven temperature

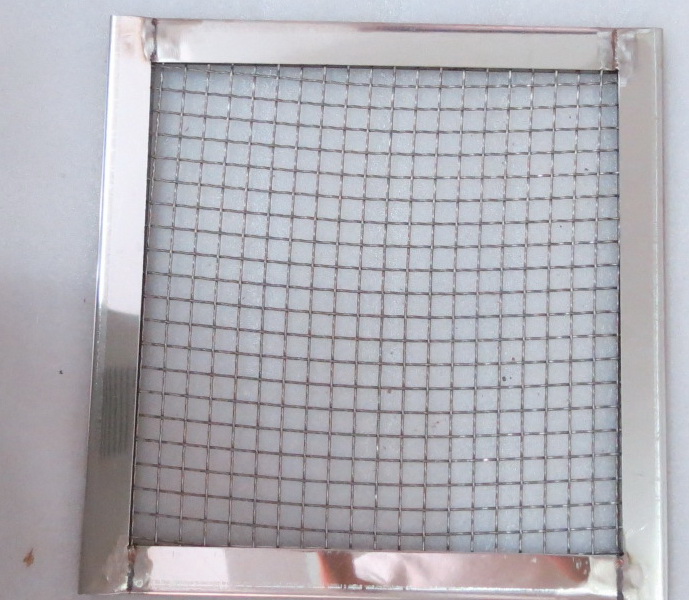

2 Mesh stainless steel shelf For air cycle
|
PRODUCT DISPLAY

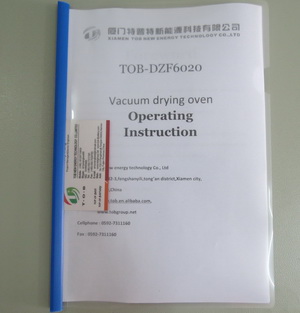

Mesh shelf for vacuum oven 6020 Operating manual for vacuum oven dzf 6020
Supply power plug as request

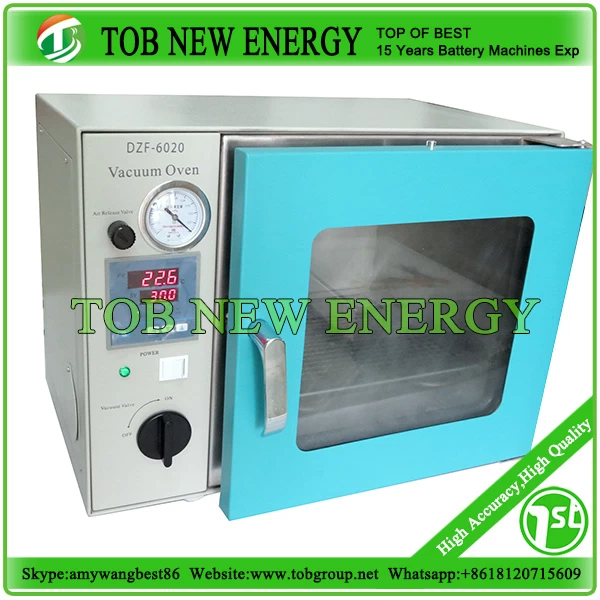

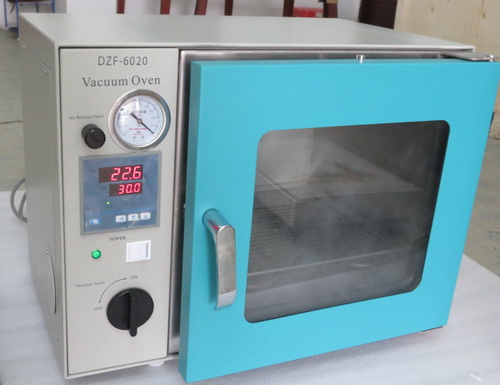

Vacuum oven dzf 6020
