EE30 High Frequency Horizontal Transformer Bobbin with 6+6 Pins Bobbin

EE30 horizontal transformer bobbin.UL REC:94V-0. 6+6 Pins phenolic transformer bobbin.Parallel Distance=39.6mm. DIP bobbin. Bobbin Size=46.6mmX30mmX26.5mm.

Double Slots EE30 Transformer Bobbin 4+4 Pins Horizontal Bobbin

EE30 double slots bobbin transformer bobbin.UL REC:94V-0. 4+4 Pins horizontal transformer bobbin.Parallel Distance=20.7mm. DIP bobbin. Bobbin Size=28.4mmX25.5mmX24.25mm.

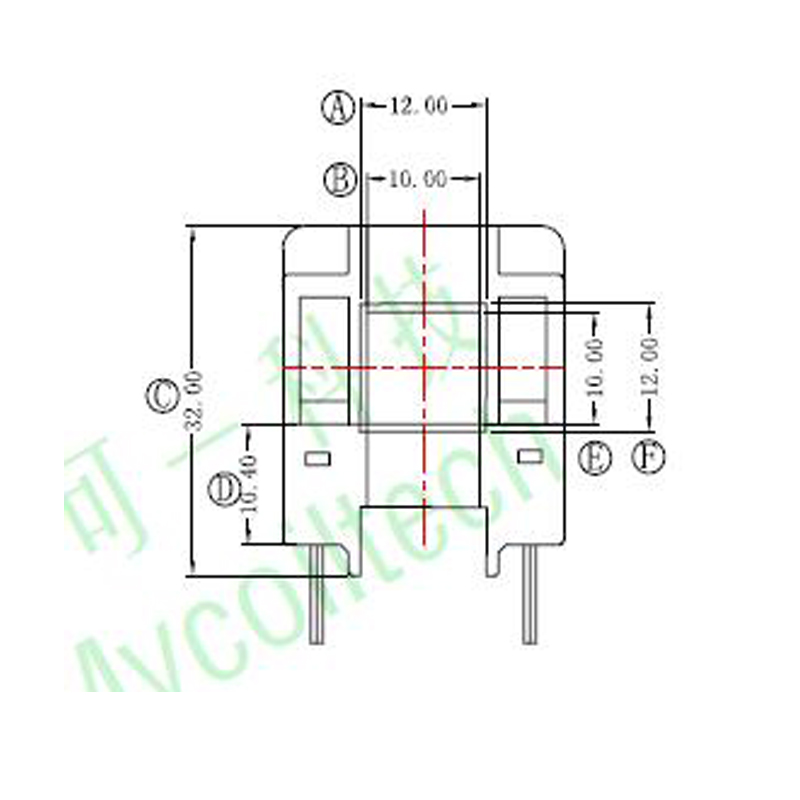

EE35 Common Mode Choke Inductor Bobbin

EE35 2+2 pin bobbin for inductor. Horizontal EE35 bobbin. Bobbin Size=26.3mmX25.2mmX32.0mm. Pin Pitch=19.5mm. Parallel Distance=21.6mm. DIP transformer bobbin. EE35 phenolic/PET material bobbin.

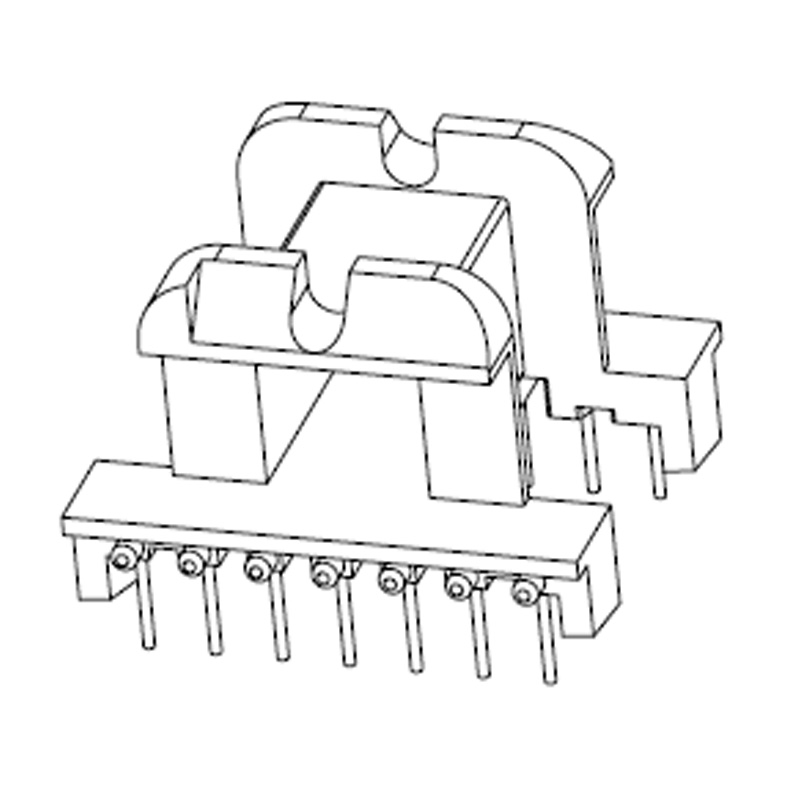

7+7 Pins EE40 Bobbin High Frequency Horizontal Transformer Bobbin

EE40 horizontal transformer bobbin. DIP transformer bobbin. Parallel Distance=25.8mm. Pin Pitch=5.0mm. UL REC:94V-0 Bobbin Size=38.5mmX33.5mmX27.9mm. 7+7 PinsEE40 transformer bobbin.

4+4 Pin EE19 Electronic Transformer Bobbin Horizontal Coil Former

4+4 pins horizontal coil former. Phenolic material bobbin. Pin Pitch=5mm, Parallel Distance=12.5mm. DIP bobbin. Bobbin Size=19.3mmX17mmX16.2mm. UL REC:94V-0.

4+6 Pins EE19 Coil Former Double Slots High Frequency Transformer Bobbin

EE19 horizontal transformer bobbin. DIP transformer bobbin. Parallel Distance=12mm. Pin Pitch1=2.7mm. Pin Pitch2=3.5mm. Bobbin Size=19.2mmX15.4mmX17.7mm. 10 Pins EE19 coil former.

4+2 Pins EE19 Horizontal Coil Former for High Frequency Transformer

EE19 single slot transformer bobbin. Phenolic bobbin. Pin Pitch=5mm. 4+2 pins EE19 coil former. Bobbin Size=21.3mmX14mmX16mm. UL REC: 94V-0

5+5 Pins EE19 Vertical High Frequency Transformer Bobbin Dip Coil Former

EE19 vertical transformer bobbin. 5+5 pins coil former. Parallel distance=13mm. Pin Pitch=3.8mm. Dip bobbin. Bobbin Size=20mmX16.2mmX22.8mm. UL REC: 94V-0

EE19 Coil Former 5+5 Pins Vertical Bobbin Phenolic Winding bobbin

5+5 pins EE19 transformer bobbin. Vertical coil former. Parallel distance=12.7mm. Pin Pitch=3.8mm. Dip bobbin. Bobbin Size=20mmX16.5mmX15.7mm. UL REC: 94V-0

EE19 5+5 Pins Horizontal Transformer Bobbin for Power Transformer

EE19 high frequency transformer bobbin. Horizontal coil former. Parallel distance=24.1mm.Pin Pitch1=3.5mm.Pin Pitch2=4.5mm Bobbin Size=30.1mmX20.8mmX15.5mm. UL REC: 94V-0

EE19 Vertical High Power Transformer Bobbin 3+3 Pins Winding Bobbin

EE19 vertical transformer bobbin. 3+3 pins coil former. Parallel distance=10.5mm.Pin Pitch=4.75mm. Dip bobbin. Bobbin Size=15.5mmX15mmX19.3mm. UL REC: 94V-0

EE19 Vertical Type 3+3 Pins High Frequency Transformer Bobbin for Ferrite Core

3+3 pin EE19 transformer bobbin. Vertical type bobbin. Parallel distance=12.5mm.Pin Pitch=6.4mm. Dip bobbin. Bobbin Size=18.9mmX18.3mmX18.3mm. UL REC: 94V-0

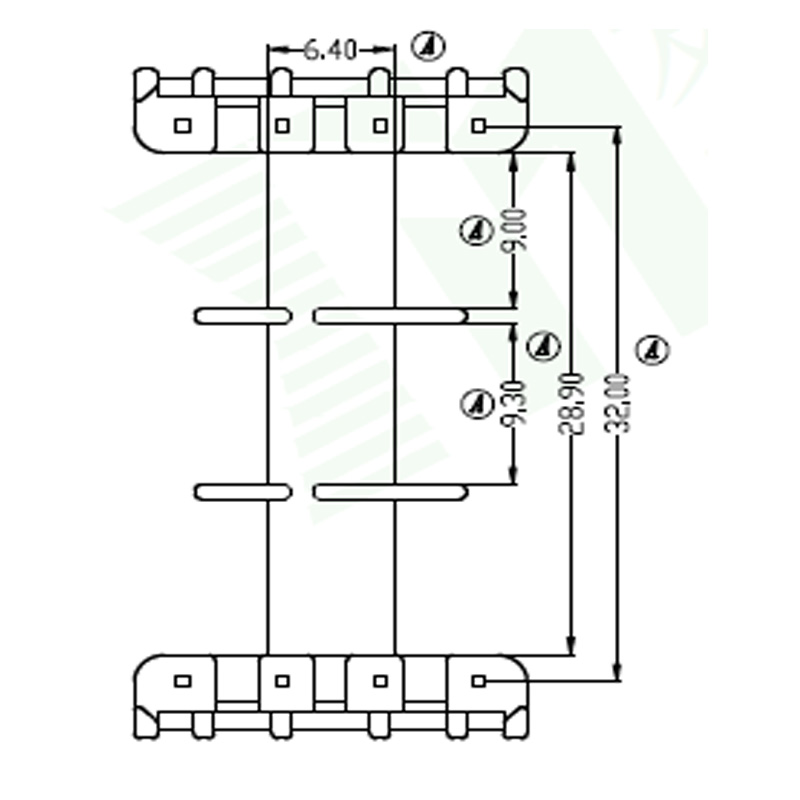

EE19 Multi Section Transformer Bobbin 4+4 Pin Horizontal Winding Bobbin

4+4 pin EE19 transformer bobbin. Horizontal type bobbin. Parallel distance=32mm. Pin Pitch=6.4mm. Dip bobbin. Bobbin Size=30.7mmX13.8mmX17.65mm. UL REC: 94V-0

EE19 Vertical Coil Former 4+4 Pins High Frequency Transformer Bobbin

4+4 pin vertical coil former. Phenolic material bobbin. Pin Pitch=5mm, Parallel Distance=15mm. DIP bobbin. Bobbin Size=18.9mmX18.9mmX15.9mm. UL REC:94V-0.

5+5 Pin EE19 Transformer Bobbin Vertical Coil Former

5+5 pin EE19 vertical transformer bobbin. Pet material coil former. Parallel distance=15mm. Pin Pitch=4mm. Bobbin Size=19mmX19mmX15mm. Dip bobbin. UL REC: 94V-0

Double Slots EE19 Horizontal Bobbin for High Voltage Transformer

EE19 pin 4+4 transformer bobbin. Horizontal type bobbin. Multi section bobbin made of phenolic material. Parallel distance=13mm. Pin Pitch=5mm. Dip bobbin. Bobbin Size=19mmX16mmX15mm. UL REC: 94V-0

EE19 Horizontal Bobbin for Transformer Filter Ferrite Core

EE19 pin 4+4 transformer bobbin. Horizontal transformer bobbin. Phenolic material bobbin. Pin Pitch=3.81mm, Parallel Distance=12.7mm. DIP bobbin. Bobbin Size=19mmX17.8mmX15.8mm. UL REC:94V-0.

EE19 High Frequency Horizontal Bobbin Single Slot Pin 5+5 Bobbin

EE19 horizontal type transformer bobbin. EE19 transformer bobbin 10 pin. Phenolic material bobbin. Pin Pitch=3mm, Parallel Distance=11.2mm. DIP bobbin. Bobbin Size=19.2mmX17.8mmX13.9mm. UL REC:94V-0.

EE19 Transformer Bakelite Bobbin 5+5 Pin Vertical Coil Bobbin

5+5 pin EE19 transformer bobbin. Vertical EE19 bobbin made of FR530 material. Parallel distance=15mm. Pin Pitch=4mm. Bobbin Size=19mmX19mmX15mm. Dip bobbin. UL REC: 94V-0

Three Slots EE19 Bobbin High Frequency Horizontal Bobbin 4+4 Pin

EE19 bakelite transformer bobbin. Multi section transformer bobbin. 4+4 pin orizontal bobbin. Pin Pitch=3.25mm. Dip bobbin. Bobbin Size=38.5mmX20mmX17.6mm. UL REC: 94V-0

EE19 Vertical High Frequency 4+3 Pin Bobbin For Transformer Ferrite Core

3+4 pin EE19 coil former. Vertical type coil former. 70G33L material bobbin. Pin Pitch=4mm, Parallel Distance=15mm. DIP bobbin. Bobbin Size=14.5mmX14.2mmX16.4mm. UL REC:94V-0.

High Frequency Horizontal EE19 3+3 Pin Coil Former

Double slots EE19 transformer bobbin. Horizontal 3+3 pin bobbin made of PBT material. Parallel distance=13mm. Dip bobbin. Bobbin Size=18.8mmX15mmX16.2mm. We can make bobbin tooling. UL REC: 94V-0

EE19 Transformer Bobbin for Power Transformer 3+3 Pin Double Slots Coil Former

3+3 pin EE19 transformer bobbin. Horizontal winding bobbin. Double slots nylon material bobbin. Parallel distance=12.5mm. Dip bobbin. Bobbin Size=1mmX14.3mmX16.2mm. We can make bobbin tooling. UL REC: 94V-0

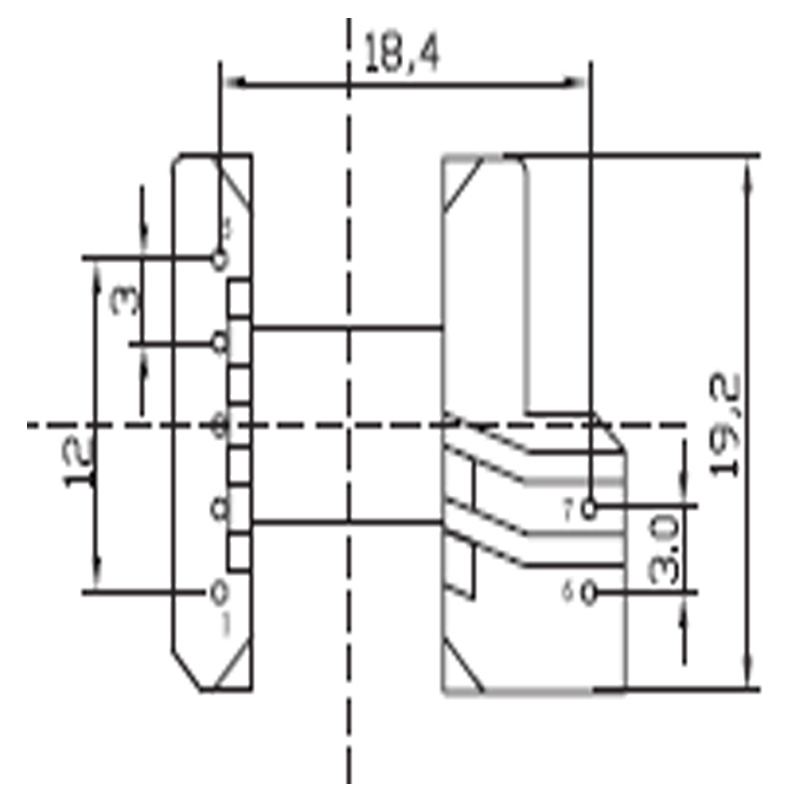

EE19 PCB Mounting Transformer Bobbin 5+2 Pins Horizontal Coil Former

EE19 5+2 pin transformer bobbin. EE19 horizontal winding bobbin. Phenolic material bobbin. Pin Pitch=3mm, Parallel Distance=18.4mm. DIP bobbin. Bobbin Size=22.55mmX19.2mmX13.7mm. UL REC:94V-0.

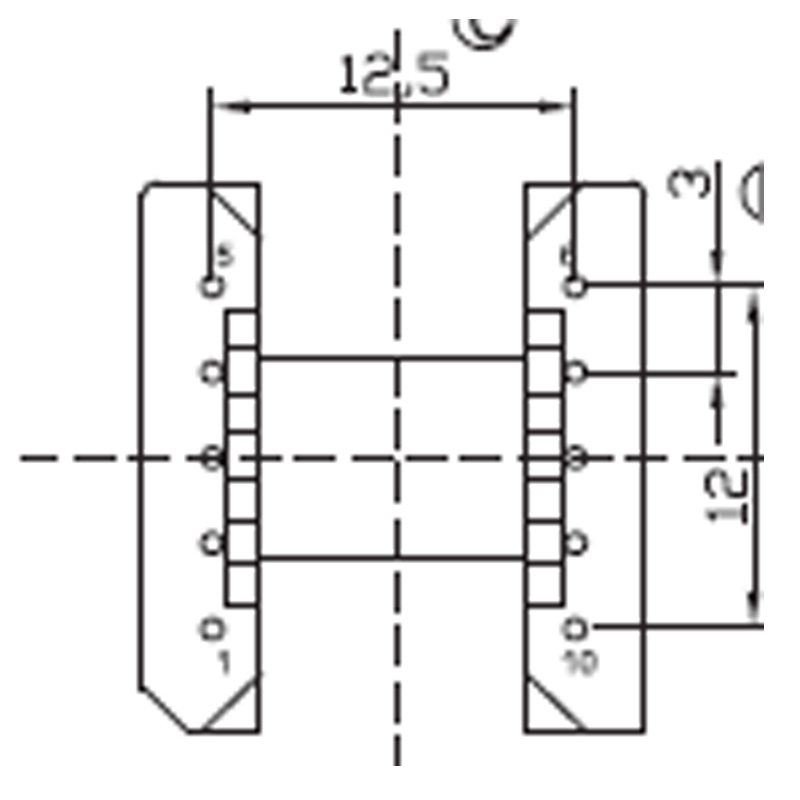

High Voltage Transformer Bobbin 5+5 Pin EE19 Horizontal Bobbin

EE type EE19 transformer bobbin. Horizontal EE19 transformer bobbin. 5+5 pin coil former. Phenolic material bobbin. Pin Pitch=3mm, Parallel Distance=12.5mm. DIP bobbin. UL REC:94V-0.

EE19 Horizontal High Frequency Transformer Bobbin Bakelite Bobbin 4+4 Pin

4+4 pin EE19 transformer bobbin. Horizontal transformer bobbin. Phenolic material bobbin. Pin Pitch=4.7mm, Parallel Distance=13mm. DIP bobbin. Bobbin Size=18.4mmX16mmX13.1mm. UL REC:94V-0.

EE19 Vertical Transformer Bakelite Bobbin for Ferrite Core Pin 5+5

Vertical EE19 transformer bobbin. 5+5 pin EE19 bobbin made of phenolic material. Parallel distance=10.2mm. Pin Pitch=4mm. Bobbin Size=22.1mmX15.5mmX16.9mm. Dip bobbin. UL REC: 94V-0

EE19 Vertical Transformer Bobbin Pin 4+6 High Frequency Coil Bobbin

4+6 pin EE19 transformer bobbin. Vertical type coil former. Phenolic material bobbin. Pin Pitch1=2.8mm. Pin Pitch2=3.5mm. Parallel Distance=12mm. DIP bobbin. Bobbin Size=16.2mmX13.8mmX30.65mm. UL REC:94V-0.

EE19 Vertical Flyback Transformer Bobbin 3+4 Pin Coil Former

EE19 coil former 3+4 pin. Vertical type winding bobbin. Phenolic material bobbin. Pin Pitch=4mm, Parallel Distance=11mm. DIP bobbin. Bobbin Size=14.7mmX14.2mmX15.3mm. UL REC:94V-0.

EE19 Bobbin 4+4 Pin For Transformer Horizontal Winding Bobbin

EE19 8pins transformer bobbin. Horizontal coil former. Phenolic material bobbin. Pin Pitch=5mm, Parallel Distance=17.7mm. DIP bobbin. Bobbin Size=21.4mmX18.8mmX16.2mm. UL REC:94V-0.

EE19 Vertical Bobbin For Switching Power Transformer Pin 4+6

EE19 flyback transformer bobbin. 4+6 pin vertical coil bobbin. Phenolic material bobbin. Pin Pitch1=2.7mm. Pin Pitch2=3.5mm. Parallel Distance=12mm. DIP bobbin. Size=17.7mmX15.6mmX20.8mm. UL REC:94V-0.

EE19 High Frequency Transformer Bobbin Vertical Bobbin Pin 2+2

2+2 pin EE19 transformer bobbin supplier.Vertical typeEE19 bobbin made of phenolic material. Parallel distance=11mm. Pin Pitch=10mm. Bobbin Size=13.8mmX13.3mmX12.03mm. Dip bobbin. UL REC: 94V-0

EE19 Single Slot Vertical High Frequency Transformer Bobbin

EE19 transformer bobbin pin 2+2. Vertical type transformer bobbin manufacture. Phenolic material bobbin. Parallel distance=10mm. Pin Pitch=7mm. Bobbin Size=13.8mmX13.3mmX12.03mm. Dip bobbin. UL REC: 94V-0

Single Phase EE19 Bobbin 2+2 Pin Power Transformer Bobbin

EE19 vertical bobbin with 2+2 pin. Single slot transformer bobbin. Phenolic material coil bobbin. Parallel distance=10.5mm. Pin Pitch=9.5mm. Bobbin Size=13.8mmX13.3mmX12.03mm. Dip bobbin. UL REC: 94V-0

EE19 Vertical Toroidal Transformer Bobbin with 2+2 Pin

High power EE19 transformer bobbin. 2+2 pin single slot transformer bobbin. Vertical type winding bobbin. Phenolic material coil bobbin. Parallel distance=12.1mm. Pin Pitch=10.1mm. Size=15.35mmX13.5mmX13.75mm.
