EE20 Ferrite Core Bobbin High Frequency Horizontal Coil Bobbin

Electronic transformer bobbin EE20. Horizontal EE20 coil former. PA66 material transformer bobbin. Pin Pitch=5mm. DIP bobbin. Parallel Distance=15mm. Bobbin Size=20.5mmX20.2mmX13.55mm. UL REC:94V-0.

EE20 3+3 Pin Vertical High Frequency Flyback Transformer Bobbin

EE20 bobbin 3+3 pin. EE20 vertical type coil former. FBT material transformer bobbin. Parallel Distance=15.5mm. Pin Pitch=6.25mm. DIP bobbin. Bobbin Size=20mmX16.8mmX17.9mm. UL REC:94V-0.

EE20 Horizontal Coil Bobbin For PCB Mounting Transformer

EE20 horizontal phenolic bobbin. EE20 4+4 pins coil former. Bobbin Pin Pitch=5mm. DIP transformer bobbin. Parallel Distance=15mm. Bobbin Size=20mmX19.5mmX15.5mm. UL REC:94V-0.

High Frequency EE20 Switch Mode Transformer Bobbin

EE20 6+8 pin horizontal bobbin. EE20 phenolic coil former. Bobbin Pin Pitch1=5mm. Bobbin Pin Pitch2=2.5mm. DIP transformer bobbin. Parallel Distance=20mm. Bobbin Size=24.8mmX20.9mmX15.4mm. UL REC:94V-0.

EE25 Vertical Bakelite 3+2Pin Transformer Bobbin

EE25 3+2pin vertical coil bobbin. EE25 phenolic coil former. Bobbin Size=18.5mmX18.3mmX15.3mm. Pin Pitch1=6.3mm. Parallel Distance=12.5mm. DIP transformer bobbin. UL REC:94V-0.

EE25 High Frequency Transformer Vertical Bobbin 4+4 Pin

EE25 bobbin for LED drive transformer. EE25 phenolic transformer bobbin. Bobbin Size=24.8mmX17.5mmX19.9mm. Pin Pitch=5mm. Parallel Distance=12.5mm. DIP transformer bobbin. UL REC:94V-0.

EE25 Vertical Pin 4+4 Bobbin For Switching Mode Transformer

EE25 high frequency bobbin pin 4+4. EE25 T375HF material coil former. Bobbin Size=25mmX17.7mmX20.3mm. Pin Pitch=5mm. Parallel Distance=12.5mm. DIP transformer bobbin. UL REC:94V-0.

EE25 Ferrite Core Bobbin For Power Transformer

EE25 vertical bobbin pin 5+5. EE25 phenolic transformer bobbin. Bobbin Size=25mmX20.5mmX19.4mm. Pin Pitch=5mm. Parallel Distance=15.2mm. DIP transformer bobbin. UL REC:94V-0.

EE25 5+5 Pin Vertical Bobbin for Flyback Transformer

Good quality EE25 bobbin for transformer. EE25 phenolic transformer bobbin. Bobbin Size=25mmX20.5mmX19.4mm. Pin Pitch=5mm. Parallel Distance=15.2mm. DIP transformer bobbin. UL REC:94V-0.

Lead Free EE25 Vertical Transformer Bobbin Pin 5+8

EE25 flyback transformer bobbin 13pin. EE25 phenolic transformer bobbin. Bobbin Size=19.2mmX18mmX18.7mm. Pin Pitch=5mm. Parallel Distance=15.2mm. DIP transformer bobbin. UL REC:94V-0.

EE25 Vertical Transformer Bobbin 4+4 Pin Made of Phenolic

EE25 ferrite core bobbin 4+4 pin. EE25 phenolic material transformer bobbin. Bobbin Size=24.8mmX17.5mmX19.9mm. Pin Pitch=5mm. Parallel Distance=12.5mm. DIP transformer bobbin. UL REC:94V-0.

EE25 PCB Mounting Transformer Bobbin 5+5 Pin

EE25 ferrite core bobbin. Vertical EE25 bobbin pin 5+5. EE25 phenolic transformer bobbin. Bobbin Size=25mmX20.5mmX17.2mm. Pin Pitch=5mm. Parallel Distance=15.2mm. DIP transformer bobbin. UL REC:94V-0.

EE25 Audio Frequency Transformer Bobbin Pin 5+5

EE25 ferrite core bobbin. Vertical EE25 bobbin pin 5+5. EE25 phenolic transformer bobbin. Bobbin Size=25mmX20.5mmX17.2mm. Pin Pitch=5mm. Parallel Distance=15.2mm. DIP transformer bobbin. UL REC:94V-0.

EE25 Phenolic Transformer Bobbin for Ferrite Core

5+5 pin EE25 coil bobbins. Vertical EE25 transformer bobbin. EE25 phenolic transformer bobbin. Bobbin Size=25mmX20.5mmX19.4mm. Pin Pitch=5mm. Parallel Distance=15.2mm. DIP transformer bobbin. UL REC:94V-0.

Double Slots EE25 Horizontal Transformer Bobbin 2+2 Pin

Horizontal EE25 coil former pin 2+2. EE25 two slots transformer bobbin. EE25 phenolic transformer bobbin. Bobbin Size=20mmX18.5mmX22.4mm. Pin Pitch=14mm. Parallel Distance=15mm. DIP transformer bobbin. UL REC:94V-0.

EE25 Horizontal Double Slots 5+5 Pin Transformer Bobbin

EE25 double slot transformer bobbin pin 5+5. EE25 horizontal type transformer bobbin. Bobbin Size=25.mmX19.1mmX21.7mm. Pin Pitch=5mm. Parallel Distance=15.1mm. EE25 PBT transformer bobbin. DIP transformer bobbin. UL REC:94V-0.

EE25 Horizontal 5+5 Pin Single Slot Transformer Bobbin

Horizontal EE25 bobbin 5+5 pin. Single slot EE25 transformer bobbin. EE25 PET transformer bobbin. Parallel Distance=15.2mm. Pin Pitch=5mm. Size=25.7mmX19.1mmX21.7mm. DIP transformer bobbin. UL REC:94V-0.

EE25 Vertical Single Slot 4+4 Pin Electronic Transformer Bobbin

EE25 4+4 pin vertical bobbin. Bobbin Size=16.9mmX16.5mmX19.6mm. Pin Pitch=5mm. Parallel Distance=12mm. EE25 phenolic material transformer bobbin. DIP transformer bobbin. UL REC:94V-0.

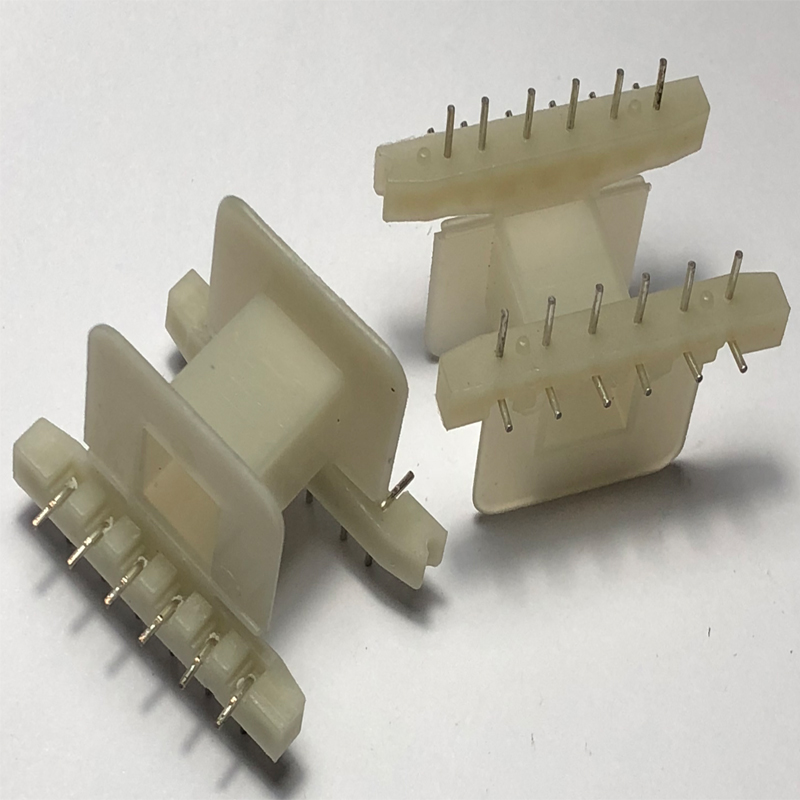

EE25 Vertical Transformer Bobbin 6+6 Pin Single Slot

6+6 pin EE25 vertical coil bobbin. Pin Pitch=4.5mm. Parallel Distance=20.7mm. Bobbin Size=27.3mmX27mmX18.8mm. EE25 PA66 material beige transformer bobbin. DIP transformer bobbin. UL REC:94V-0.

EE25 4+4 Pin Horizontal Single Slot Ferrite Core Bobbin

Single slot horizontal EE25 transformer bobbin. 4+4 pin EE25 transformer bobbin. Parallel Distance=20mm. Pin Pitch=5mm. Size=26.2mmX25mmX18.65mm. Phenolic material transformer bobbin. DIP transformer bobbin. UL REC:94V-0.

Horizontal EE25 Choke Coil Bobbin 8+7 Pin

EE25 8+7 pin horizontal transformer bobbin. EE25 single slot transformer bobbin. Parallel Distance=25.8mm. Pin Pitch=3.8mm. Size=31.5mmX25.8mmX20mm. Phenolic material transformer bobbin. DIP transformer bobbin. UL REC:94V-0.

EE25 Horizontal Three Slots Transformer Bobbin 5+6 Pin

EE25 double slot transformer bobbin pin 5+5. EE25 horizontal type transformer bobbin. Bobbin Size=25.mmX19.1mmX21.7mm. Pin Pitch=5mm. Parallel Distance=15.1mm. EE25 PBT transformer bobbin. DIP transformer bobbin. UL REC:94V-0.

EE25 Single Slot High Frequency Transformer Bobbin 4+4 Pin

4+4 pin horizontal EE25 transformer bobbin. Pin Pitch=5mm. Parallel Distance=24mm. Size=29.5mmX25mmX15.5mm. We can make bobbin tooling. Phenolic material transformer bobbin. DIP transformer bobbin. UL REC:94V-0.

EE25 Vertical Ferrite Core Transformer Bobbin 5+5 Pin

5+5 pin vertical EE25 bobbins. Single slot EE25 transformer bobbin. EE25 phenolic transformer bobbin. Pin Pitch=5mm. Parallel Distance=15.2mm. Bobbin Size=25mmX20mmX20.3mm. DIP transformer bobbin. UL REC:94V-0.

EE28 High Frequency Transformer Horizontal Bobbin 12 Pins

6+6 pin horizontal EE28 bobbin. EE28 ferrite core transformer bobbin. Bobbin Size=40.2mmX26.1mmX20.5mm. Pin Pitch=4.6mm. Parallel Distance=27.7mm. EE28 phenolic transformer bobbin. DIP transformer bobbin. UL REC:94V-0.

EE28 6+6 Pin Bobbin For High Frequency Transformer

EE28 bobbin four slots. 6+6 pin horizontal bobbin EE28. Bobbin Size=40.2mmX26.1mmX21.0mm. Pin Pitch=4.6mm. Parallel Distance=27.7mm. EE28 lead free transformer bobbin. DIP transformer bobbin. UL REC:94V-0.

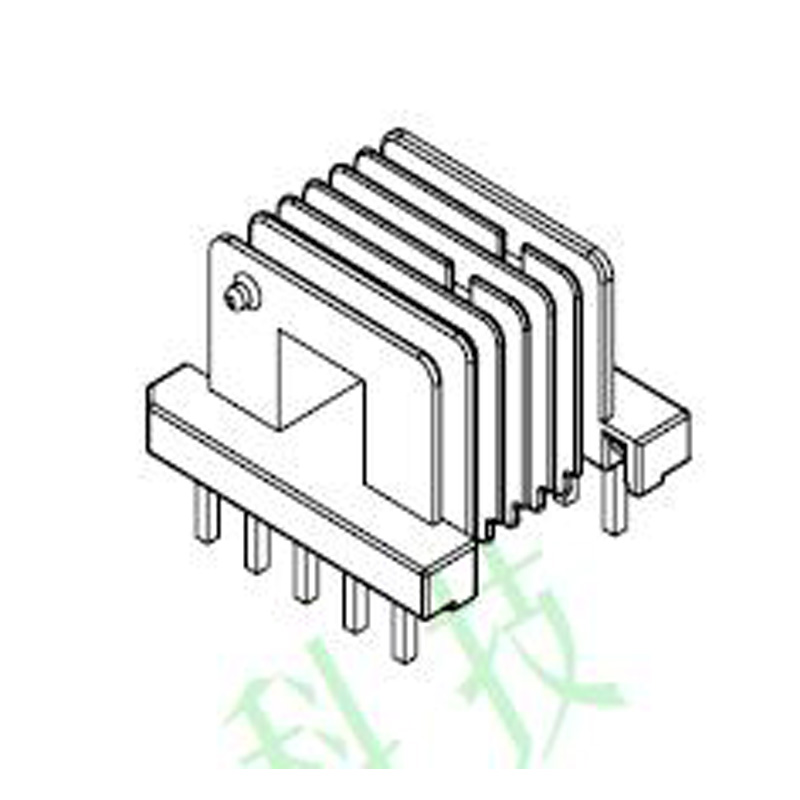

EE19 Horizontal Bobbin 5+4 Pin with Six Slots

EE19 soft ferrite core bobbin. 5+4 pins six slots transformer bobbin. Bobbin Size=17.9mmX16.2mmX11.4mm. Horizontal type winding bobbin. Parallel distance=12.8mm. Pin Pitch=3.0mm. LCP-4008 material coil bobbin.

Horizontal Bobbin For EE13 Transformer Pin 4+5

EE13 high frequency PCB transformer. 5+4 pin horizontal bobbin. Bobbin Size=19.5mmX13mmX9.4mm. Pin Pitch=2.73mm. Parallel distance=15.35mm. DIP transformer phenolic bobbin.

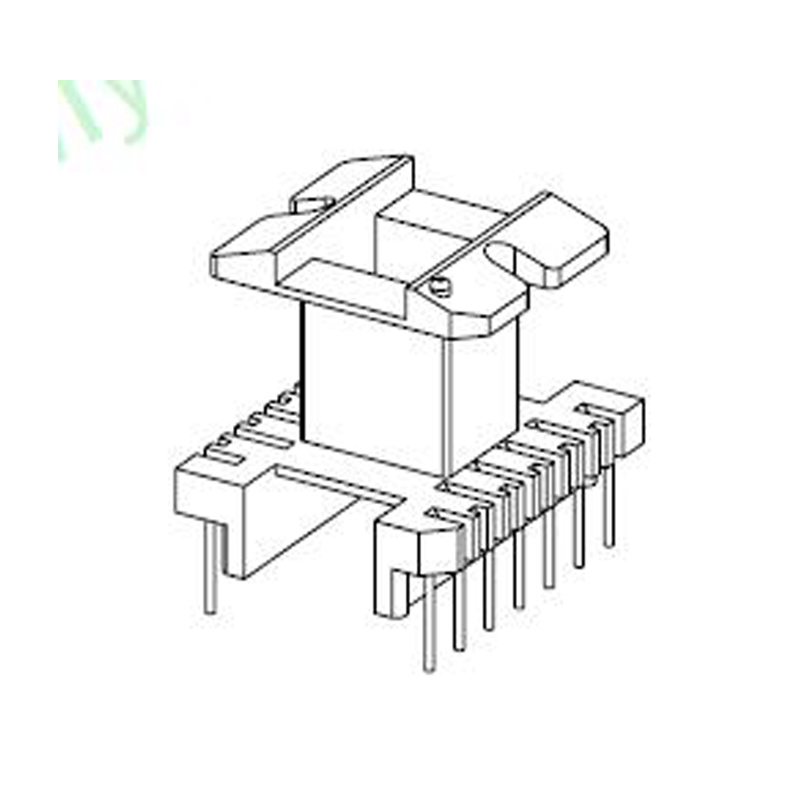

EE33 Ferrite Core 7+7 Pin Vertical Bobbin

EE33 coil former 7+7pin. Vertical EE33 transformer bobbin. Bobbin Size=33.8mmX27.5mmX27.2mm. Pin Pitch=5.0mm. Parallel distance=22.5mm. DIP transformer phenolic material bobbin.

EE33 High Power Ferrite Core Bobbin 14 Pins

Supply EE33 bobbin for PCB mounting transformer. Vertical type EE33 ferrite coil. Customized pins and transformer. Bobbin Size=34.0mmX28.0mmX26.8mm. Pin Pitch=5.0mm. Parallel distance=22.5mm. DIP transformer phenolic material bobbin.

Horizontal EE35 High Frequency Bobbin 6+6 Pin

EE35 ferrite coil for transformer. 6+6 pin horizontal bobbin EE35. Pin pitch=5.0mm. Parallel distance=21.4mm. L pin transformer bobbin. Bobbin Size=37.5mmX27.2mmX25.5mm. EE35 PET material bobbin.

Two Slots Transformer EE35 Bobbin 12 Pins

High frequency EE35 bobbin. Supply customized electronic transformer. 6+6 pin two slots bobbin. Parallel distance=21.4mm. Pin pitch=5.0mm. EE35 Bobbin Size=37.5mmX27.2mmX25.5mm. L pin transformer bobbin. EE35 PET material bobbin.

EE35 Ferrite Core Bobbin For LED Drive Transformer

Customize EE35 transformer. 5+5 pin vertical EE35 coil former. Parallel distance=20.0mm. Pin pitch=5.0mm. EE35 Bobbin Size=32.0mmX25.1mmX26.7mm. DIP pin transformer bobbin. EE35 Phenolic material bobbin.

EE19 Electronic Bobbin For PCB Mounting Transformer

EE19 horizontal coil bobbin. Double slots 5+5 pins transformer bobbin. Bobbin Size=19.0mmX16.7mmX15.2mm. Parallel distance=12.5mm. Pin Pitch1=3.8mm. Pin Pitch2=5.1mm. We can make bobbin tooling for customer.

High Voltage EE19 Transformer Horizontal Bobbin

EE19 power transformer bobbin. 4+4 pin horizontal coil former. Parallel distance=12.9mm. Pin Pitch=3.8mm. Bobbin Size=19.0mmX17.0mmX15.6mm. Nylon material transformer bobbin.
