jaminnartool: Press Brake Tooling Manufacturers, Press Brake Accessories Manufacturers

30 degree Amada style press brake punch

The punch size is 134*26*835mm, 30degree,standard sharp blade. the weight is 13.2kg/pcs and we can make 35degree,45degree or other degree according to your request.

Standard 835mm Segments Press Brake Tooling

This is standard press brake punch,usually the height is 65 and 67mm.the material is 42CrMo / C45 and we can make induction harden or all body heat treatment for customers. For the segments size, we can make it according to the customer's requirements. if no request , we will make 835mm standard segments size for you：100L,10,15,20,40,50,200,300,100R.

Reverse press brake gooseneck upper tool

The gooseneck punch size: 135*68*835mm, 85degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 135mm, the weight is 23.8kg. Can be made according to customer's request.

Amada Bending Thick Board Tool / metal bend tool

The straight blade size: 175*37*835mm, 60degree. the material is 42CrMo4, hardness is HRC47+/-3，the weight is 34.5kg. We can make induction harden or all body heat treatment for customers. For the segments size, we can make it according to the customer's requirements. if no request , we will make 835mm standard segments size for you,100L,10,15,20,40,50,200,300,100R.

1V die V63 press brake bottom die for Europe customer

V63 bend 8mm sheet metal plate, the single v die size:75*80*835mm, V63, 85 degree. the weight is 28.5kg. the material is 42CrMo4, hardness is HRC52-58. and it will be used with the die holder together.

Press brake self centering 2v dies with standard punch

The self centering 2V dies, the size is 46*50* 835mm, 88degree, the weight is 13kg. and we can make V5-V9, V8-V12, V12-V20, V16-V25 and other V opening according the bending thickness. Package: Multi plywood

Hydraulic press brake molds standard 2V dies

Hydraulic press brake molds standard 2V dies,V8-V12 for bending 1-1.5mm plate, the die size:26*55*835mm, 88degree, the weight is 9kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle, we can make it according to your bending request. Package: Multi plywood

Press brake single V die M60-85-32 with V32 and 85degree

V32 can bend 4mm sheet metal plate, the single V die size: 60*60*835mm, V32, 85degree. the weight is 21.5kg, and it can be segment. the material is 42CrMo4, hardness is HRC52-58.

Press brake single vee die 50mm 85degree H60mm M60-85-50 for sale

V50 bend 8mm sheet metal plate, the single V die size: 60*60*835mm, V50, 85degree, the weight is 19kg. the material is 42CrMo4, hardness is HRC52-58.

CNC Press Brake Bending Machine Sheet Metal Die

The V40 die for bending 6.25mm plate, the die size:60*60*835mm, 85degree. the weight is 20.4kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle and V opening, we can make it according to your bending request.

Matrix 1V die V80 press brake lower die with 85 degree

V80 for bending10mm plate, the die size:80*95*835mm, 85degree. the weight is 33.1kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle and V opening, we can make it according to your bending request.

V125 Press Brake Die Tools With 80degree For Sales In Finland Market

V125 bend 16mm sheet metal plate, the die size:103*154*835mm, 80degree, R15. the weight is 61.2kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle and V opening, we can make it according to your bending request.

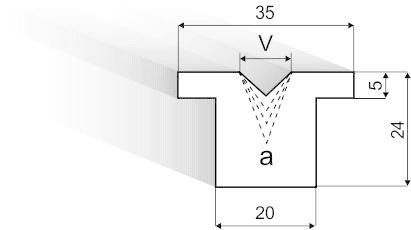

Press brake T-V die tools with 30degree

The T-V die size:120*60*835mm, V12, 30degree. the material is 42CrMo4, hardness is HRC52-58. 88°, 85°, 80°, 60°, 45°, 35°, 30°, 26° and V6, V8, V10, V16, V20, V25 can be made according to customer's request.

Press brake T-V die tools with 60degree

The T-V die size:120*60*835mm, V12, 60degree. the material is 42CrMo4, hardness is HRC52-58. 88°, 85°, 80°, 60°, 45°, 35°, 30°, 26° and V6, V8, V10, V16, V20, V25 can be made according to customer's request.

Press brake T-V die tools with 85degree

The T-V die size:120*60*835mm, V12, 85degree. the material is 42CrMo4, hardness is HRC52-58. 88°, 85°, 80°, 60°, 45°, 35°, 30°, 26° and V6, V8, V10, V16, V20, V25 can be made according to customer's request.

Standard CNC lower die section

There are many segments size , like 835mm seg(10,15,20,40,50,100,200,400), 805mm seg(100,370,10,15,20,40,50,200R), 795mm seg(100,250,20,25,30,35,40,45,50,200), 495mm seg(170,100,50,45,40,35,30,25) . If these segment size cannot meet your request, pls tell us you want. then we will make it for you. If you don't know how to choose the lower die for you workpiece, pls provide your punch size, machine model and so on. Material: 42CrMo / C45 Hardness: HRC47+/-3 Quench: Full body heat treatment Package: Multi plywood

European standard single V mold series Press Brake Dies

The T-V die size:80*60*835mm, V12, 30degree. the material is 42CrMo4, hardness is HRC52-58. 88°, 85°, 80°, 60°, 45°, 35°, 30°, 26° and V6, V8, V10, V16, V20, V25 (Can be customized according to customers' needs)

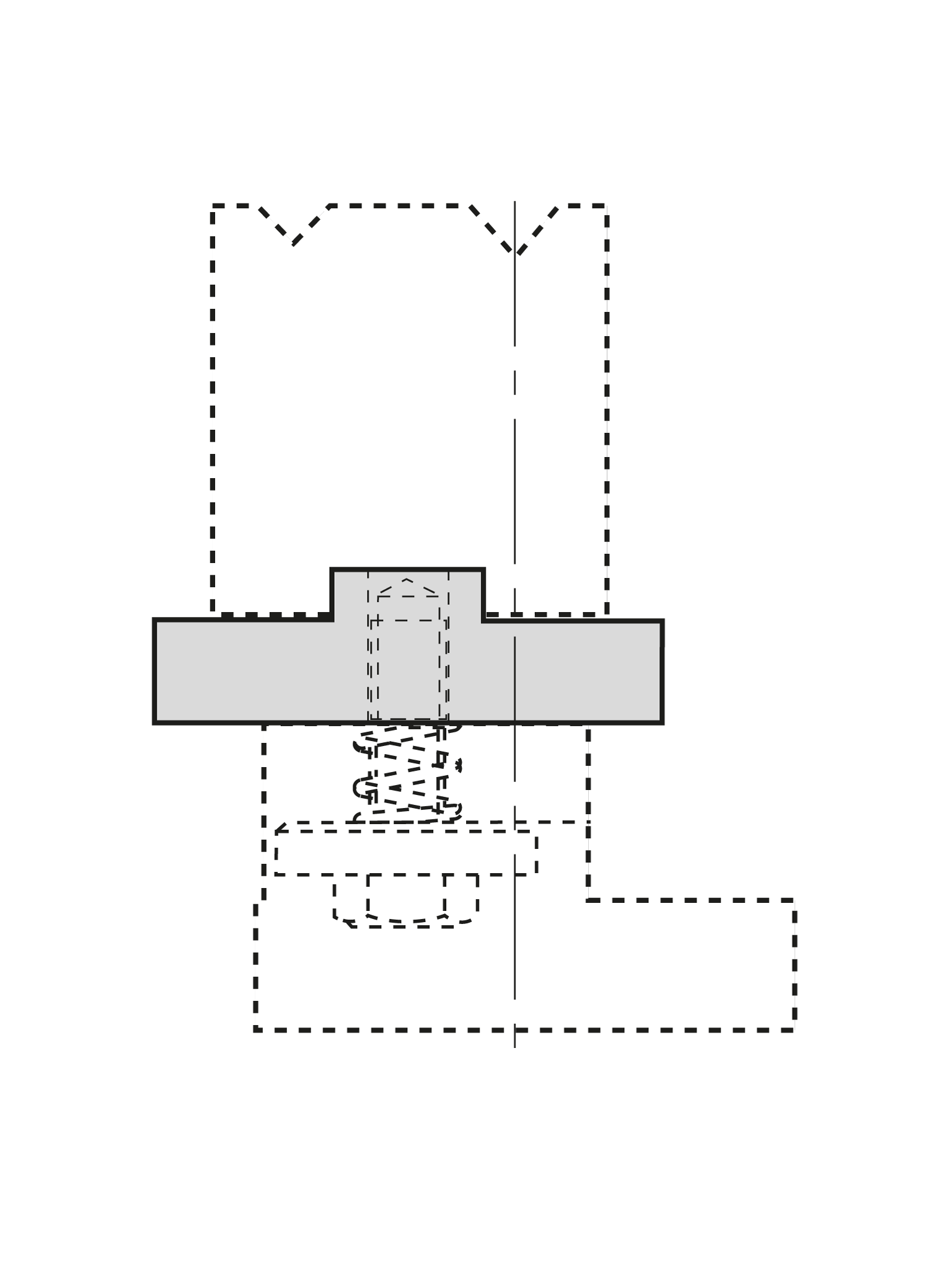

Same core 2V rail fixed standard dies, L - Die Resting Base

Size: H=39/55/75mm (Can be customized according to customers' needs) Material: 42CrMo / C45 Hardness: HRC44-50 Package: Multi plywood

Press brake 2v dies with 30degree

V8 and V12 bend 1-1.5mm sheet metal plate, the die size:46*50*835mm, V8-V12, 30degree. the weight is 13.2kg. the material is 42CrMo4, hardness is HRC47+/-3.

Press brake 2v dies M60-90-02 with 90degree

V8 and V12 bend 1-1.5mm sheet metal plate, the square die size:60*60*835mm, V8-V12, 90degree. the weight is 21kg. the material is 42CrMo4, hardness is HRC47+/-3.

Customized Hydraulic clamping for different machine type

The punch can be quickly installed and removed from this clamping tool, it reduce the worker's time. and we can make quick clamp tools, ordinary clamp tools and hydraulic clamping.

LVD Style Press Brake punch / bending tools H = 180mm

LVD press brake tooling is a matching tool designed specifically for LVD brand CNC bending machines. It has the characteristics of high precision, wear resistance, and strong adaptability, and is widely used in the field of sheet metal processing. We can customize comprehensive punch and dies, and European LVD tooling. This cnc punch press tooling includes punches, dies, adapters. It supports segmented, solid length, and half-length sizes. we have a wide range of LVD press brake punch and die selections. LVD tooling can deliver a quick, easy, and flexible job with advanced designs.

LVD Style Press Brake Lower Dies / bending tools H = 90mm

LVD press brake tooling is a matching tool designed specifically for LVD brand CNC bending machines. It has the characteristics of high precision, wear resistance, and strong adaptability, and is widely used in the field of sheet metal processing. We can customize comprehensive punch and dies, and European LVD tooling. This cnc punch press tooling includes punches, dies, adapters. It supports segmented, solid length, and half-length sizes. we have a wide range of LVD press brake punch and die selections. LVD tooling can deliver a quick, easy, and flexible job with advanced designs.

Press brake 4v dies with V16,V22,V35,V50

Standard 4v dies, V16,V22,V35,V50 with 85 degree and 88degree. the size is 60*60*835mm, material 42CrMo4 .the weight is 15.6kg. the material is 42CrMo4, hardness is HRC47+/-3.

Press brake rolla-v dies without scratch

Press brake rolla-v dies without scratch, it's best to put the film on the workpiece surface when you bend. and we will recoomend the suitable roll-v die size for you according to the plate you bend.

Offset Punch and Die Set / bending tools

Also known as Z bends or Joggles, the Offset punch and die set is able to make two bends at the same time. This is the solution for applications requiring materials to be joined together or when you need to make a second bend that will not interfere with the first bend.

Press Brake Hemming Dies With Spring For Flatten

Press brake hemming dies with spring for flatten, we can change the v opening according to the customer's bending thickness. Bending step: 1.bending angle first； 2.flatting.

Press brake wingbend dies Tension Spring Series Non-indentation Die for Press Brake

Press brake wingbend dies without scratch, it's best to put the film on the workpiece surface when you bend. and we will recoomend the suitable roll-v die size for you according to the plate you bend.

China Good Quality Gooseneck Press Brake Dies Tooling

The gooseneck punch size: 160*56*835mm, 85degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 130mm, the weight is 22.4kg. Can be made according to customer's request.

TRUMPF / Wila style press brake punch / bending tools

The punch size is 256*85*500mm, 86degree, the material is 42CrMo4, the weight is 33.5kg. Welcome to explore our quality press brake tooling and contact us for professional service!

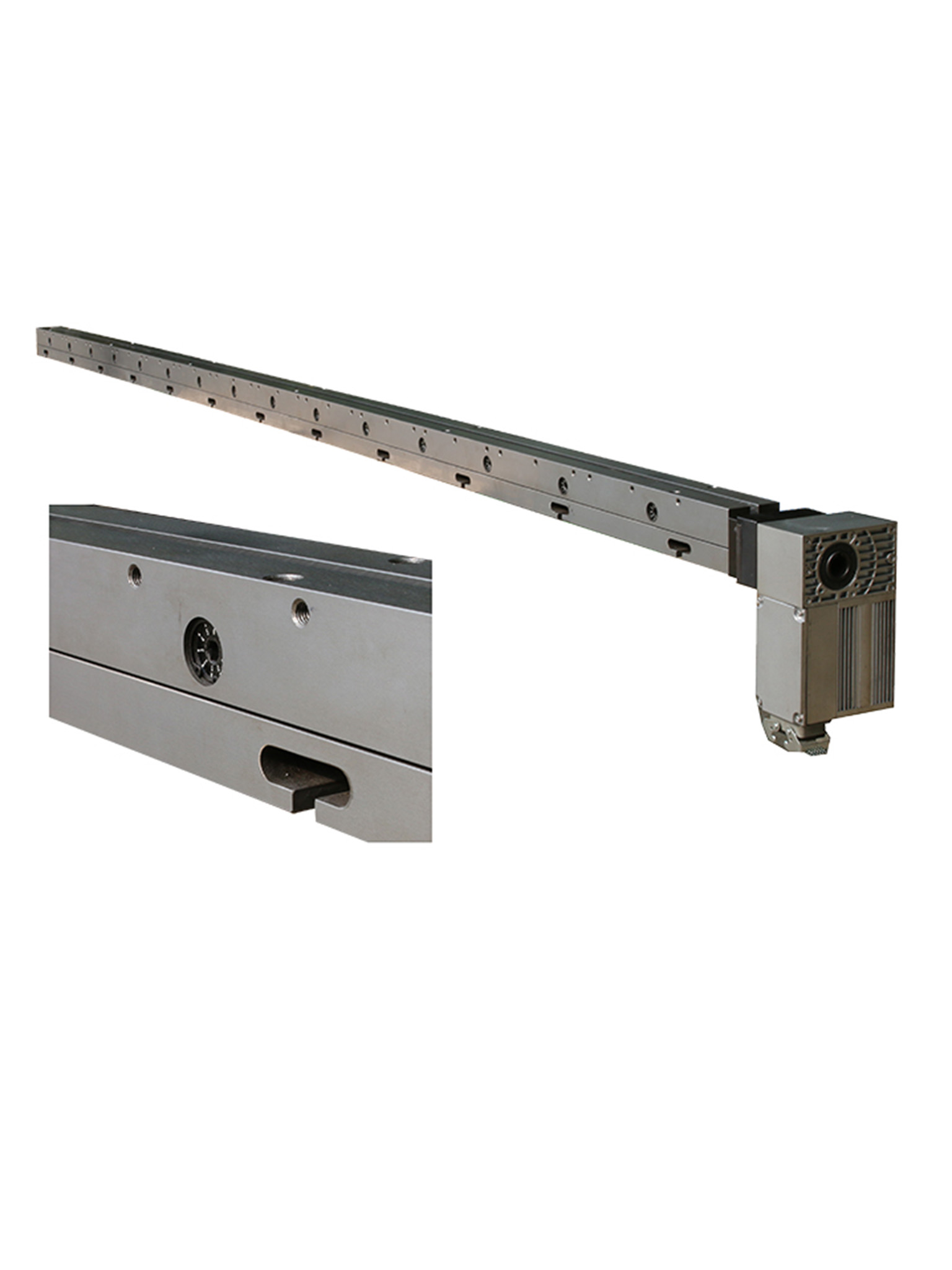

Drive with Motor for Crowning Table

The motor of the press brake crowing table is the core driving component of the mechanical compensation system, and its functions are: 1. Drive the compensation wedge block to achieve precise deflection compensation; 2. Improve compensation efficiency and stability; 3. Integrated intelligent control function.

Low Cost High Accuracy Bystronic-beyeler Compatible blades holder for Press Brakes H = 135mm

The punch size is 135*28*500mm, 85degree, the material is 42CrMo4, the weight is 7kg. Welcome to explore our quality press brake tooling and contact us for professional service!

Jaminnar Brand Press Brake Tool - Trade Promotion: Standard Model Forging Mould Clamp

The punch can be quickly installed and removed from this clamping tool, it reduce the worker's time. and we can make quick clamp tools, ordinary clamp tools and hydraulic clamping.

H13K Shearing Machine Cutting Blade Sheet Metal Guillotine Shear Blade

Shearing blades are the core component of the shearing machine, used on the shearing machine for cutting the sheet metal. There are blades for your reference: 1100*80*20mm, 1300*80*20mm, 1100*100*25mm, 1300*100*30mm, 3100*100*30mm and others. the blades material are: Cr12MoV 、H13K、H13、6CrW2Si、9CrSi，etc. hardness: HRC52-60.

Jaminnar Shear Blades for Cutting All Kinds of Sheet Metals

Shearing blades are the core component of the shearing machine, used on the shearing machine for cutting the sheet metal. There are blades for your reference: 1100*80*20mm, 1300*80*20mm, 1100*100*25mm, 1300*100*30mm, 3100*100*30mm and others. the blades material are: Cr12MoV 、H13K、H13、6CrW2Si、9CrSi，etc. hardness: HRC52-60.

Jaminnar Standard Type Punches LVD Gooseneck Punches, LVD Mold for Press Brake Machines

LVD press brake tooling is a matching tool designed specifically for LVD brand CNC bending machines. It has the characteristics of high precision, wear resistance, and strong adaptability, and is widely used in the field of sheet metal processing. We can customize comprehensive punch and dies, and European LVD tooling. This cnc punch press tooling includes punches, dies, adapters. It supports segmented, solid length, and half-length sizes. we have a wide range of LVD press brake punch and die selections. LVD tooling can deliver a quick, easy, and flexible job with advanced designs.

European Amada Press Brake Gooseneck Punch 115mm Tooling with Best Price and Quality

The gooseneck punch size: 115*45*835mm, 85degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 130mm, the weight is 12.8kg. Can be made according to customer's request.

Custom Punch & Die Solutions · R50 Radius Polyurethane (PU) Elastomer Die Set for CNC Press Brakes.

Polyurethane (PU) elastomer die set is a composite mold system that combines a metal frame and polyurethane elastomer. It can effectively absorb the impact force during sheet metal stamping or forming, reduce the wear of metal molds, and protect the surface of sheet metal parts from scratches.. for the angle and V opening, we can make it according to your bending request.

42CrMo Steel PU Elastomer Punch & Dies for Amada CNC Press Brake

Polyurethane (PU) elastomer die set is a composite mold system that combines a metal frame and polyurethane elastomer. It can effectively absorb the impact force during sheet metal stamping or forming, reduce the wear of metal molds, and protect the surface of sheet metal parts from scratches.. for the angle and V opening, we can make it according to your bending request.

Custom Precision Press Brake Dies OEM Sheet Metal Bending Solutions

The punch size: 110*26*835mm, 60degree. the material is 42CrMo4, hardness is HRC47+/-3, and height 110mm, the weight is 9kg. Can be made according to customer's request.
