7+7 Pins Horizontal Bobbin EF16 Transformer Bobbin

7+7 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.54mm Parallel Distance=12.54mm Size=19.7mmX17mmX13.5mm

EF16 Horizontal Transformer Phenolic Bobbin With 4+4 Pin

4+4 pins horizontal bobbin, high power transformer manufacture. Pin Pitch=3.8mm Parallel Distance=17.8mm. Bobbin Size=21.6mmX17.8mmX11.05mm. Phenolic material transformer bobbin,UL REC:94V-0

4+4 Pins EF16 Horizontal Transformer Bobbin For High Frequency Transformer

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3mm Parallel Distance=11mm Size=15mmX13mmX14.8mm

7+7 Pins EF35 High Frequency Transformer Bobbin for Magnetic Cores

7+7 pins horizontal EF35 transformer bobbin. Phenolic bobbin. DIP bobbin. Pin Pitch=4.5mm. Parallel Distance=29.1mm. Bobbin Size=40.8mmX34.4mmX22.3mm. UL REC:94V-0.

EF35 High Frequency Transformer Bobbin with 7+7 Pins

14 pins phenolic EF35 transformer bobbin. Horizontal bobbin. DIP bobbin. Pin Pitch=4.5mm. Parallel Distance=29.1mm. Bobbin Size=34.2mmX30mmX22.15mm. UL REC:94V-0.

EF35 Horizontal Transformer Bobbin for Electronic Transformers Inductors

7+7 Pins EF35 electronic transformer bobbin. DIP bobbin. PA66 bobbin. Pin Pitch=4.5mm. Parallel Distance=29.1mm. Bobbin Size=40.8mmX34.4mmX21.95mm(±0.20). UL REC:94V-0.

14 Pins EF35 Horizontal High Frequency Power Transformer Bobbins

Horizontal EF35 electronic transformer bobbin. 7+7 Pins bobbin. PA66 bobbin. Pin Pitch=4.5mm. Parallel Distance=29.1mm. Bobbin Size=34.2mmX30mmX21.95mm(±0.20). UL REC:94V-0.

EF35 Transformer Bobbins with 7+7 Pins Horizontal Bobbin

PA66 material EF35 electronic transformer bobbin. DIP bobbin. 7+7 Pins horizontal bobbin. Parallel Distance=29.1mm. Bobbin Size=34.2mmX30mmX21.95mm. Pin Pitch=4.5mm.

Horizontal EF35 Electronic Transformer Bobbin for Ferrite Cores 7+7 Pins

14 Pins EF35 electronic transformer bobbin. DIP bobbin. PA66 horizontal bobbin. Parallel Distance=29.1mm. Bobbin Size=40.2mmX30mmX21.95mm.

7+7 Pins EF35 High Frequency Transformer Bobbins for PCB Transformers

Low power loss EF35 electronic transformer bobbin. 7+7 Pins horizontal bobbin. Parallel Distance=29.1mm. Bobbin Size=40.6mmX30mmX21.95mm. DIP bobbin.

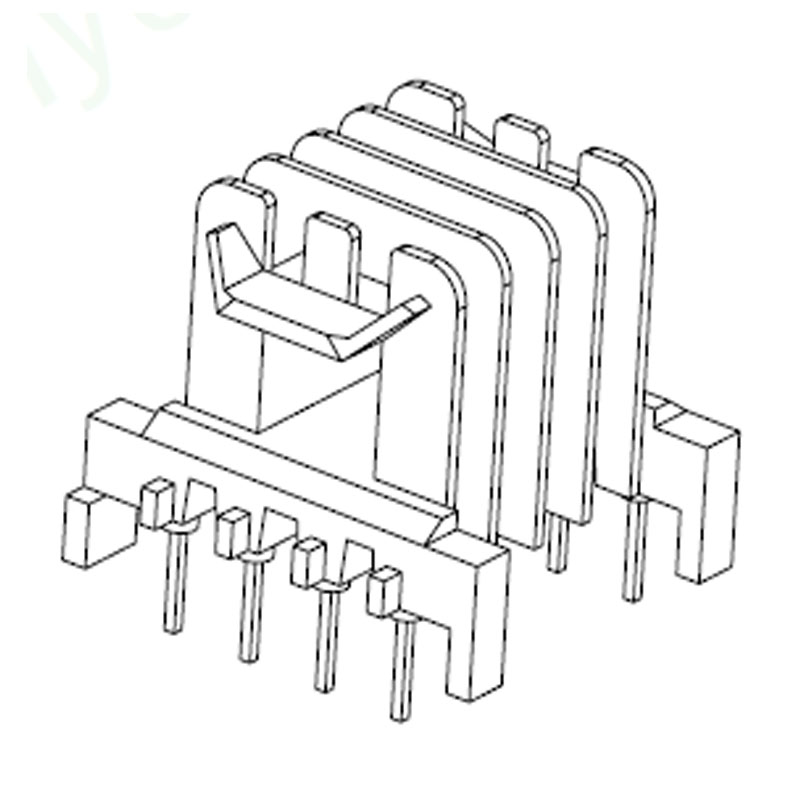

EF25 Four Slots​ High Frequency Transformer Bobbin 8 Pin

Multi section EF25 transformer bobbin. 4+4 Pins horizontal transformer bobbin. Parallel Distance=17.6mm. Pin pitch=5mm. Bobbin Size=25.4mmX25mmX20.4mm. DIP transformer bobbin.

EF25 Ferrite Core Transformer Bobbin 4+4Pin

EF25 single slot coil former. 4+4 Pins horizontal transformer bobbin. Parallel Distance=20mm. Pin pitch=5mm. Bobbin Size=26mmX25mmX18.5mm. DIP transformer bobbin.

EF25 4+4 Pins Horizontal Bobbin Made of Phenolic

4+4 Pins EF25 horizontal transformer bobbin. Parallel Distance=20mm. Pin pitch=5mm. Bobbin Size=26mmX25.1mmX18.5mm. DIP transformer bobbin.

EF25 Horizontal 4+4 Pins Ferrite Core Bobbin

Customized EF25 4+4 pin bobbin. Horizontal transformer bobbin. Bobbin Size=26mmX25.1mmX18.5mm. Parallel Distance=20mm. Pin pitch=5mm. We can make bobbin tooling. DIP transformer bobbin.

EF25 Horizontal High Frequency Bobbin 5+5 Pin

EF25 5+5 pin transformer bobbin. Horizontal transformer bobbin. Bobbin Size=27.8mmX25.1mmX18.5mm. Parallel Distance=20mm. Pin pitch=4mm. We can make bobbin tooling. DIP transformer bobbin.

EF25 Horizontal ​5+5 Pin Ferrite Core Inductor Bobbin

Single slot EF25 coil former. 5+5 pin transformer bobbin. Bobbin Size=27.8mmX25.1mmX18.5mm. Parallel Distance=20mm. Pin pitch=4mm. We can make bobbin tooling. DIP transformer bobbin.

High Performance Transformer Bobbin EF25 7+7 Pin Bobbin

EF25 7+7 pin transformer bobbin. Horizontal transformer bobbin. Bobbin Size=29.5mmX25.1mmX18.9mm. Parallel Distance=20.5mm. Pin pitch1=3mm. Pin pitch2=5mm. We can make bobbin tooling. DIP transformer bobbin.

High Frequency Coil Former EF25 5+5 Pins Bobbin

EF25 horizontal winding bobbin. 5+5 pins coil former. Bobbin Size=26.7mmX24.5mmX20.1mm. Parallel Distance=20mm. Pin pitch=5mm. We can make bobbin tooling. DIP transformer bobbin.

PCB Mounting EF25 Horizontal Bobbin with 5+5 Pins

EF25 PCB transformer bobbin. 5+5 pins winding bobbin. Bobbin Size=27.8mmX27.2mmX20.5mm. Parallel Distance=20.5mm. Pin pitch=5mm. We can make bobbin tooling. DIP transformer bobbin.

EF25 Four Slots​ Horizontal Transformer Bobbin With 4+4 Pins

4+4 Pins EF25 coil former. Multi section horizontal EF25 transformer bobbin. Parallel Distance=20mm. Pin pitch=5mm. Bobbin Size=25.7mmX25.6mmX20.5mm. DIP transformer bobbin.

EF25 Horizontal Bobbin for High Voltage Transformer

EF25 single slot 4+4 pins transformer bobbin. Horizontal type transformer bobbin. Parallel Distance=20mm. Pin pitch=5mm. Bobbin Size=25.7mmX25.6mmX20.5mm. DIP transformer bobbin.

EF25 Horizontal Bobbin for PC40 Ferrite Core

EF25 single slot 4+4 pins transformer bobbin. Horizontal type transformer bobbin. Parallel Distance=20mm. Pin pitch=5mm. Bobbin Size=25.7mmX25.6mmX20.5mm. DIP transformer bobbin.

EF25 Horizontal Double Slots Transformer Bobbin 4+4 Pins

Double slots EF25 coil bobbin. 4+4 pins horizontal EF25 transformer bobbin. Bobbin Size=26mmX25.4mmX21.4mm. Parallel Distance=20mm. Pin pitch=5mm. Nylon and PET material bobbin. DIP transformer bobbin.

EF20 High Frequency Horizontal Ferrite Core Bobbin

EF20 horizontal type coil bobbin. 4+4 pins EF20 transformer bobbin. Bobbin Size=20.7mmX20.6mmX13.95mm. Parallel Distance=15mm. Pin pitch=5mm. Nylon and PET material bobbin. DIP transformer bobbin.

EF20 Two Slots Horizontal 4+4 Pins Transformer Bobbin

EF20 double slots transformer bobbin. 4+4 pins EF20 horizontal transformer bobbin. Bobbin Size=20.7mmX20.6mmX13.95mm. Parallel Distance=15mm. Pin pitch=5mm. Nylon and PET material bobbin. DIP transformer bobbin.

EF20 Transformer Bobbin 5+5 Pins Horizontal Bobbin

EF20 10Pin electronic transformer bobbin. Horizontal EF20 transformer bobbin. Bobbin Size=20mmX20mmX16.4mm. Parallel Distance=15.3mm. Pin pitch=3.8mm. Phenolic material EF20 bobbin. DIP transformer bobbin.

EF20 High Power Transformer Horizontal​ Bobbin

EF20 transformer bobbin factory. Horizontal EF20 transformer bobbin. Bobbin Size=20mmX20mmX16mm. Parallel Distance=15mm. Pin pitch=5mm. Phenolic material EF20 bobbin. DIP transformer bobbin.

EF20 High Frequency Horizontal Bobbin With 4+4 Pins

4+4 pins EF20 bobbin supplier. Horizontal type EF20 transformer bobbin. Bobbin Size=21mmX20mmX15.6mm. Parallel Distance=15mm. Pin pitch=5mm. Phenolic material EF20 bobbin. DIP transformer bobbin.

EF20 Horizontal Bobbin 5+5 Pins For Ferrite Core

EF20 5+5 pins horizontal bobbin. Single slot EF20 transformer bobbin. Bobbin Size=21mmX20mmX15.7mm. Parallel Distance=15.2mm. Pin pitch=4mm. Phenolic material EF20 bobbin. DIP transformer bobbin.

EF20 Ferrite Core Bobbin 5+5 Pins Horizontal Bobbin

Horizontal EF20 bobbin 5+5 pins. Single slot EF20 transformer bobbin. Bobbin Size=22mmX21.5mmX16.6mm. Parallel Distance=15.2mm. Pin pitch=3.8mm. Phenolic material EF20 bobbin. DIP transformer bobbin.

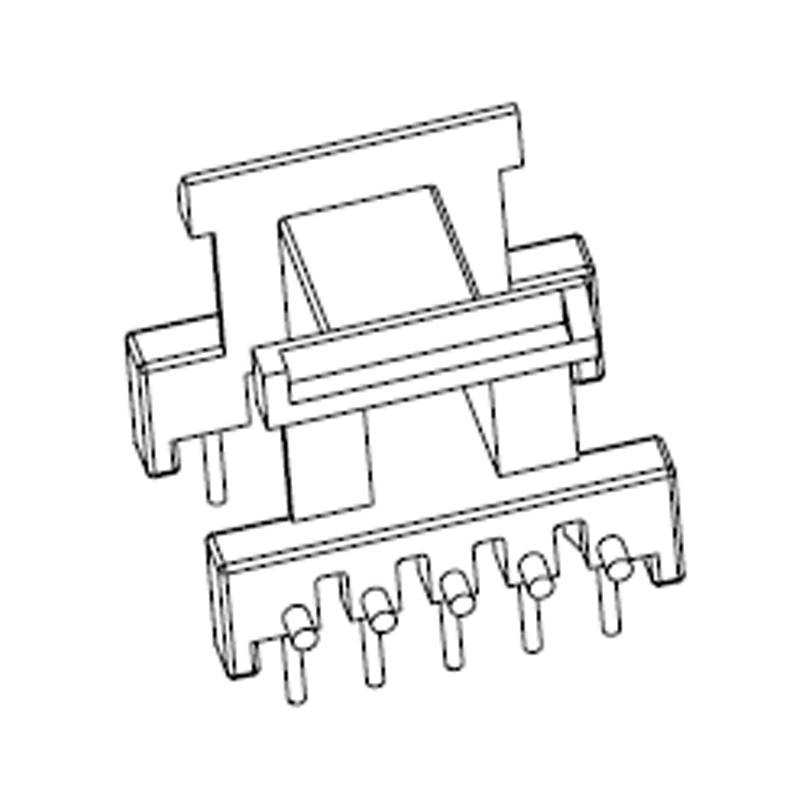

EF20 Vertical Bobbin for High Voltage Transformer

5+5 pins vertical EF20 bobbin. Single slot EF20 transformer bobbin. Bobbin Size=22.2mmX13.6mmX21.5mm. Parallel Distance=9.8mm. Pin pitch=3.8mm. Phenolic material EF20 bobbin. DIP transformer bobbin.

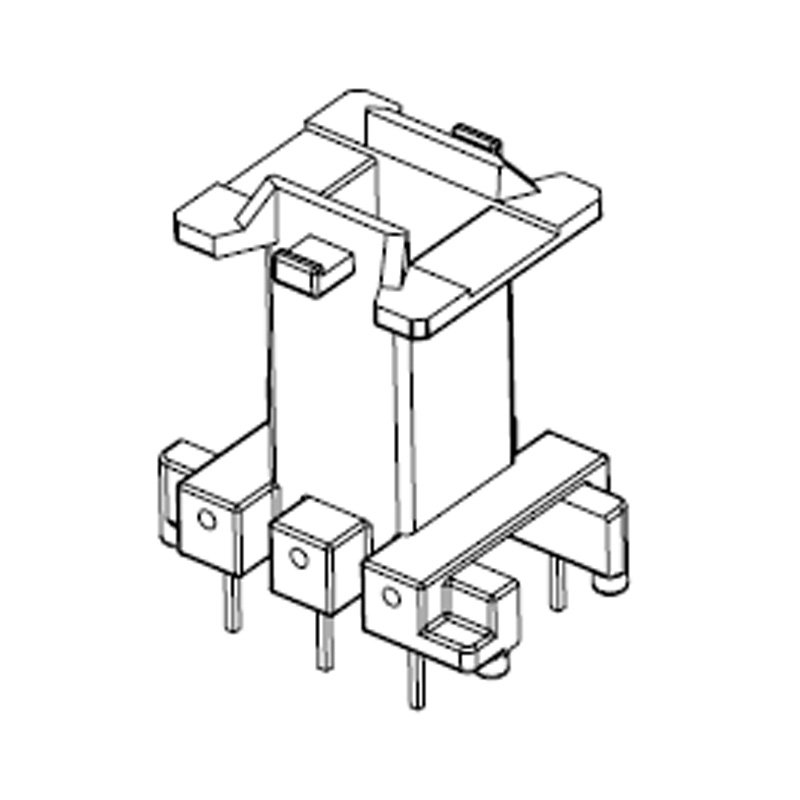

EF20 3+3 Pins Vertical Transformer Bobbin for Ferrite Core

3+3 pin vertical EF20 bobbin. Single slot EF20 transformer bobbin. Bobbin Size=18.8mmX13.1mmX20.1mm. Parallel Distance=9.8mm. Pin pitch=5.1mm. Phenolic material EF20 bobbin. DIP transformer bobbin.

EF20 High Frequency Transformer Horizontal Coil Bobbin

Horizontal bobbin 5+5 pins EF20. EF20 single slot transformer bobbin. Bobbin Size=23.6mmX23mmX17.2mm. Parallel Distance=15mm. Pin pitch=3.8mm. PBT material EF20 bobbin. DIP transformer bobbin.

EF20 5+5 Pins High Voltage Transformer Bobbin

EF20 horizontal type bobbin 5+5 pin. EF20 single slot transformer bobbin. Bobbin Size=21.8mmX21.2mmX16.5mm. Parallel Distance=15.4mm. Pin pitch=3.8mm. PBT material EF20 bobbin. DIP transformer bobbin.

Double Slots EF20 Horizontal Bobbin with 5+5 Pins

Two slots EF20 horizontal bobbin. 5+5 pins EF20 electronic transformer bobbin. Bobbin Size=22mmX18.2mmX14.6mm. Parallel Distance=15.24mm. Pin pitch=3.81mm. PET material EF20 bobbin. DIP transformer bobbin.
