RF Hybrid High Frequency 4 Layer 8mil RO4003C FR-4 PCB

RO4003C exhibit a stable dielectric constant over a broad frequency range. This makes it an ideal substrate for broadband applications. And signal integrity performance improvement over the stack-ups with all FR4 board.

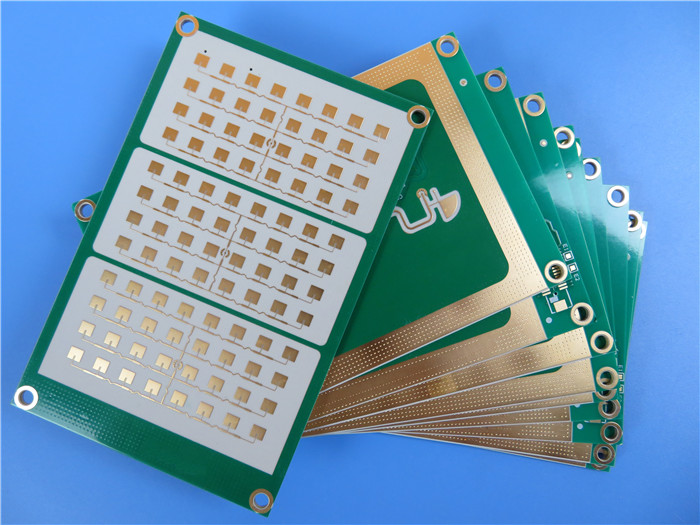

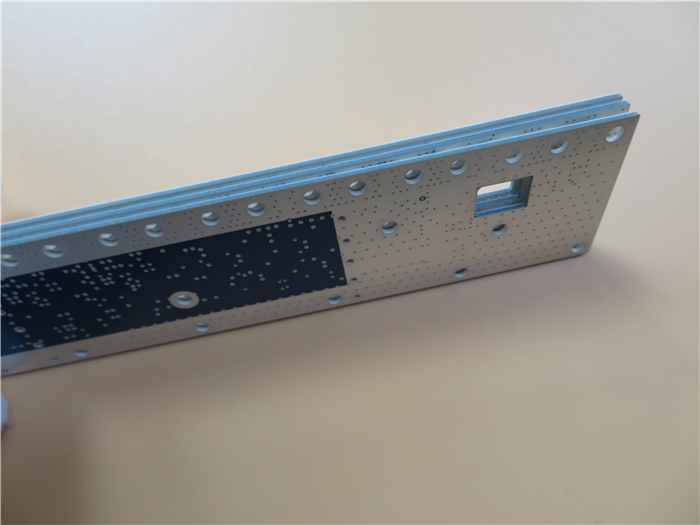

Hybrid Microwave Circuit Boards PCB RO4350B and RT/Duroid 5880

The hybrid PCB can be a mixture of FR-4 and high frequency material, and a mixture of high frequency material with different dielectric constant (DK)

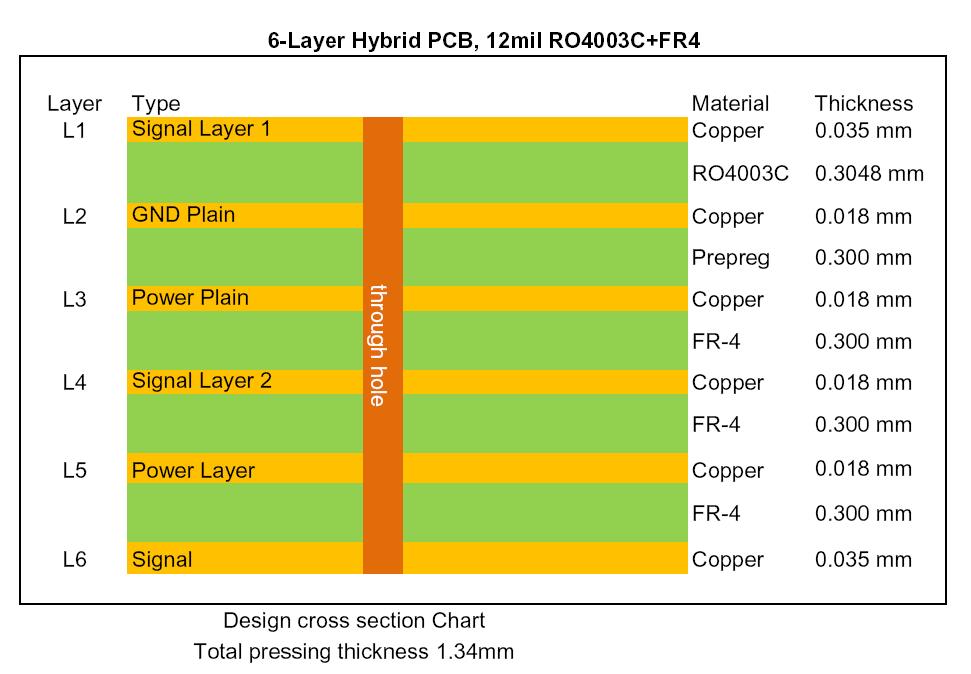

Hybrid High Frequency Multilayer PCB 6-Layer 12mil RO4003C and FR-4

The 12mil core is on the top layer and it mainly plays the roles of signal layer. The core has fixed thickness which is very important to the electrical length of RF lines on the circuit board.

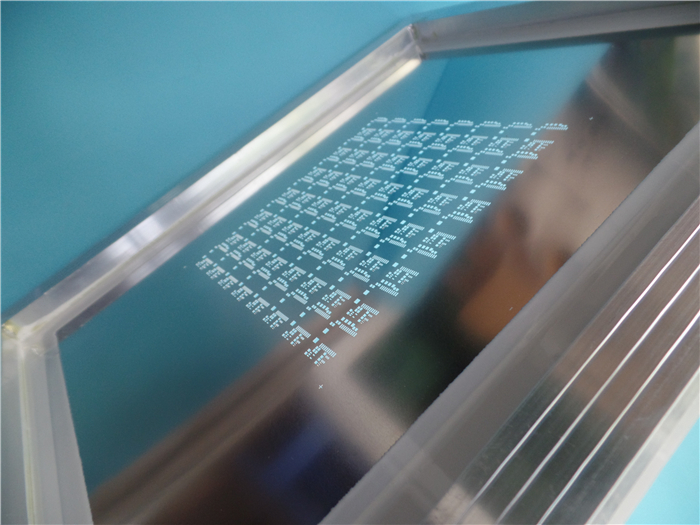

Aluminum Screen Printing Framed SMT Laser Cut PCB Stencil

SMT stencil in our house, framed or frameless are 100% laser cut. The thickness of stainless steel foil ranges from 0.05mm to 0.4mm, with size 300mm x 300mm to 600mm x 600mm.

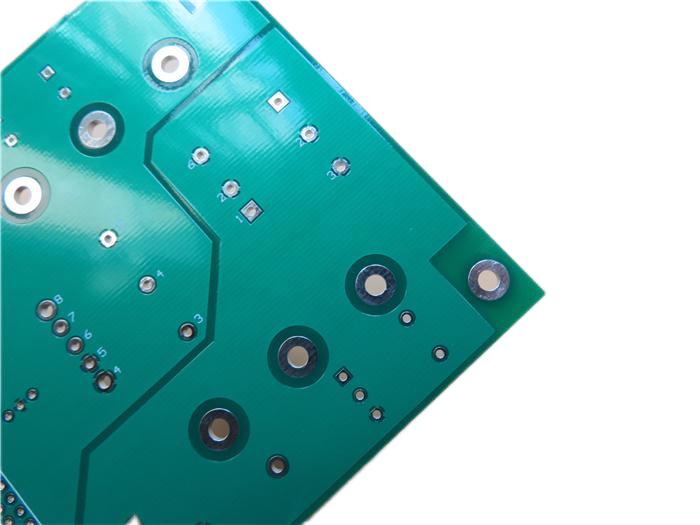

High CTI 600V PCB 2.0mm FR-4 With HASL and Countersunk Holes

This is a type of single sided circuit board built on FR-4 substrate with CTI 600V.

Thin PCB 0.2mm FR-4 Printed Circuit Board with White Solder Mask OSP

It’s a very simple board with white solder mask and OSP on pads.

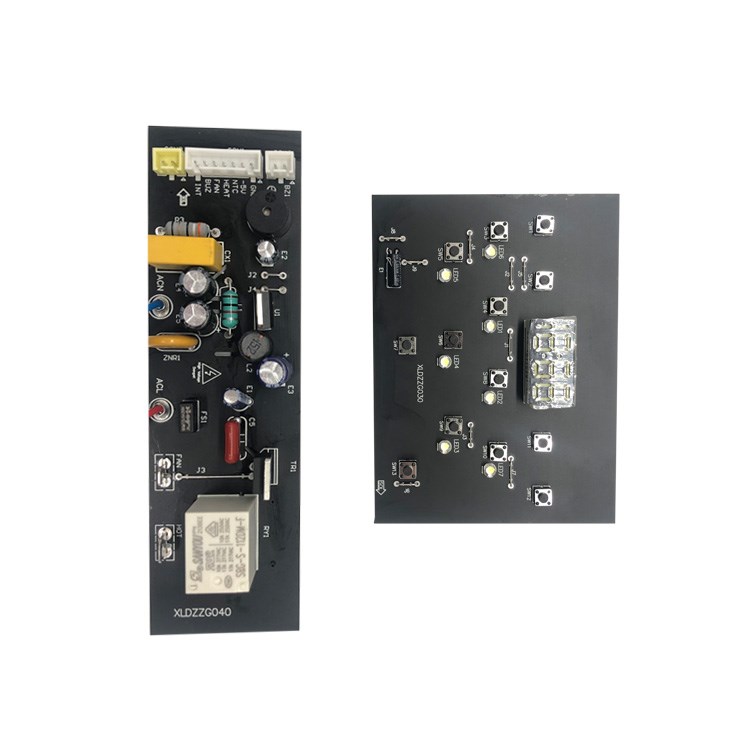

Air Fryer PCBA Manufacturer

High Quality Controller Advanced EMS PCBA Circuit Board Assembly Smart Electronics Controller Air Fryer

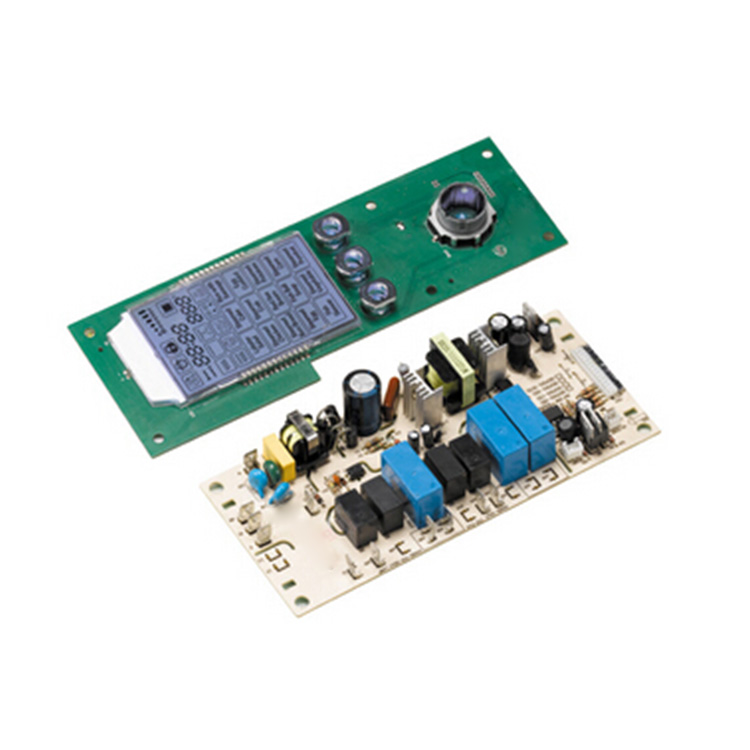

Printed Circuit Boards For Ovens

PCB Board High Quality PCBA Design Oven Control Board PCBA OEM & ODM Custom Processing And Design Service Provider.

Professional PCB Manufacturer Ups Power PCB Board Design Custom Printed Circuit Board

AC DC Power PCB Assembly , Multilayer Power PCB Assembly , Multilayer UPS Battery Circuit Board

Battery Charger Car Charger Cell Phone Charger PCB Manufacturer Board

Dual USB 18650 Battery Charger PCB Power Module Electronic prototype PCB assembly design services for PCB manufacturers

Blind Via PCB Built on Tg150℃ FR-4 With Immersion Gold 4-Layer

This is a type of multilayer PCB built on FR-4 substrate with Tg 150°C for the application of mobile phone with blind via technology.

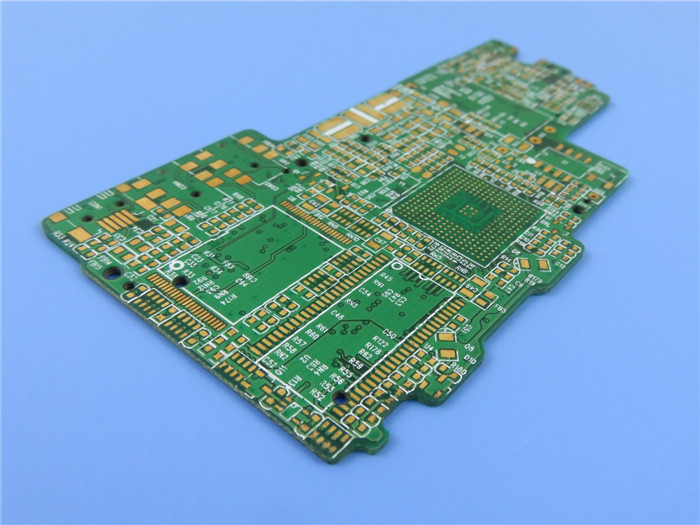

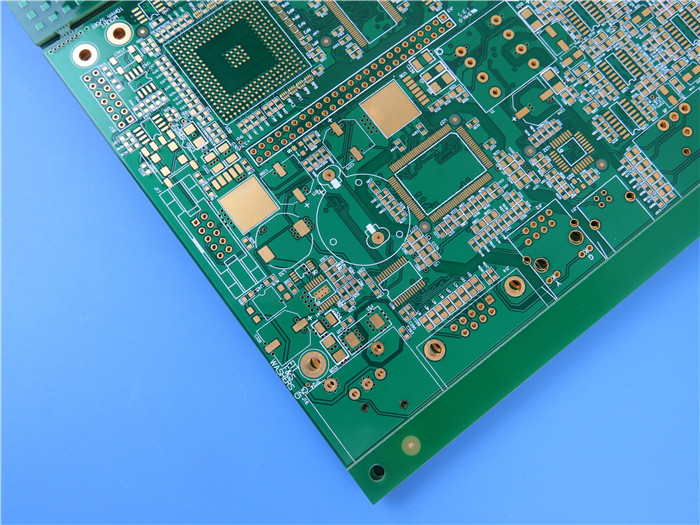

Impedance Controlled 12 Layers High Tg HDI Multilayer FR-4 PCB Board

This is a type of impedance controlled PCB built on FR-4 material with Tg 175°C for the application of Signal transmission.

Low Dk / Df FR-4 High Thermal Reliability Printed Circuit Board TU-872 Multilayer PCB

TU-872 SLK Sp is based on a high performance modified epoxy FR-4 resin. This material is reinforced with novel woven glass and designed with extra low dielectric constant and low dissipation factor for high speed low loss and high frequency circuit board application.

High Tg Printed Circuit Board Made on IT-180ATC with Immersion Gold Double Sided PCB

This is a type of standard double sided high temperature PCB which is built on ITEQ’s IT-180ATC laminate.

Edge Castellated PCB Half Holes Circuit Boards 1.6mm FR-4 With Blue Solder Mask

This is a type of multi-layer PCB built on FR-4 substrate with Tg 135°C for the application of digital receivers.

Keypad PCB Hard Gold Circuit Board Tg170 FR-4 With Green Solder Mask

This is a type of double sided circuit board built on FR-4 substrate with Tg 170°C for the application of keypad.

Heavy Copper PCB High Power Circuit Board Built On FR-4 With 3 Oz Copper

This is a type of heavy copper PCB built on FR-4 substrate with Tg 135°C for the application of UPS systems.

Thick Printed Circuit Board 3.0mm Double Sided PCB FR-4 With Immersion Gold

This is a type of 3.0mm thick PCB built on double sided FR-4 substrate with Tg 150°C for the application of data acquisition.

Thick 2.4mm Circuit Board Dual Layer PCB Built on FR-4 With 2oz Copper

This is a type of 2 oz double sided PCB built on FR-4 substrate with Tg 150°C for the application of micro SATA carrier board.

Thin Printed Circuit Board 0.6mm Double Sided PCB on FR-4 with HASL Lead Free

This is a type of 2 layers printed circuit board built on FR-4 substrate with Tg 135°C for the application of switch sensor.

Multi-layer 0.5mm 4-Layer Thin PCB Board With Immersion Gold

This is a type of 4-layer thin PCB board built on FR-4 substrate with Tg 135°C for the application of GPS Tracker.
